Tool Holders / T-System External Turning Toolholders

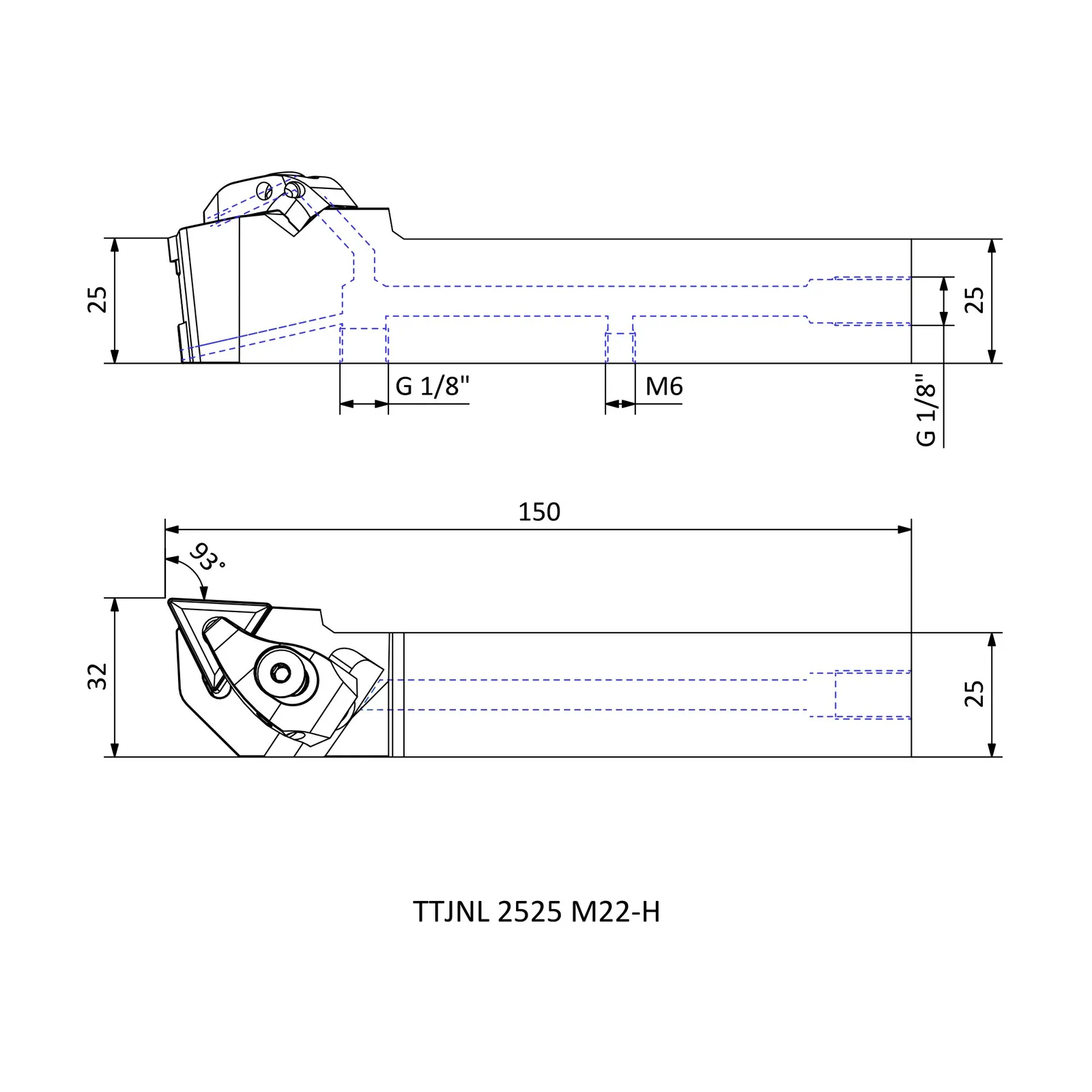

TTJNL 2525 M22-H
TTJNR/L-H series · see all 8 sizes
Insert compatibility
This size is built for the insert designation TNM. 2204 (as listed in the catalogue data).
Specifications — TTJNL 2525 M22-H
| Insert Code | Insert designation | TNM. 2204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in TTJNR/L-H
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TTJNL 2525 M16-H | L | 150 | 32 | 25 |
| TTJNR 2525 M16-H | R | 150 | 32 | 25 |
| TTJNL 3232 P16-H | L | 170 | 32 | 32 |
| TTJNR 3232 P16-H | R | 170 | 32 | 32 |
| TTJNL 2525 M22-H | L | 150 | 40 | 25 |
| TTJNR 2525 M22-H | R | 150 | 40 | 25 |
| TTJNL 3232 P22-H | L | 170 | 40 | 32 |
| TTJNR 3232 P22-H | R | 170 | 40 | 32 |
