Tool Holders / T-System External Turning Toolholders

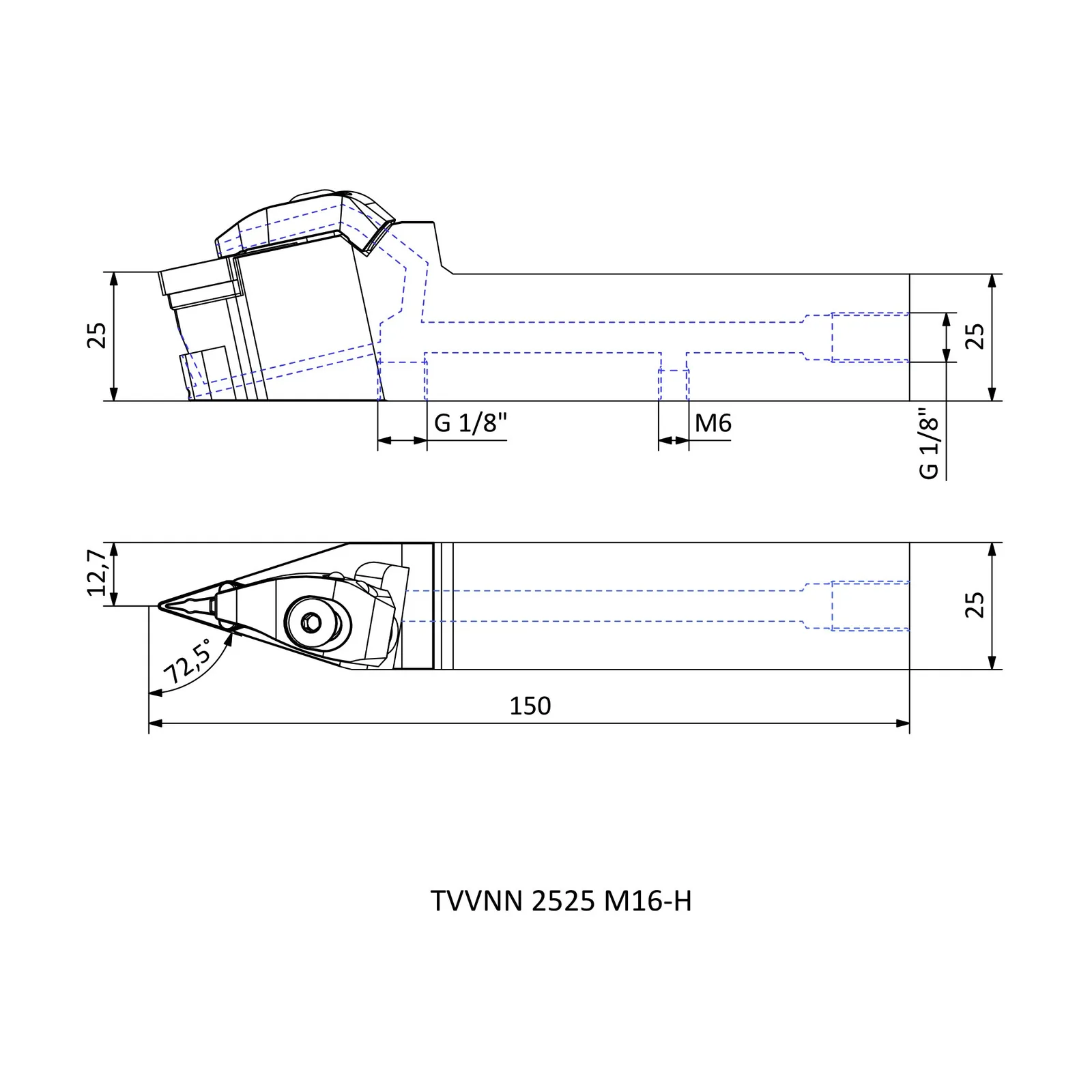

TVVNN 2525 M16-H
TVVNN-H series · see all 2 sizes
Insert compatibility
This size is built for the insert designation VNM. 1604 (as listed in the catalogue data).
Specifications — TVVNN 2525 M16-H
| Insert Code | Insert designation | VNM. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 12.7 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in TVVNN-H
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| TVVNN 2020 K16-H | N | 125 | 10 | 20 |
| TVVNN 2525 M16-H | N | 150 | 12.7 | 25 |
