Tool Holders / T-System External Turning Toolholders

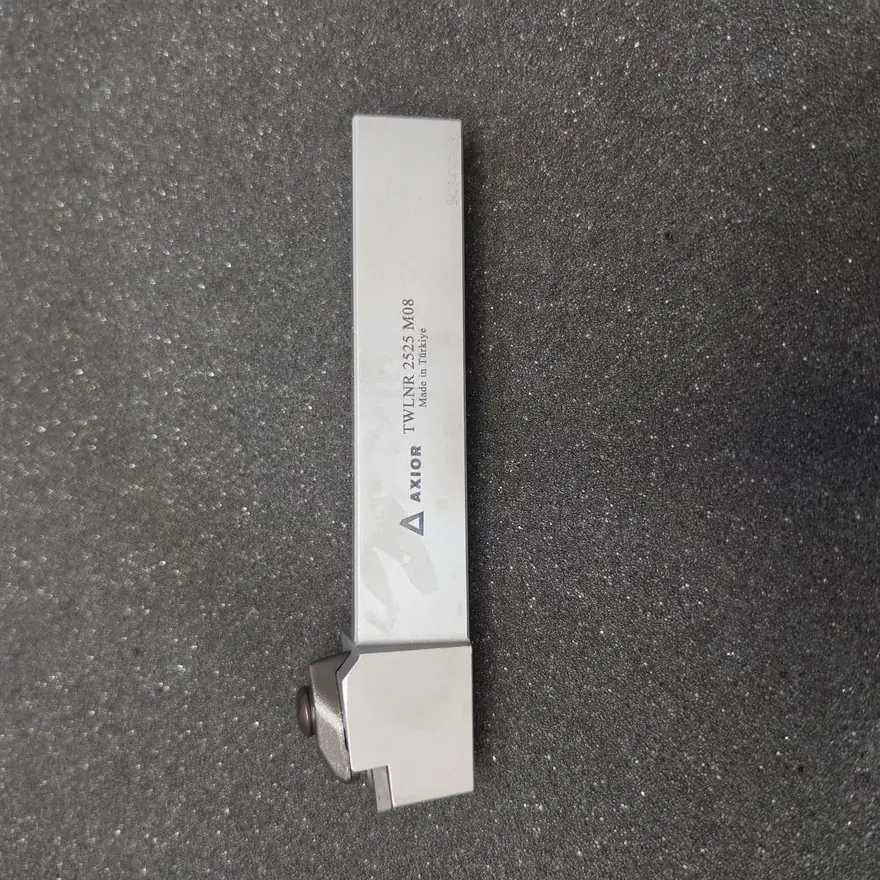

TWLNR 2525 M08
TWLNR/L series · see all 16 sizes
Insert compatibility
This size is built for the insert designation WNM. 0804 (as listed in the catalogue data).

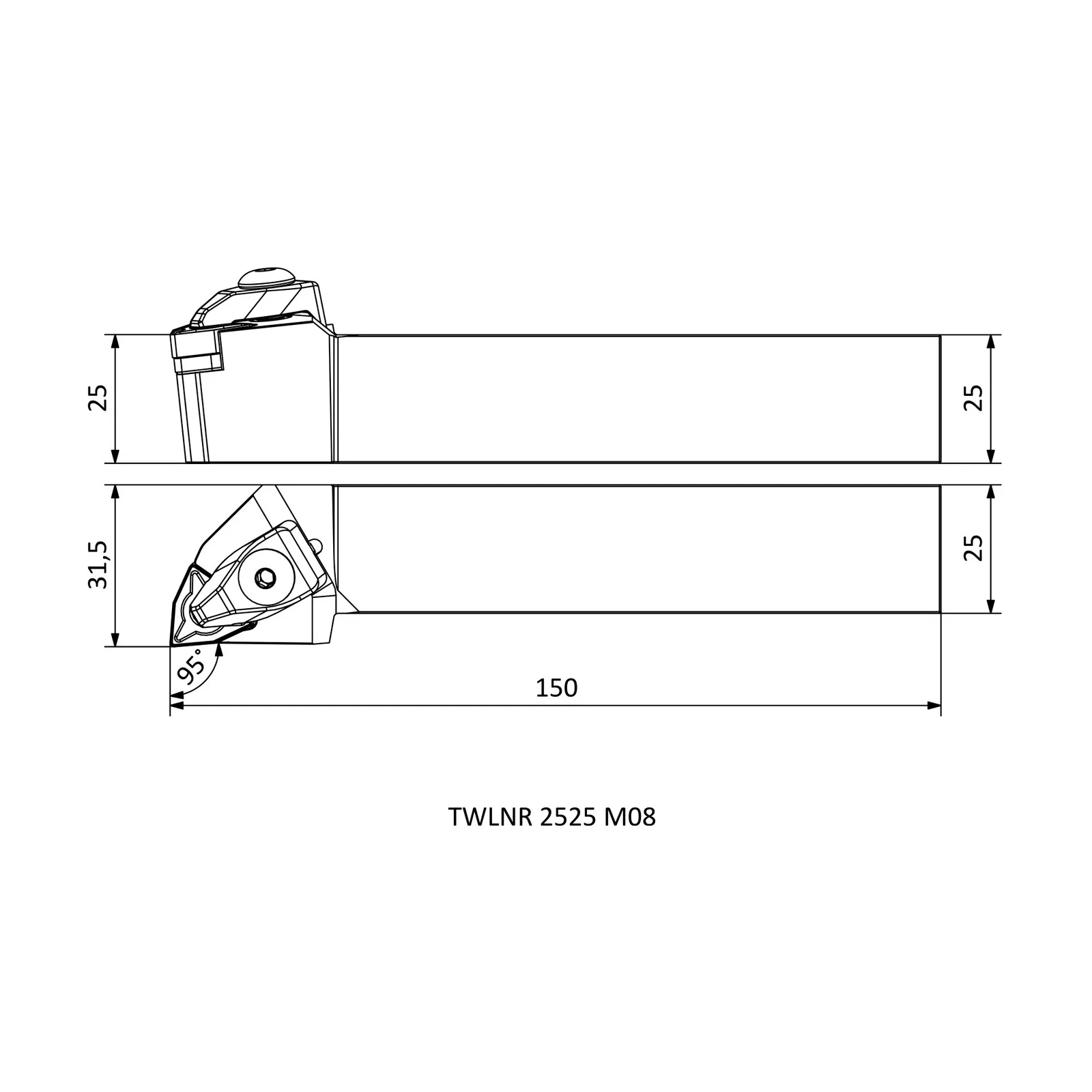

Specifications — TWLNR 2525 M08
| Insert Code | Insert designation | WNM. 0804.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 16 sizes in TWLNR/L
