Tool Holders / Thread Milling Tools
ATM-3EI-D14-W20-L90-Z01-H
ATM-3BEI series · see all 3 sizes
Insert compatibility
This size is built for the insert designation 3EI (as listed in the catalogue data).

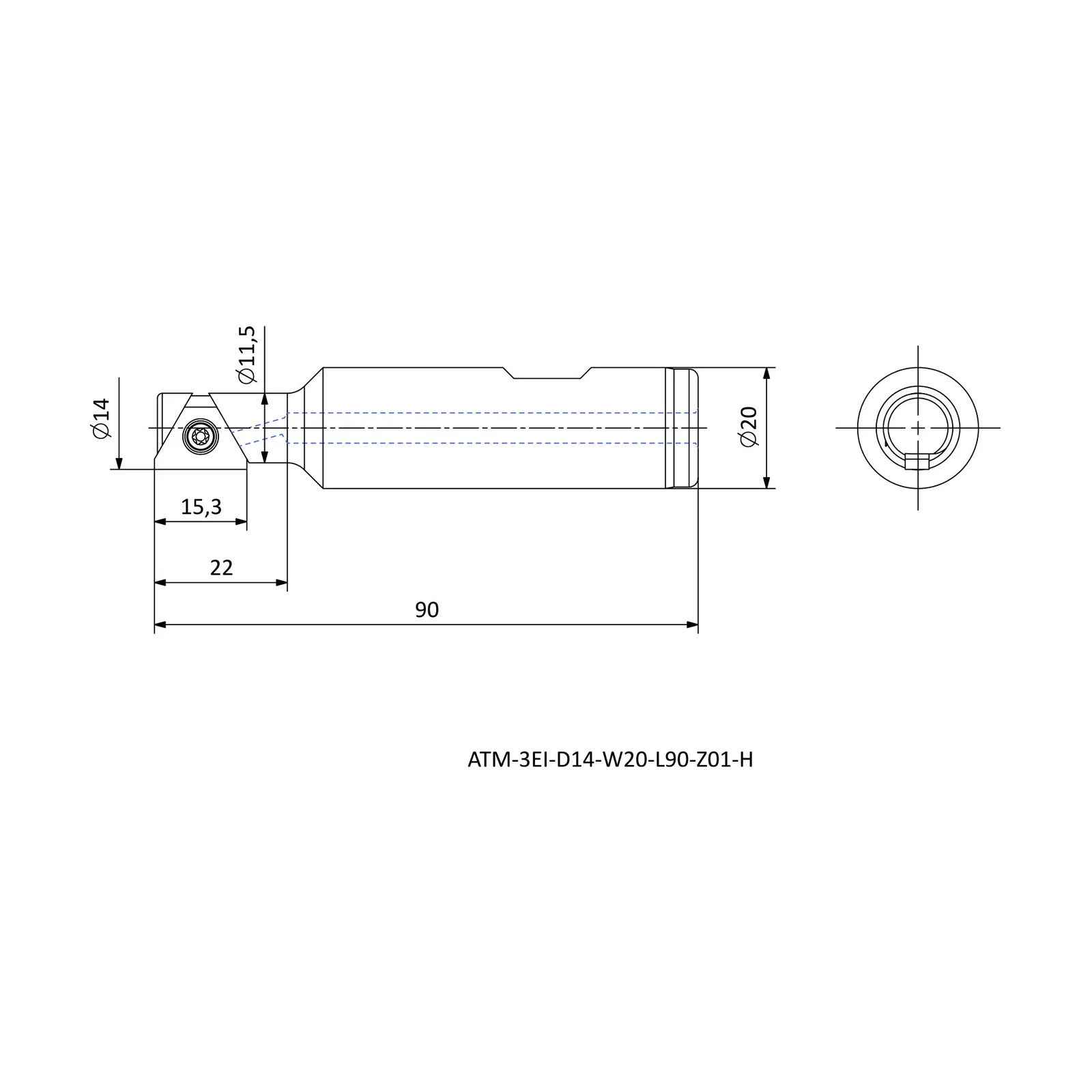

Specifications — ATM-3EI-D14-W20-L90-Z01-H
| Insert Code | Insert designation | 3EI |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 14 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 90 |
| LH | Head length (mm) | 22 |
| ZEFP | Effective cutting edges | 1 |
| APMX | Depth of cut, maximum (mm) | 15.3 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in ATM-3BEI
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| ATM-3BEI-D21-W25-L100-Z01-H | R | 21 | 25 | 100 |
| ATM-3EI-D14-W20-L90-Z01-H | R | 14 | 20 | 90 |
| ATM-3EI-D20-W25-L120-Z01-H | R | 20 | 25 | 120 |
