Tool Holders / Thread Milling Tools
ATM-H32-D32-C32-L130-Z05-H
ATM-H series · see all 2 sizes
Insert compatibility
This size is built for the insert designation H 32 (as listed in the catalogue data).

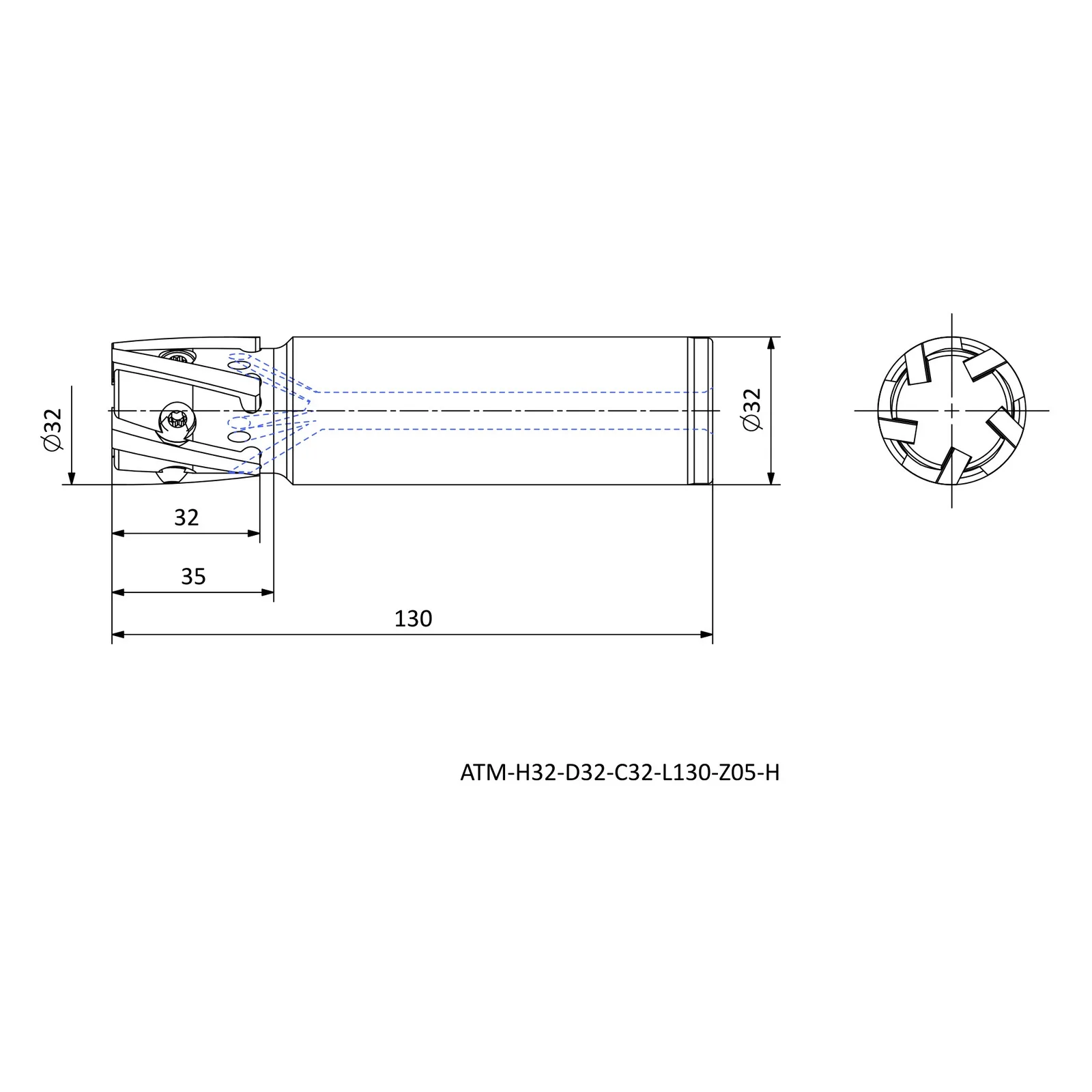

Specifications — ATM-H32-D32-C32-L130-Z05-H
| Insert Code | Insert designation | H32 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 130 |
| LH | Head length (mm) | 35 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in ATM-H
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| ATM-H23-D23-C25-L100-Z02-H | R | 23 | 25 | 100 |
| ATM-H32-D32-C32-L130-Z05-H | R | 32 | 32 | 130 |
