Tool Holders / Thread Milling Tools

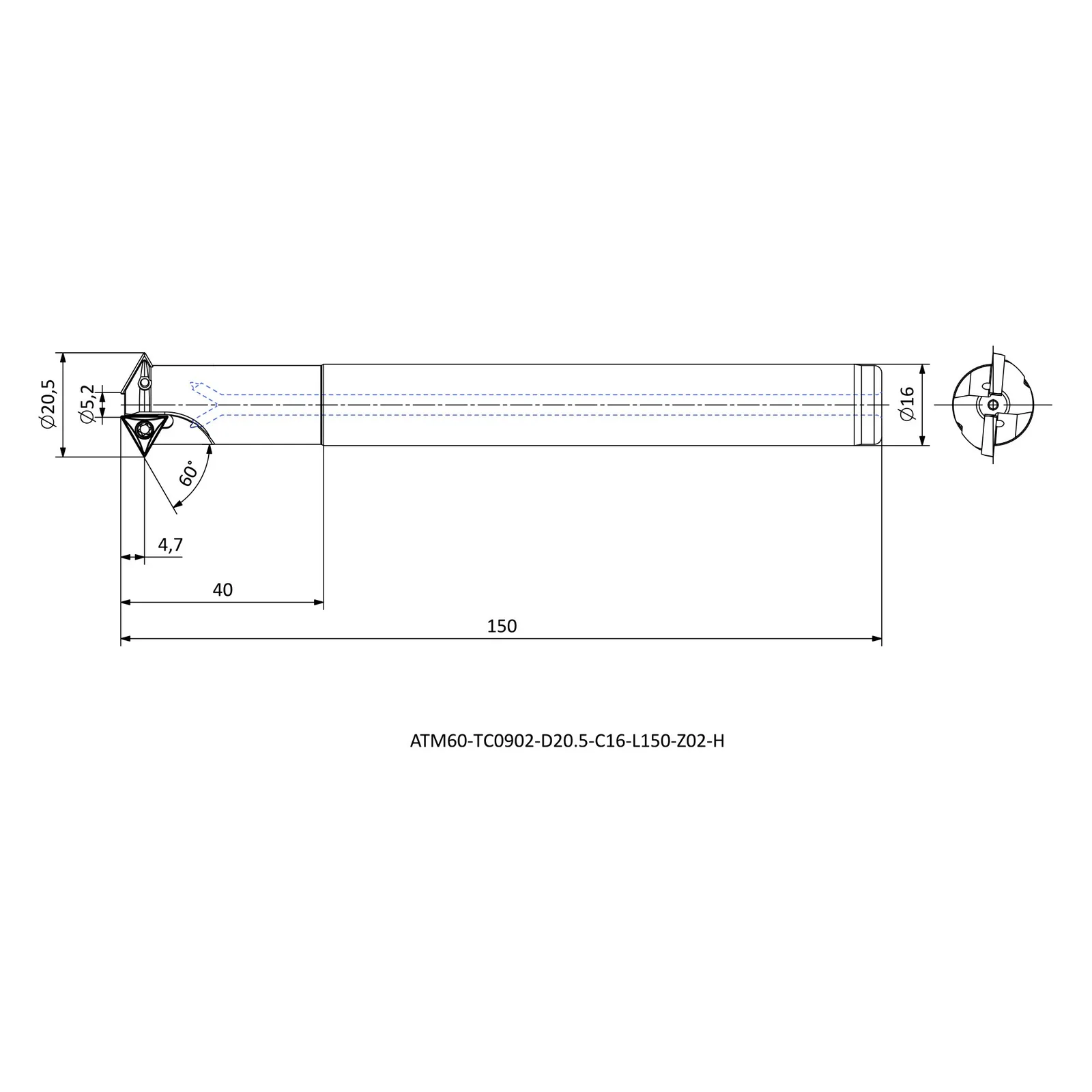

ATM60-TC0902-D20.5-C16-L150-Z02-H
ATM60 series · see all 5 sizes
Insert compatibility
This size is built for the insert designation TC.T 090202 (as listed in the catalogue data).
Specifications — ATM60-TC0902-D20.5-C16-L150-Z02-H
| Insert Code | Insert designation | TC.T 090202 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 5.2 |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 150 |
| KAPR | Tool cutting edge angle (deg) | 60 |
| DCX | Maximum diameter (mm) | 20.5 |
| LH | Head length (mm) | 40 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 4.7 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in ATM60
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| ATM60-TB0601-D13-C10-L150-Z02-H | R | 2.5 | 10 | 150 |
| ATM60-TC0902-D20.5-C16-L150-Z02-H | R | 5.2 | 16 | 150 |
| ATM60-TC1102-D26-C20-L150-Z03-H | R | 8.3 | 20 | 150 |
| ATM60-TC16T3-D32-C25-L150-Z02-H | R | 6.4 | 25 | 150 |
| ATM60-TC16T3-D40-C32-L250-Z03-H | R | 13.7 | 32 | 250 |
