Rotating Tools / DIN ISO 7388-1 (SK DIN 69871) / SK Collet Chucks ER

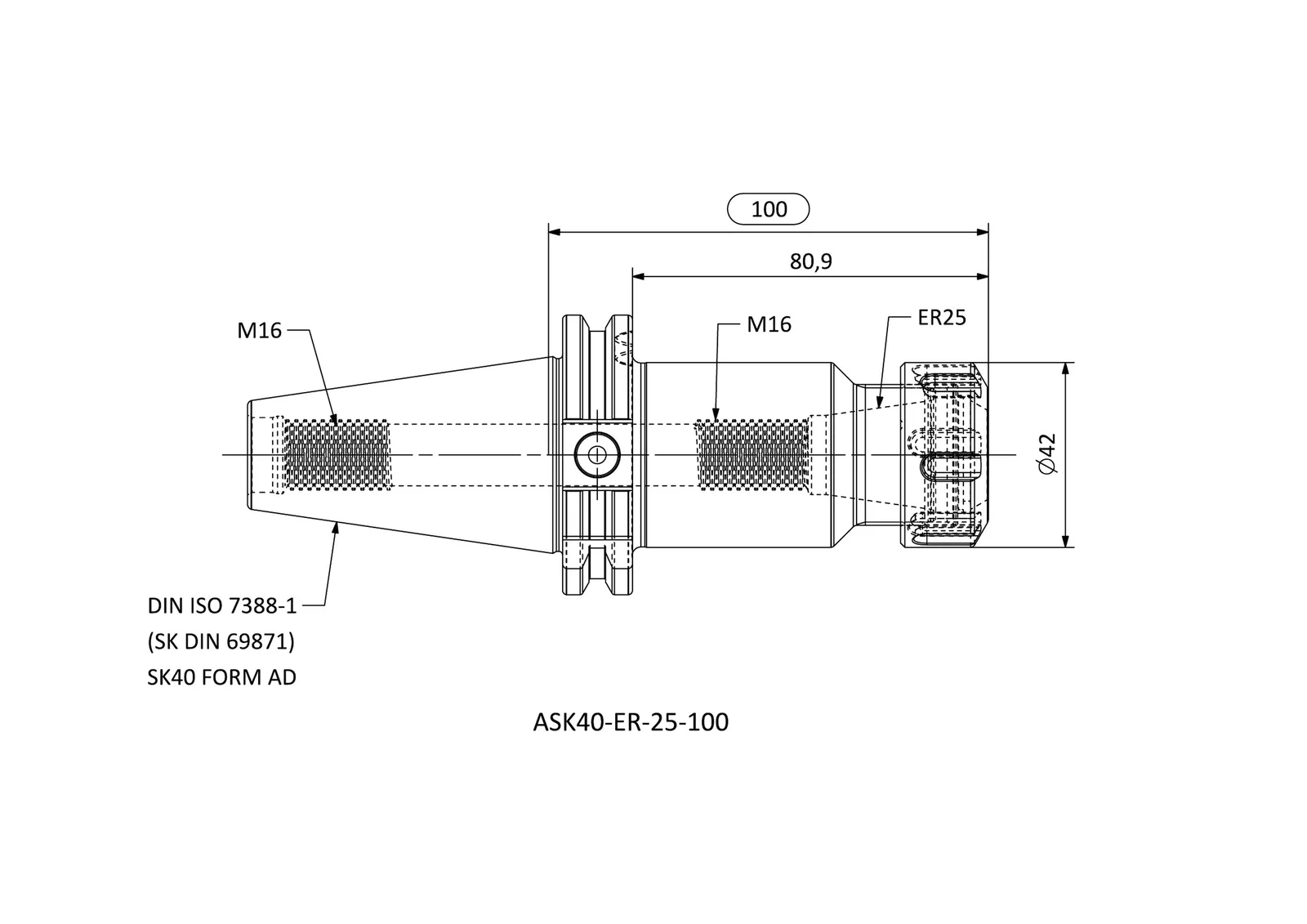

ASK40-ER-25-100
ASK-ER series · see all 9 sizes
Specifications — ASK40-ER-25-100
| SS | Spindle / taper size | 40 |
|---|---|---|
| CRKS | Clamping / retention thread | M16 |
| BD | Bore diameter (mm) | 42 |
| LB | Body length (mm) | 80.9 |
| CSI | CSI | ER25 |
| DCONNWS | Connection diameter, neck, workpiece side (mm) | 1 |
| DCONXWS | Connection diameter, max, workpiece side (mm) | 16 |
| LPR | Protruding / projection length (mm) | 100 |
| THID | Thread inside diameter (mm) | M16 |
| KG | Weight (kg) | 1.42 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in ASK-ER
| Product code | Spindle / taper size | Clamping / retention thread | Bore diameter (mm) | Body length (mm) |
|---|---|---|---|---|
| ASK40-ER-16-063 | 40 | M16 | 28 | 43.9 |
| ASK40-ER-25-060 | 40 | M16 | 42 | 40.9 |
| ASK40-ER-25-100 | 40 | M16 | 42 | 80.9 |
| ASK40-ER-32-070 | 40 | M16 | 50 | 50.9 |
| ASK40-ER-32-100 | 40 | M16 | 50 | 80.9 |
| ASK40-ER-32-160 | 40 | M16 | 50 | 140.9 |
| ASK40-ER-40-080 | 40 | M16 | 63 | 60.9 |
| ASK40-ER-40-100 | 40 | M16 | 63 | 80.9 |
| ASK40-ER-40-160 | 40 | M16 | 63 | 140.9 |
