Rotating Tools / ISO 12164-1 / HSK End Mill Holder

AHSKA40-EM-12-070

AHSK-EM series · see all 36 sizes

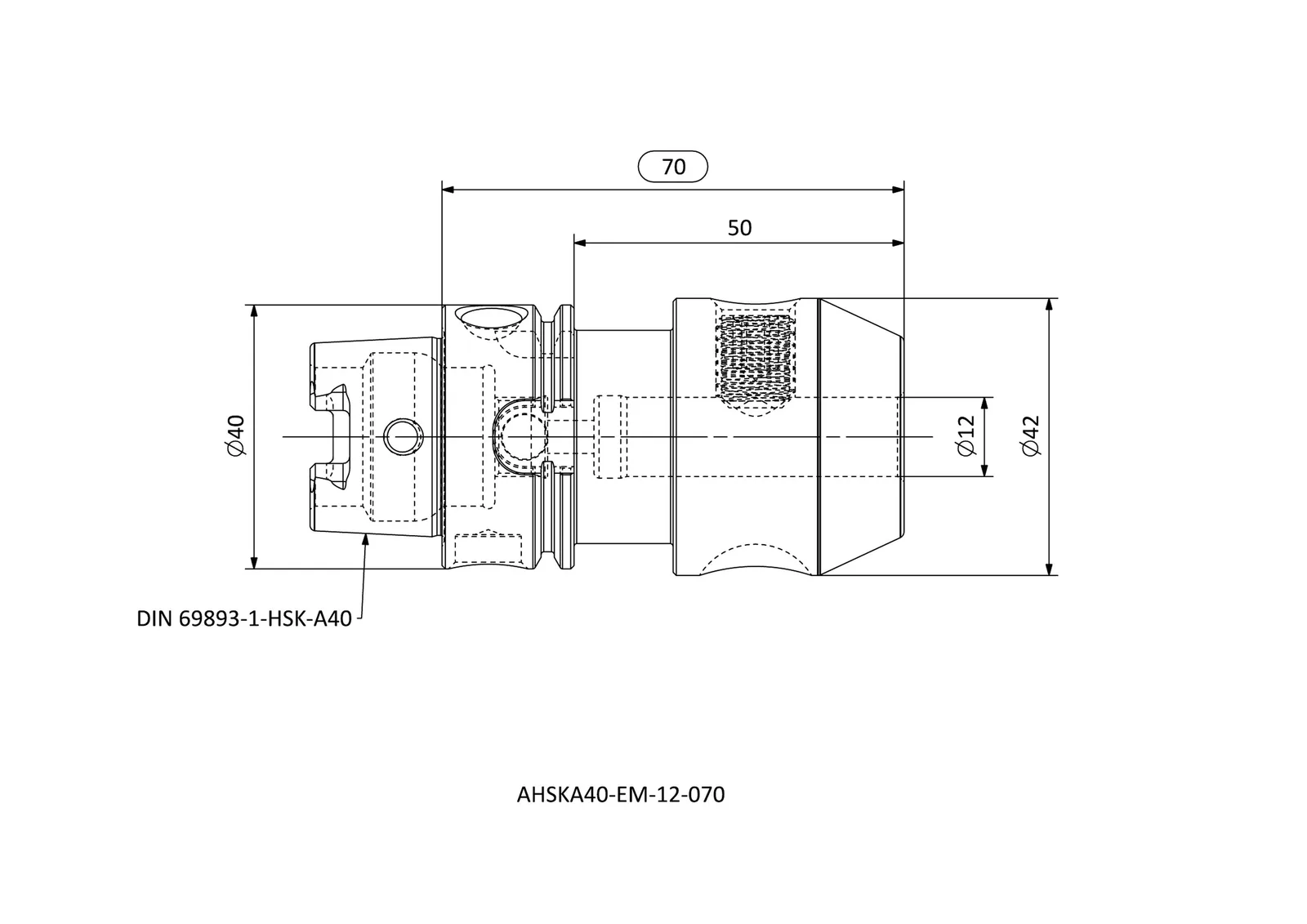

Specifications — AHSKA40-EM-12-070

BD	Bore diameter (mm)	42
LB	Body length (mm)	50
DCONMS	Connection diameter, machine side (mm)	40
DCONWS	Connection diameter, workpiece side (mm)	12
LPR	Protruding / projection length (mm)	70
BD2	Second bore diameter (mm)	32.6
KG	Weight (kg)	0.59

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Bore diameter (mm)	Body length (mm)	Connection diameter, machine side (mm)	Connection diameter, workpiece side (mm)
AHSKA63-EM-16-160	48	134	63	16
AHSKA100-EM-40-105	80	76	100	40
AHSKA32-EM-06-060	25	40	32	6
AHSKA32-EM-08-060	28	40	32	8
AHSKA32-EM-10-065	34	45	32	10
AHSKA32-EM-12-065	42	45	32	12
AHSKA40-EM-06-060	25	40	40	6
AHSKA40-EM-08-060	28	40	40	8
AHSKA40-EM-10-060	35	40	40	10
AHSKA40-EM-12-070	42	50	40	12
AHSKA40-EM-16-075	48	55	40	16
AHSKA50-EM-06-065	25	39	50	6
AHSKA50-EM-08-065	28	39	50	8
AHSKA50-EM-10-065	35	39	50	10
AHSKA50-EM-12-080	42	54	50	12
AHSKA50-EM-14-080	44	54	50	14
AHSKA50-EM-16-080	48	54	50	16
AHSKA50-EM-18-080	50	54	50	18
AHSKA50-EM-20-080	52	54	50	20
AHSKA63-EM-06-065	25	39	63	6
AHSKA63-EM-06-075	25	49	63	6
AHSKA63-EM-06-100	25	74	63	6
AHSKA63-EM-06-160	25	134	63	6
AHSKA63-EM-08-075	28	49	63	8
AHSKA63-EM-08-100	28	74	63	8
AHSKA63-EM-08-160	28	134	63	8
AHSKA63-EM-10-075	35	49	63	10
AHSKA63-EM-10-100	35	74	63	10
AHSKA63-EM-10-160	35	134	63	10
AHSKA63-EM-12-080	42	54	63	12
AHSKA63-EM-12-130	42	104	63	12
AHSKA63-EM-12-160	42	134	63	12
AHSKA63-EM-14-080	44	54	63	14
AHSKA63-EM-14-130	44	104	63	14
AHSKA63-EM-16-080	48	54	63	16
AHSKA63-EM-16-130	48	104	63	16
