Rotating Tools / ISO 12164-1 / HSK End Mill Holder

AHSKA63-EM-10-100

AHSK-EM series · see all 36 sizes

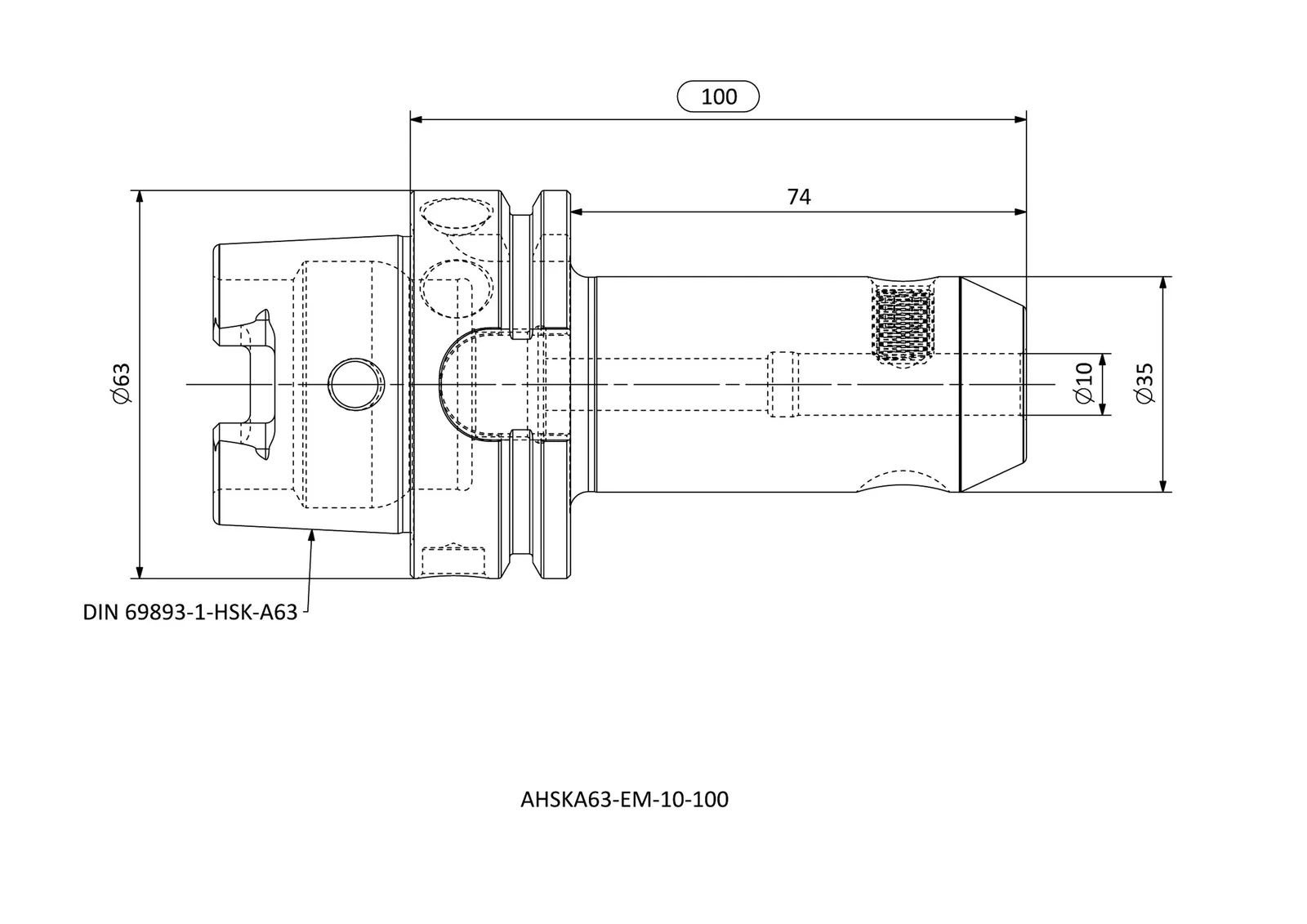

Specifications — AHSKA63-EM-10-100

BD	Bore diameter (mm)	35
LB	Body length (mm)	74
DCONMS	Connection diameter, machine side (mm)	63
DCONWS	Connection diameter, workpiece side (mm)	10
LPR	Protruding / projection length (mm)	100
BD2	Second bore diameter (mm)	0

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Bore diameter (mm)	Body length (mm)	Connection diameter, machine side (mm)	Connection diameter, workpiece side (mm)
AHSKA63-EM-16-160	48	134	63	16
AHSKA100-EM-40-105	80	76	100	40
AHSKA32-EM-06-060	25	40	32	6
AHSKA32-EM-08-060	28	40	32	8
AHSKA32-EM-10-065	34	45	32	10
AHSKA32-EM-12-065	42	45	32	12
AHSKA40-EM-06-060	25	40	40	6
AHSKA40-EM-08-060	28	40	40	8
AHSKA40-EM-10-060	35	40	40	10
AHSKA40-EM-12-070	42	50	40	12
AHSKA40-EM-16-075	48	55	40	16
AHSKA50-EM-06-065	25	39	50	6
AHSKA50-EM-08-065	28	39	50	8
AHSKA50-EM-10-065	35	39	50	10
AHSKA50-EM-12-080	42	54	50	12
AHSKA50-EM-14-080	44	54	50	14
AHSKA50-EM-16-080	48	54	50	16
AHSKA50-EM-18-080	50	54	50	18
AHSKA50-EM-20-080	52	54	50	20
AHSKA63-EM-06-065	25	39	63	6
AHSKA63-EM-06-075	25	49	63	6
AHSKA63-EM-06-100	25	74	63	6
AHSKA63-EM-06-160	25	134	63	6
AHSKA63-EM-08-075	28	49	63	8
AHSKA63-EM-08-100	28	74	63	8
AHSKA63-EM-08-160	28	134	63	8
AHSKA63-EM-10-075	35	49	63	10
AHSKA63-EM-10-100	35	74	63	10
AHSKA63-EM-10-160	35	134	63	10
AHSKA63-EM-12-080	42	54	63	12
AHSKA63-EM-12-130	42	104	63	12
AHSKA63-EM-12-160	42	134	63	12
AHSKA63-EM-14-080	44	54	63	14
AHSKA63-EM-14-130	44	104	63	14
AHSKA63-EM-16-080	48	54	63	16
AHSKA63-EM-16-130	48	104	63	16
