Rotating Tools / ISO 12164-1 / HSK End Mill Holder

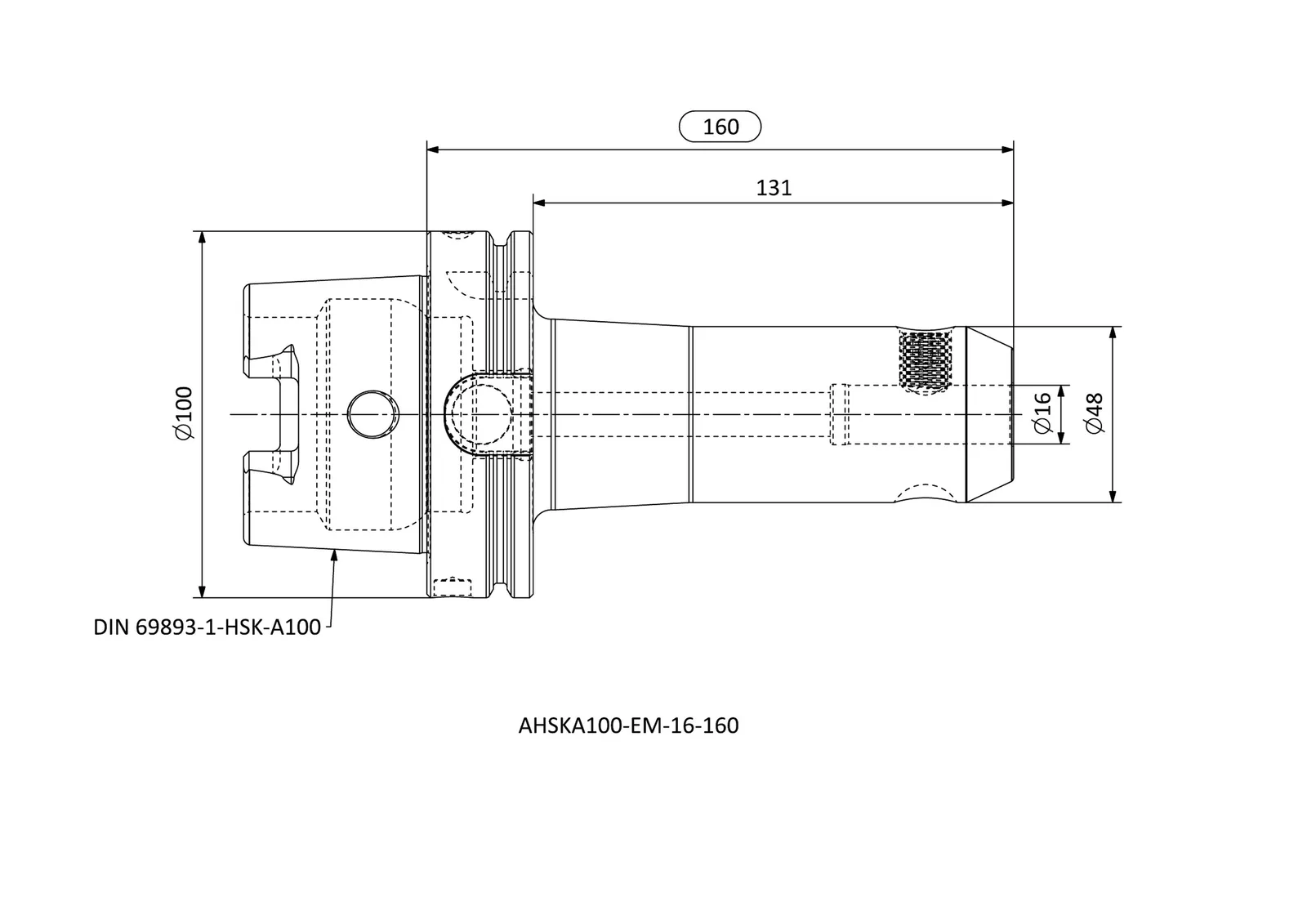

AHSKA100-EM-16-160

AHSK-EM1 series · see all 38 sizes

Specifications — AHSKA100-EM-16-160

BD	Bore diameter (mm)	48
LB	Body length (mm)	131
DCONMS	Connection diameter, machine side (mm)	100
DCONWS	Connection diameter, workpiece side (mm)	16
LPR	Protruding / projection length (mm)	160
BD2	Second bore diameter (mm)	0

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Bore diameter (mm)	Body length (mm)	Connection diameter, machine side (mm)	Connection diameter, workpiece side (mm)
AHSKA63-EM-18-080	50	54	63	18
AHSKA63-EM-20-080	52	54	63	20
AHSKA63-EM-20-160	52	74	63	20
AHSKA63-EM-20-130	52	104	63	20
AHSKA63-EM-25-110	64	84	63	25
AHSKA63-EM-32-110	72	84	63	32
AHSKA80-EM-06-080	25	54	80	6
AHSKA80-EM-08-080	28	54	80	8
AHSKA80-EM-10-080	35	54	80	10
AHSKA80-EM-12-080	42	54	80	12
AHSKA80-EM-14-080	44	54	80	14
AHSKA80-EM-16-100	48	74	80	16
AHSKA80-EM-18-100	50	74	80	18
AHSKA80-EM-20-100	52	74	80	20
AHSKA80-EM-25-100	65	74	80	25
AHSKA80-EM-32-110	72	84	80	32
AHSKA100-EM-06-080	25	51	100	6
AHSKA100-EM-06-160	25	131	100	6
AHSKA100-EM-08-080	28	51	100	8
AHSKA100-EM-08-160	28	131	100	8
AHSKA100-EM-10-080	35	51	100	10
AHSKA100-EM-10-160	35	131	100	10
AHSKA100-EM-12-080	42	51	100	12
AHSKA100-EM-12-160	42	131	100	12
AHSKA100-EM-14-080	44	51	100	14
AHSKA100-EM-14-160	44	131	100	14
AHSKA100-EM-16-100	48	71	100	16
AHSKA100-EM-16-160	48	131	100	16
AHSKA100-EM-18-100	50	71	100	18
AHSKA100-EM-18-160	50	131	100	18
AHSKA100-EM-20-100	52	71	100	20
AHSKA100-EM-20-160	52	131	100	20
AHSKA100-EM-25-100	65	71	100	25
AHSKA100-EM-25-160	65	131	100	25
AHSKA100-EM-32-100	72	71	100	32
AHSKA100-EM-32-160	72	131	100	32
AHSKA100-EM-40-110	80	81	100	40
AHSKA100-EM-40-160	80	131	100	40
