Rotating Tools / ISO 12164-1 / HSK End Mill Holder

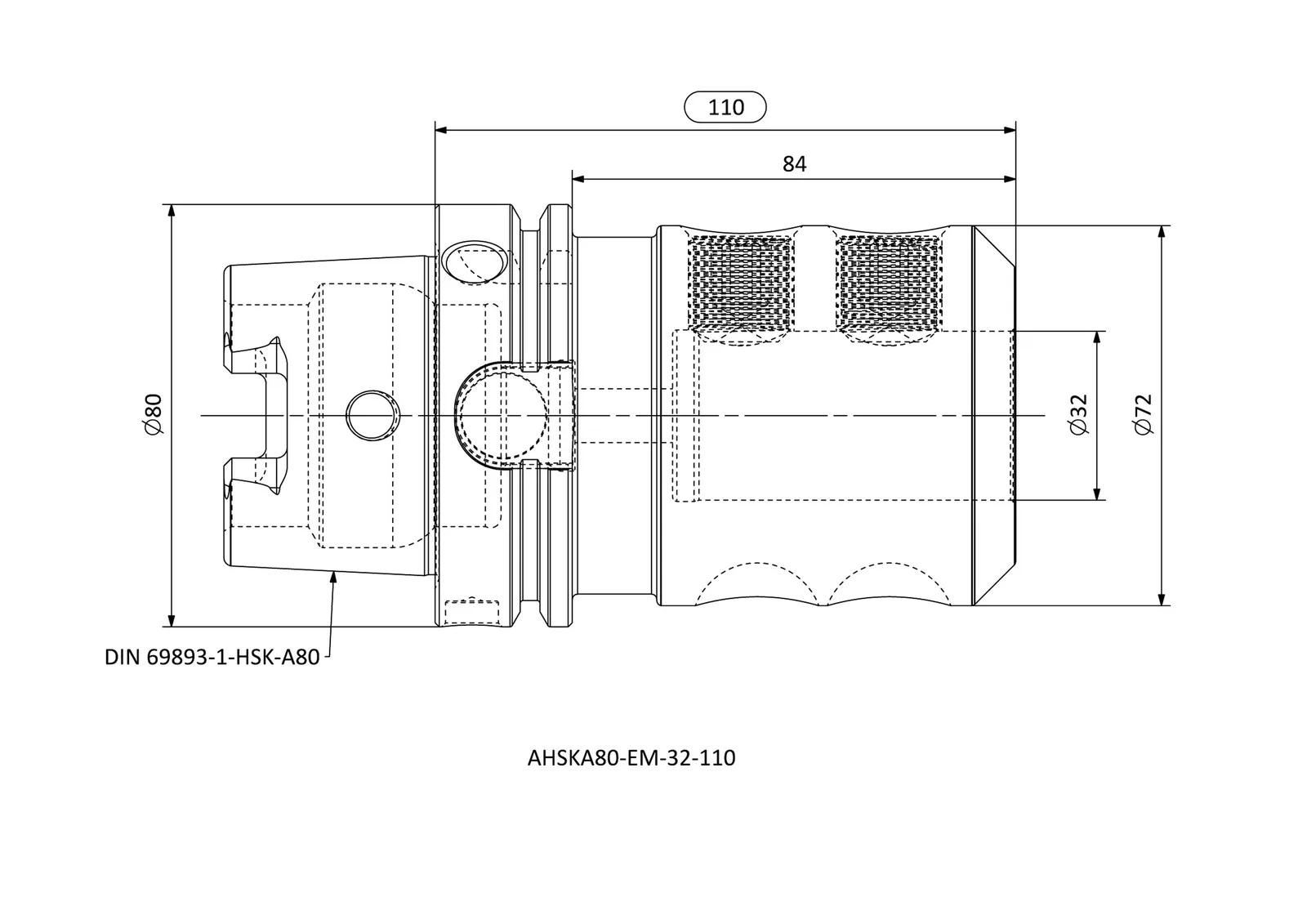

AHSKA80-EM-32-110

AHSK-EM1 series · see all 38 sizes

Specifications — AHSKA80-EM-32-110

BD	Bore diameter (mm)	72
LB	Body length (mm)	84
DCONMS	Connection diameter, machine side (mm)	80
DCONWS	Connection diameter, workpiece side (mm)	32
LPR	Protruding / projection length (mm)	110
BD2	Second bore diameter (mm)	67.6

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Bore diameter (mm)	Body length (mm)	Connection diameter, machine side (mm)	Connection diameter, workpiece side (mm)
AHSKA63-EM-18-080	50	54	63	18
AHSKA63-EM-20-080	52	54	63	20
AHSKA63-EM-20-160	52	74	63	20
AHSKA63-EM-20-130	52	104	63	20
AHSKA63-EM-25-110	64	84	63	25
AHSKA63-EM-32-110	72	84	63	32
AHSKA80-EM-06-080	25	54	80	6
AHSKA80-EM-08-080	28	54	80	8
AHSKA80-EM-10-080	35	54	80	10
AHSKA80-EM-12-080	42	54	80	12
AHSKA80-EM-14-080	44	54	80	14
AHSKA80-EM-16-100	48	74	80	16
AHSKA80-EM-18-100	50	74	80	18
AHSKA80-EM-20-100	52	74	80	20
AHSKA80-EM-25-100	65	74	80	25
AHSKA80-EM-32-110	72	84	80	32
AHSKA100-EM-06-080	25	51	100	6
AHSKA100-EM-06-160	25	131	100	6
AHSKA100-EM-08-080	28	51	100	8
AHSKA100-EM-08-160	28	131	100	8
AHSKA100-EM-10-080	35	51	100	10
AHSKA100-EM-10-160	35	131	100	10
AHSKA100-EM-12-080	42	51	100	12
AHSKA100-EM-12-160	42	131	100	12
AHSKA100-EM-14-080	44	51	100	14
AHSKA100-EM-14-160	44	131	100	14
AHSKA100-EM-16-100	48	71	100	16
AHSKA100-EM-16-160	48	131	100	16
AHSKA100-EM-18-100	50	71	100	18
AHSKA100-EM-18-160	50	131	100	18
AHSKA100-EM-20-100	52	71	100	20
AHSKA100-EM-20-160	52	131	100	20
AHSKA100-EM-25-100	65	71	100	25
AHSKA100-EM-25-160	65	131	100	25
AHSKA100-EM-32-100	72	71	100	32
AHSKA100-EM-32-160	72	131	100	32
AHSKA100-EM-40-110	80	81	100	40
AHSKA100-EM-40-160	80	131	100	40
