Rotating Tools / JIS B 6339 (MAS 403 BT) / BT Combi Shell Mill Holder

ABT40-FMC-27-055

ABT-FMC series · see all 41 sizes

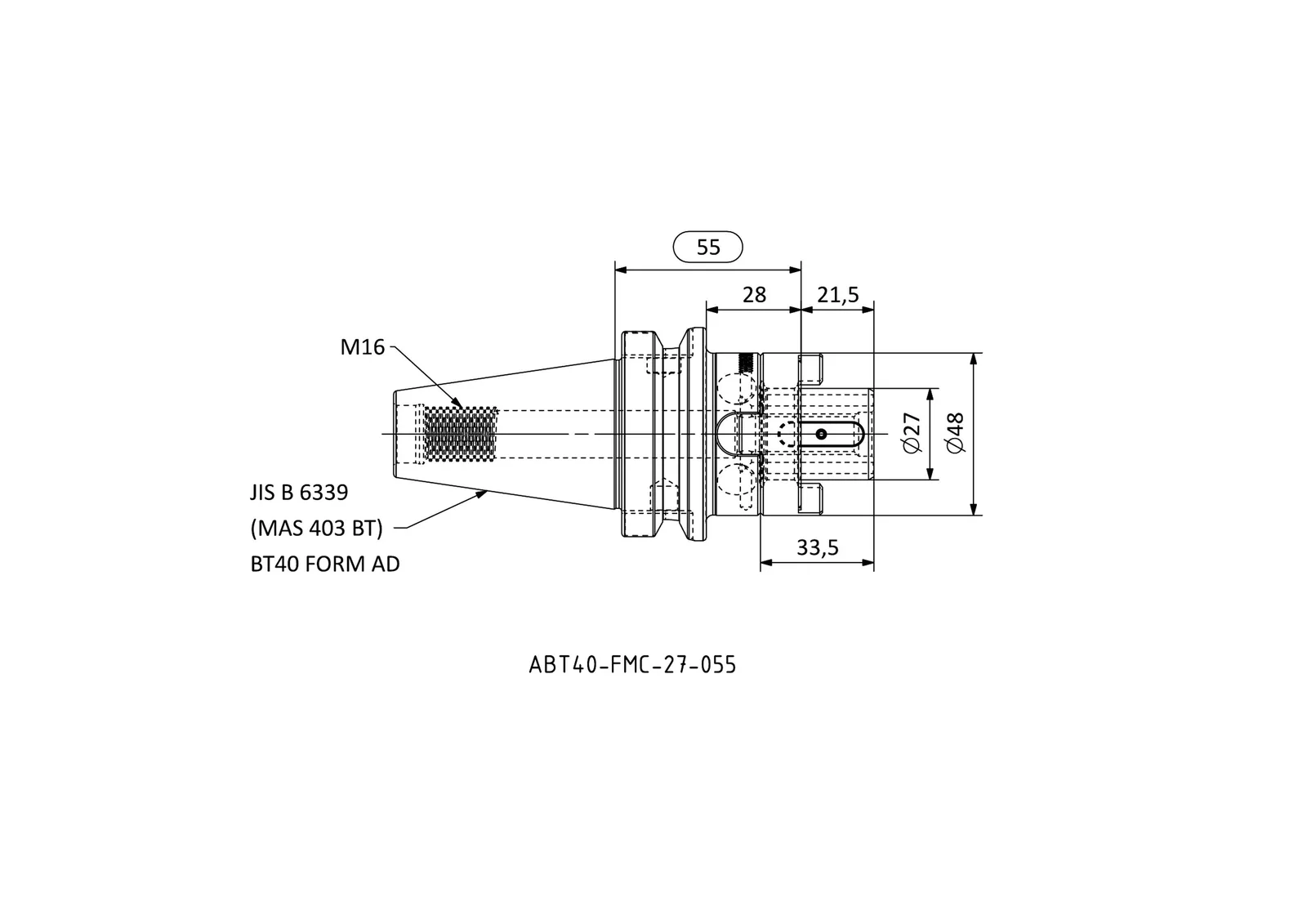

Specifications — ABT40-FMC-27-055

SS	Spindle / taper size	40
CRKS	Clamping / retention thread	M16
BD	Bore diameter (mm)	48
LB	Body length (mm)	28
DCONWS	Connection diameter, workpiece side (mm)	27
LF	Functional length (mm)	55
SCWS	SCWS	21.5
BD2	Second bore diameter (mm)	0
LSCWS2	LSCWS2	33
KG	Weight (kg)	1.44

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Spindle / taper size	Clamping / retention thread	Bore diameter (mm)	Body length (mm)
ABT30-FMC-16-045	30	M12	32	23
ABT30-FMC-22-047	30	M12	40	25
ABT30-FMC-27-049	30	M12	48	27
ABT30-FMC-32-052	30	M12	58	30
ABT40-FMC-16-055	40	M16	32	28
ABT40-FMC-16-100	40	M16	32	73
ABT40-FMC-16-130	40	M16	32	103
ABT40-FMC-16-160	40	M16	32	133
ABT40-FMC-22-055	40	M16	40	28
ABT40-FMC-22-100	40	M16	40	73
ABT40-FMC-22-130	40	M16	40	103
ABT40-FMC-22-160	40	M16	40	133
ABT40-FMC-27-055	40	M16	48	28
ABT40-FMC-27-100	40	M16	48	73
ABT40-FMC-27-130	40	M16	48	103
ABT40-FMC-27-160	40	M16	48	133
ABT40-FMC-32-060	40	M16	58	33
ABT40-FMC-32-100	40	M16	58	73
ABT40-FMC-32-130	40	M16	58	103
ABT40-FMC-32-160	40	M16	58	133
ABT40-FMC-40-060	40	M16	70	33
ABT50-FMC-16-070	50	M24	32	32
ABT50-FMC-16-100	50	M24	32	62
ABT50-FMC-16-130	50	M24	32	92
ABT50-FMC-16-160	50	M24	32	122
ABT50-FMC-22-070	50	M24	40	32
ABT50-FMC-22-100	50	M24	40	62
ABT50-FMC-22-130	50	M24	40	92
ABT50-FMC-22-160	50	M24	40	122
ABT50-FMC-27-070	50	M24	48	32
ABT50-FMC-27-100	50	M24	48	62
ABT50-FMC-27-130	50	M24	48	92
ABT50-FMC-27-160	50	M24	48	122
ABT50-FMC-32-070	50	M24	58	32
ABT50-FMC-32-100	50	M24	58	62
ABT50-FMC-32-130	50	M24	58	92
ABT50-FMC-32-160	50	M24	58	122
ABT50-FMC-40-070	50	M24	70	32
ABT50-FMC-40-100	50	M24	70	62
ABT50-FMC-40-130	50	M24	70	92
ABT50-FMC-40-160	50	M24	70	122
