Rotating Tools / JIS B 6339 (MAS 403 BT) / BT Milling Cutter Arbors For Screw-On Type Milling Cutters

ABT40-MM-12-077

ABT-MM series · see all 34 sizes

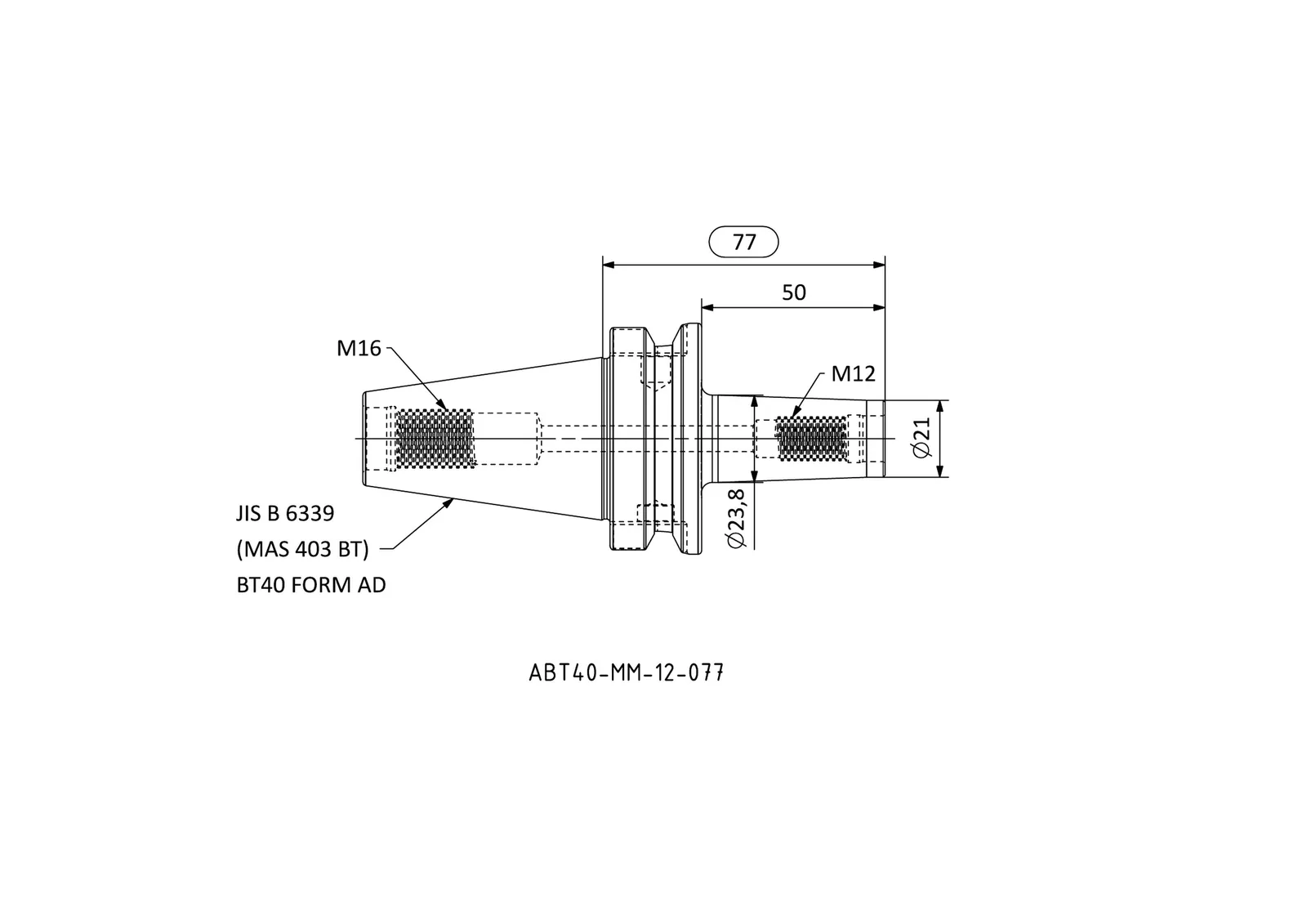

Specifications — ABT40-MM-12-077

SS	Spindle / taper size	40
CRKS	Clamping / retention thread	M16
BD	Bore diameter (mm)	21
LB	Body length (mm)	50
THSZW	THSZW	M12
LPR	Protruding / projection length (mm)	77
BD2	Second bore diameter (mm)	24
KG	Weight (kg)	1.06

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Spindle / taper size	Clamping / retention thread	Bore diameter (mm)	Body length (mm)
ABT40-MM-06-052	40	M16	10	25
ABT40-MM-06-077	40	M16	10	50
ABT40-MM-06-102	40	M16	10	75
ABT40-MM-08-052	40	M16	13	25
ABT40-MM-08-077	40	M16	13	50
ABT40-MM-08-102	40	M16	13	75
ABT40-MM-08-127	40	M16	13	100
ABT40-MM-10-052	40	M16	18	25
ABT40-MM-10-077	40	M16	18	50
ABT40-MM-10-102	40	M16	18	75
ABT40-MM-10-127	40	M16	18	100
ABT40-MM-12-052	40	M16	21	25
ABT40-MM-12-077	40	M16	21	50
ABT40-MM-12-102	40	M16	21	75
ABT40-MM-12-127	40	M16	21	100
ABT40-MM-12-177	40	M16	21	150
ABT40-MM-16-052	40	M16	29	25
ABT40-MM-16-077	40	M16	29	50
ABT40-MM-16-102	40	M16	29	75
ABT40-MM-16-127	40	M16	29	100
ABT40-MM-16-152	40	M16	29	125
ABT40-MM-16-177	40	M16	29	150
ABT50-MM-08-138	50	M24	13	100
ABT50-MM-08-188	50	M24	13	150
ABT50-MM-10-088	50	M24	18	50
ABT50-MM-10-138	50	M24	18	100
ABT50-MM-10-188	50	M24	18	150
ABT50-MM-12-088	50	M24	21	50
ABT50-MM-12-188	50	M24	21	150
ABT50-MM-16-088	50	M24	29	50
ABT50-MM-16-138	50	M24	29	100
ABT50-MM-12-138	50	M24	21	100
ABT50-MM-16-188	50	M24	29	150
ABT50-MM-08-088	50	M24	13	50
