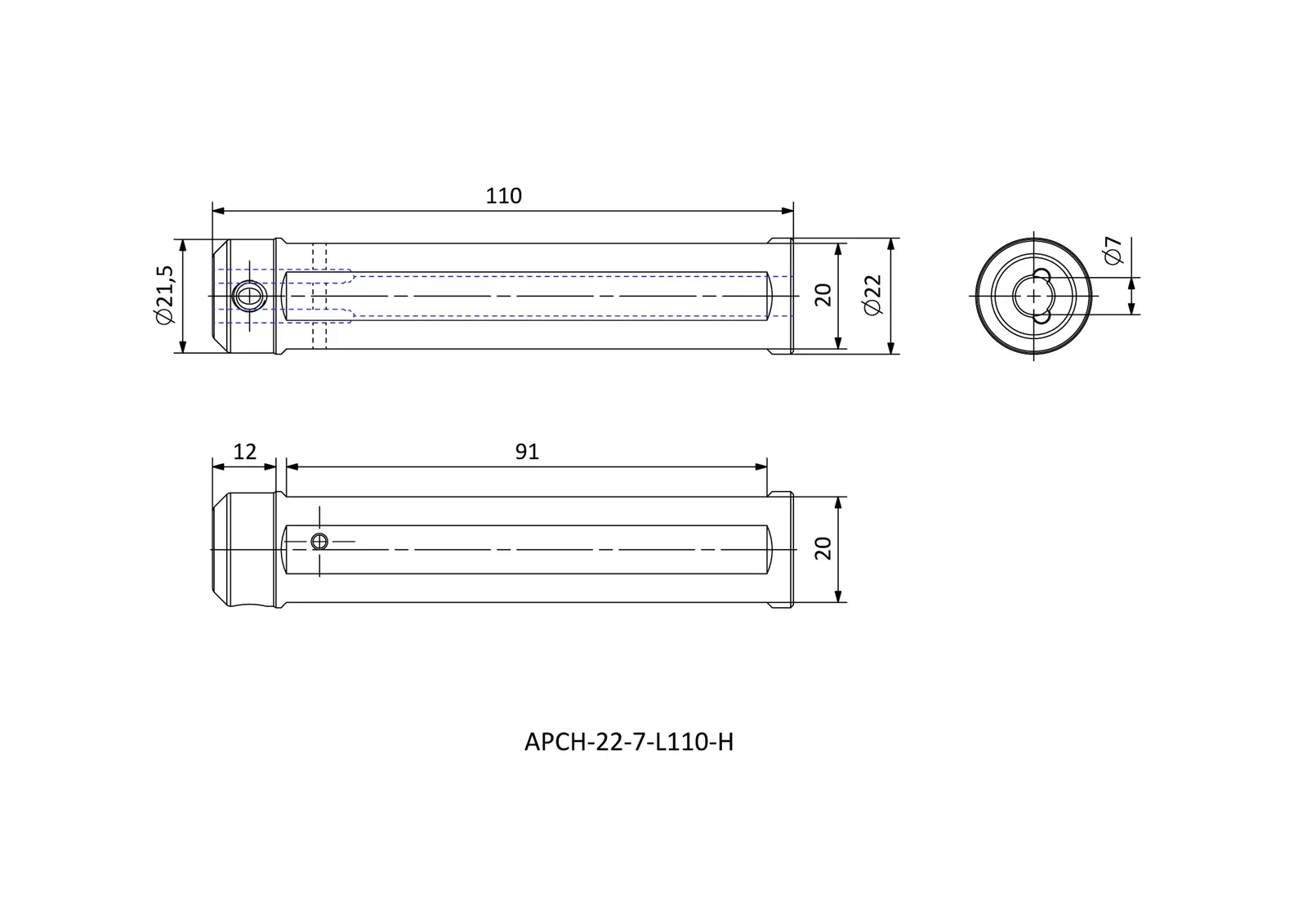

Specifications — APCH-22-7-L110-H
| BD | Bore diameter (mm) | 21.5 |
|---|---|---|
| OAL | Overall length (mm) | 110 |
| DCONMS | Connection diameter, machine side (mm) | 22 |
| DCONWS | Connection diameter, workpiece side (mm) | 7 |
| LF | Functional length (mm) | 12 |
| H | Shank height (mm) | 20 |
| LSCMS | LSCMS | 91 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 22 sizes in APCH
| Product code | Bore diameter (mm) | Overall length (mm) | Connection diameter, machine side (mm) | Connection diameter, workpiece side (mm) |
|---|---|---|---|---|
| APCH-16-4-L110-H | 15.5 | 110 | 16 | 4 |
| APCH-16-5-L110-H | 15.5 | 110 | 16 | 5 |
| APCH-16-6-L110-H | 15.5 | 110 | 16 | 6 |
| APCH-16-7-L110-H | 15.5 | 110 | 16 | 7 |
| APCH-20-4-L110-H | 19.5 | 110 | 20 | 4 |
| APCH-20-5-L110-H | 19.5 | 110 | 20 | 5 |
| APCH-20-6-L110-H | 19.5 | 110 | 20 | 6 |
| APCH-20-7-L110-H | 19.5 | 110 | 20 | 7 |
| APCH-20-8-L110-H | 22.5 | 110 | 20 | 8 |
| APCH-20-10-L110-H | 26 | 110 | 20 | 10 |
| APCH-22-4-L110-H | 21.5 | 110 | 22 | 4 |
| APCH-22-5-L110-H | 21.5 | 110 | 22 | 5 |
| APCH-22-6-L110-H | 21.5 | 110 | 22 | 6 |
| APCH-22-7-L110-H | 21.5 | 110 | 22 | 7 |
| APCH-22-8-L110-H | 22.5 | 110 | 22 | 8 |
| APCH-22-10-L110-H | 26 | 110 | 22 | 10 |
| APCH-25-4-L110-H | 24.5 | 110 | 25 | 4 |
| APCH-25-5-L110-H | 24.5 | 110 | 25 | 5 |
| APCH-25-6-L110-H | 24.5 | 110 | 25 | 6 |
| APCH-25-7-L110-H | 24.5 | 110 | 25 | 7 |
| APCH-25-8-L110-H | 24.5 | 110 | 25 | 8 |
| APCH-25-10-L110-H | 26 | 110 | 25 | 10 |
