Tool Holders / Antivibration Tools
ATTC-A32 SVUCL 16
ATTC-SVUCR/L series · see all 8 sizes
Insert compatibility
This size is built for the insert designation VC.T 1604 (as listed in the catalogue data).

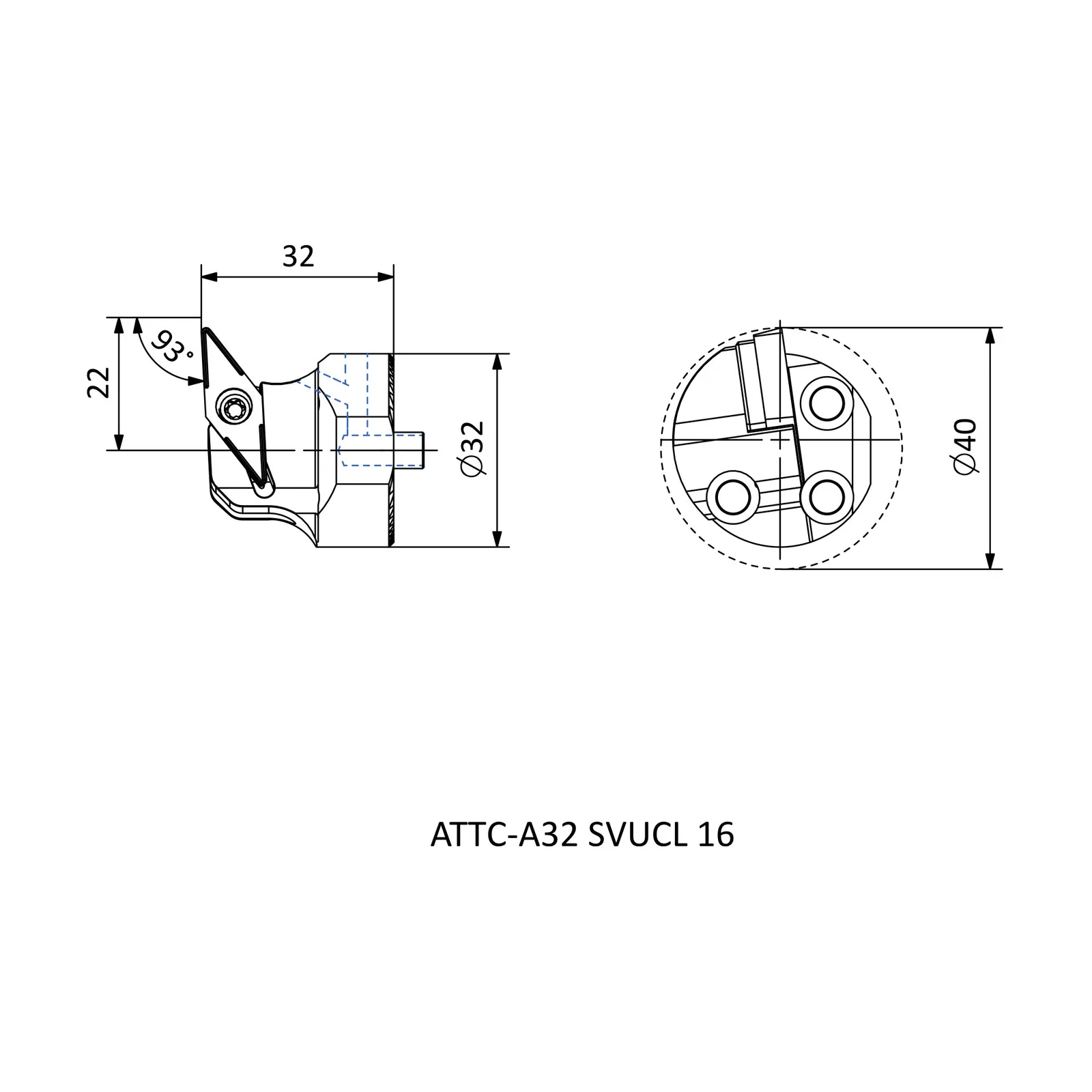

Specifications — ATTC-A32 SVUCL 16
| Insert Code | Insert designation | VC.T 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 32 |
| WF | Functional width (mm) | 22 |
| D min | Minimum working diameter (mm) | 40 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in ATTC-SVUCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| ATTC-A20 SVUCL 11 | L | 20 | 20 | 15 |
| ATTC-A20 SVUCR 11 | R | 20 | 20 | 15 |
| ATTC-A25 SVUCL 11 | L | 25 | 23 | 17 |
| ATTC-A25 SVUCR 11 | R | 25 | 23 | 17 |
| ATTC-A32 SVUCL 16 | L | 32 | 32 | 22 |
| ATTC-A32 SVUCR 16 | R | 32 | 32 | 22 |
| ATTC-A40 SVUCL 16 | L | 40 | 32 | 27 |
| ATTC-A40 SVUCR 16 | R | 40 | 32 | 27 |
