Tool Holders / Antivibration Tools
ATTC-A40 SVUCL 16
ATTC-SVUCR/L series · see all 8 sizes
Insert compatibility
This size is built for the insert designation VC.T 1604 (as listed in the catalogue data).

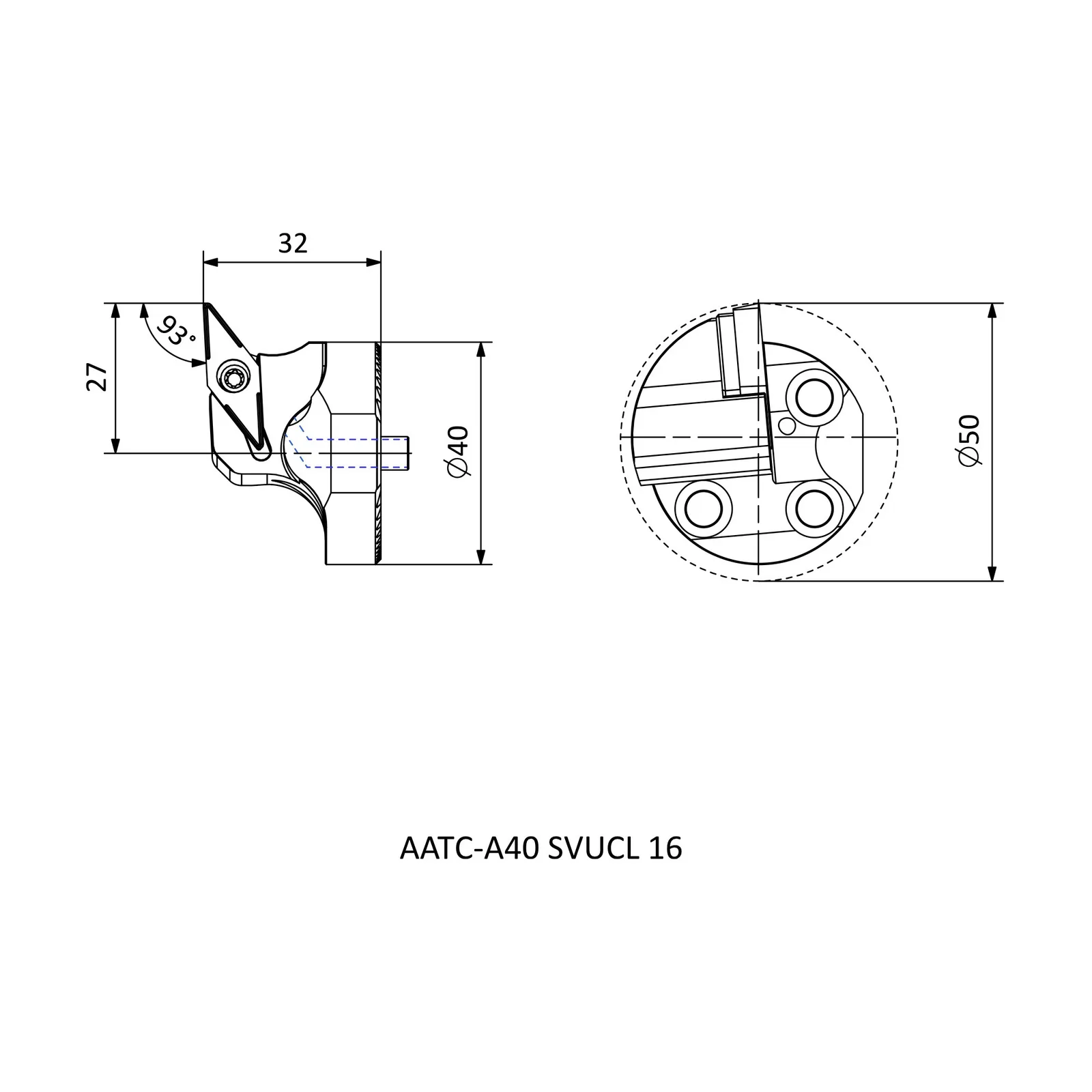

Specifications — ATTC-A40 SVUCL 16
| Insert Code | Insert designation | VC.T 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 32 |
| WF | Functional width (mm) | 27 |
| D min | Minimum working diameter (mm) | 50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
