Tool Holders / Atum Drill
ATUM 17XD2 SOMT 060204
ATUM XD2 SOMT series · see all 23 sizes
Insert compatibility
This size is built for the insert designation SOMT 060204 (as listed in the catalogue data).

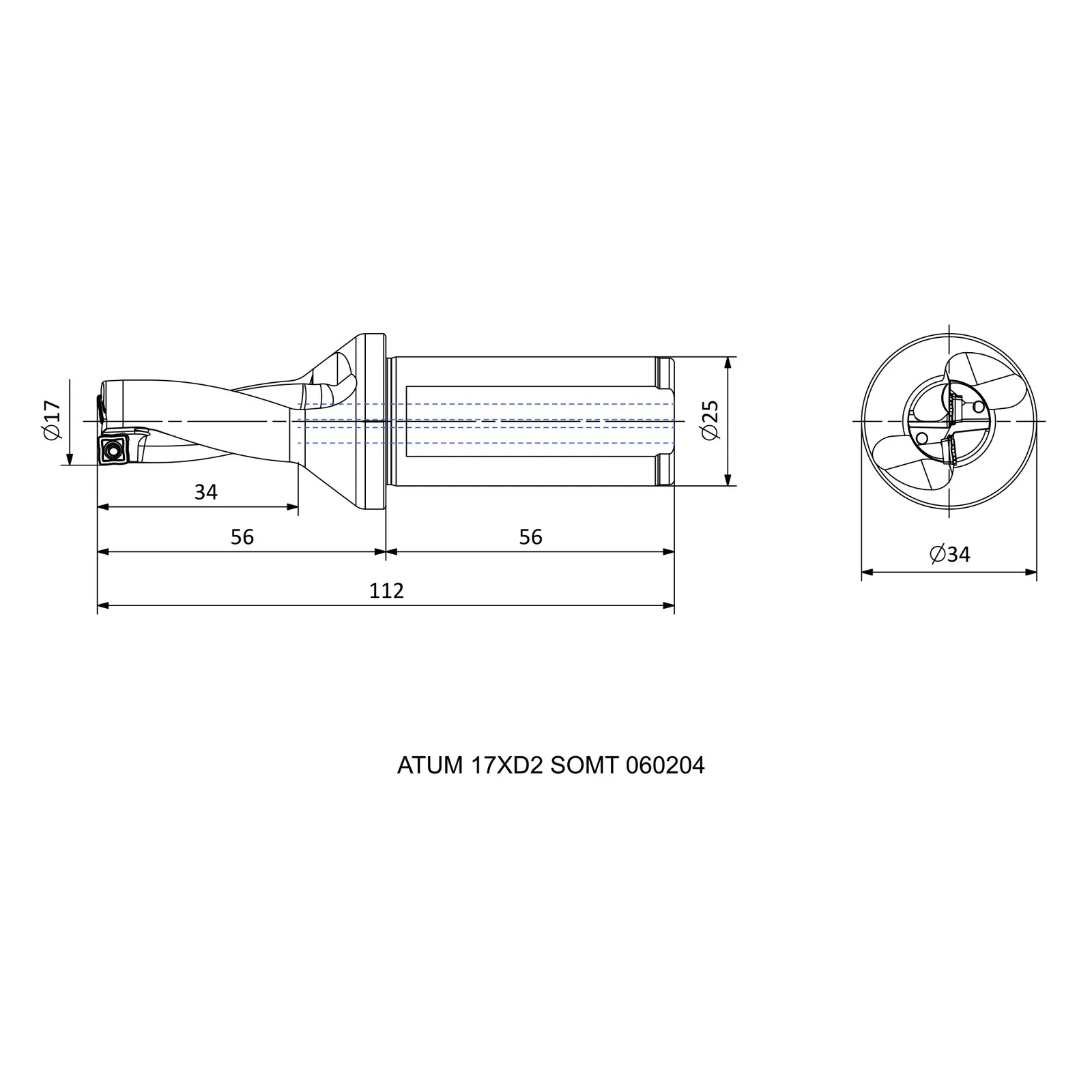

Specifications — ATUM 17XD2 SOMT 060204
| Insert Code | Insert designation | SOMT 060204 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 17 |
| DCON | Connection diameter (mm) | 25 |
| DCSFMS | Contact-face diameter, machine side (mm) | 34 |
| OAL | Overall length (mm) | 112 |
| LU | Usable length (mm) | 34 |
| LPR | Protruding / projection length (mm) | 56 |
| LS | Shank length (mm) | 56 |
| X max [mm] | Adjustment range, max (mm) | 0.5 |
| X min [mm] | Adjustment range, min (mm) | 18 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 23 sizes in ATUM XD2 SOMT
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| ATUM 14XD2 SOMT 050204 | R | 14 | 20 | 25 |
| ATUM 16XD2 SOMT 050204 | R | 16 | 25 | 34 |
| ATUM 17XD2 SOMT 060204 | R | 17 | 25 | 34 |
| ATUM 18XD2 SOMT 060204 | R | 18 | 25 | 34 |
| ATUM 20XD2 SOMT 070306 | R | 20 | 25 | 34 |
| ATUM 22XD2 SOMT 070306 | R | 22 | 25 | 34 |
| ATUM 23XD2 SOMT 08T306 | R | 23 | 25 | 34 |
| ATUM 24XD2 SOMT 08T306 | R | 24 | 25 | 34 |
| ATUM 25XD2 SOMT 08T306 | R | 25 | 25 | 34 |
| ATUM 26XD2 SOMT 08T306 | R | 26 | 25 | 34 |
| ATUM 27XD2 SOMT 09T308 | R | 27 | 25 | 34 |
| ATUM 28XD2 SOMT 09T308 | R | 28 | 25 | 34 |
| ATUM 29XD2 SOMT 09T308 | R | 29 | 25 | 34 |
| ATUM 30XD2 SOMT 09T308 | R | 30 | 32 | 44 |
| ATUM 32XD2 SOMT 11T308 | R | 32 | 32 | 44 |
| ATUM 33XD2 SOMT 11T308 | R | 33 | 32 | 44 |
| ATUM 34XD2 SOMT 11T308 | R | 34 | 32 | 44 |
| ATUM 35XD2 SOMT 11T308 | R | 35 | 32 | 44 |
| ATUM 37XD2 SOMT 130408 | R | 37 | 32 | 44 |
| ATUM 38XD2 SOMT 130408 | R | 38 | 32 | 44 |
| ATUM 40XD2 SOMT 130408 | R | 40 | 32 | 44 |
| ATUM 45XD2 SOMT 150510 | R | 45 | 40 | 54 |
| ATUM 47XD2 SOMT 150510 | R | 47 | 40 | 54 |
