Tool Holders / Atum Drill
ATUM 37XD2 SOMT 130408
ATUM XD2 SOMT series · see all 23 sizes
Insert compatibility
This size is built for the insert designation SOMT 130408 (as listed in the catalogue data).

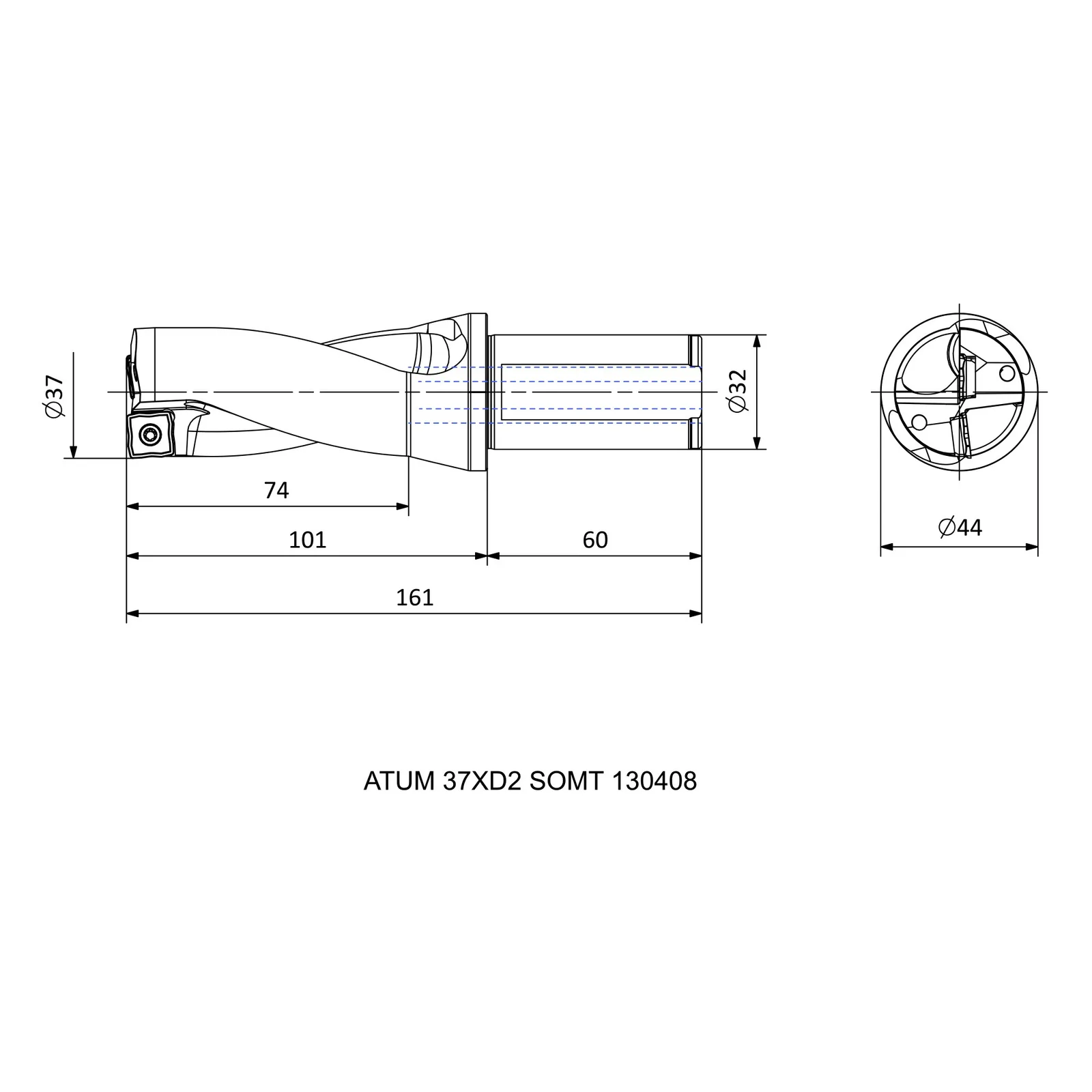

Specifications — ATUM 37XD2 SOMT 130408
| Insert Code | Insert designation | SOMT 130408 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 37 |
| DCON | Connection diameter (mm) | 32 |
| DCSFMS | Contact-face diameter, machine side (mm) | 44 |
| OAL | Overall length (mm) | 161 |
| LU | Usable length (mm) | 74 |
| LPR | Protruding / projection length (mm) | 101 |
| LS | Shank length (mm) | 60 |
| X max [mm] | Adjustment range, max (mm) | 0.5 |
| X min [mm] | Adjustment range, min (mm) | 0.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
