ATUM 22.5XD2 SP.. 07T308

Name: ATUM 22.5XD2 SP.. 07T308
Brand: Axior
SKU: ATUM 22.5XD2 SP.. 07T308

ATUM XD2 SP series · see all 37 sizes

This size is built for the insert designation SP.. 07T308 (as listed in the catalogue data).

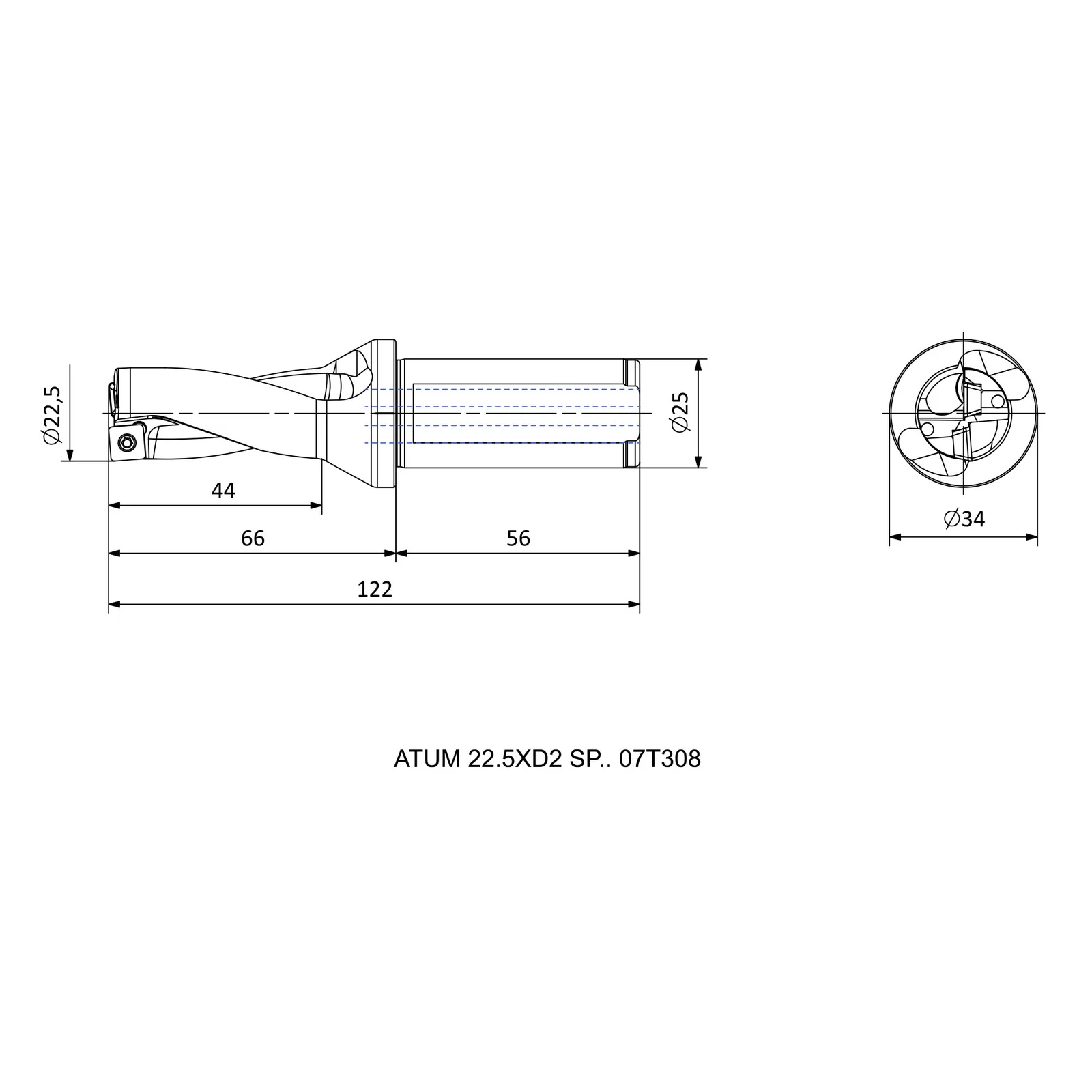

Specifications — ATUM 22.5XD2 SP.. 07T308

Insert Code	Insert designation	SP.. 07T308
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	22.5
DCON	Connection diameter (mm)	25
DCSFMS	Contact-face diameter, machine side (mm)	34
OAL	Overall length (mm)	122
LU	Usable length (mm)	44
LPR	Protruding / projection length (mm)	66
LS	Shank length (mm)	56
X max [mm]	Adjustment range, max (mm)	1
X min [mm]	Adjustment range, min (mm)	24.5

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 12.5XD2 SP.. 050204	R	12.5	20	25
ATUM 13XD2 SP.. 050204	R	13	20	25
ATUM 13.5XD2 SP.. 050204	R	13.5	20	25
ATUM 14XD2 SP.. 050204	R	14	20	25
ATUM 14.5XD2 SP.. 050204	R	14.5	20	25
ATUM 15XD2 SP.. 050204	R	15	20	25
ATUM 15.5XD2 SP.. 060204	R	15.5	20	25
ATUM 16XD2 SP.. 060204	R	16	25	34
ATUM 16.5XD2 SP.. 060204	R	16.5	25	34
ATUM 17XD2 SP.. 060204	R	17	25	34
ATUM 17.5XD2 SP.. 060204	R	17.5	25	34
ATUM 18XD2 SP.. 060204	R	18	25	34
ATUM 18.5XD2 SP.. 060204	R	18.5	25	34
ATUM 19XD2 SP.. 060204	R	19	25	34
ATUM 19.5XD2 SP.. 060204	R	19.5	25	34
ATUM 20XD2 SP.. 060204	R	20	25	34
ATUM 20.5XD2 SP.. 060204	R	20.5	25	34
ATUM 21XD2 SP.. 060204	R	21	25	34
ATUM 21.5XD2 SP.. 060204	R	21.5	25	34
ATUM 22XD2 SP.. 07T308-32	R	22	32	44
ATUM 22XD2 SP.. 07T308	R	22	25	23
ATUM 22.5XD2 SP.. 07T308	R	22.5	25	34
ATUM 23XD2 SP.. 07T308-32	R	23	32	44
ATUM 23XD2 SP.. 07T308	R	23	25	34
ATUM 23.5XD2 SP.. 07T308	R	23.5	25	34
ATUM 24XD2 SP.. 07T308	R	24	25	34
ATUM 24XD2 SP.. 07T308-32	R	24	32	44
ATUM 24.5XD2 SP.. 07T308	R	24.5	25	34
ATUM 25XD2 SP.. 07T308	R	25	25	34
ATUM 25XD2 SP.. 07T308-32	R	25	32	44
ATUM 25.5XD2 SP.. 07T308	R	25.5	25	34
ATUM 26XD2 SP.. 07T308	R	26	25	34
ATUM 26XD2 SP.. 07T308-32	R	26	32	44
ATUM 26.5XD2 SP.. 07T308	R	26.5	25	34
ATUM 27XD2 SP.. 07T308-32	R	27	32	44
ATUM 27XD2 SP.. 07T308	R	27	25	34
ATUM 27.5XD2 SP.. 07T308	R	27.5	25	34
