ATUM 23XD2 SP.. 07T308-32

Name: ATUM 23XD2 SP.. 07T308-32
Brand: Axior
SKU: ATUM 23XD2 SP.. 07T308-32

ATUM XD2 SP series · see all 37 sizes

This size is built for the insert designation SP.. 07T308 (as listed in the catalogue data).

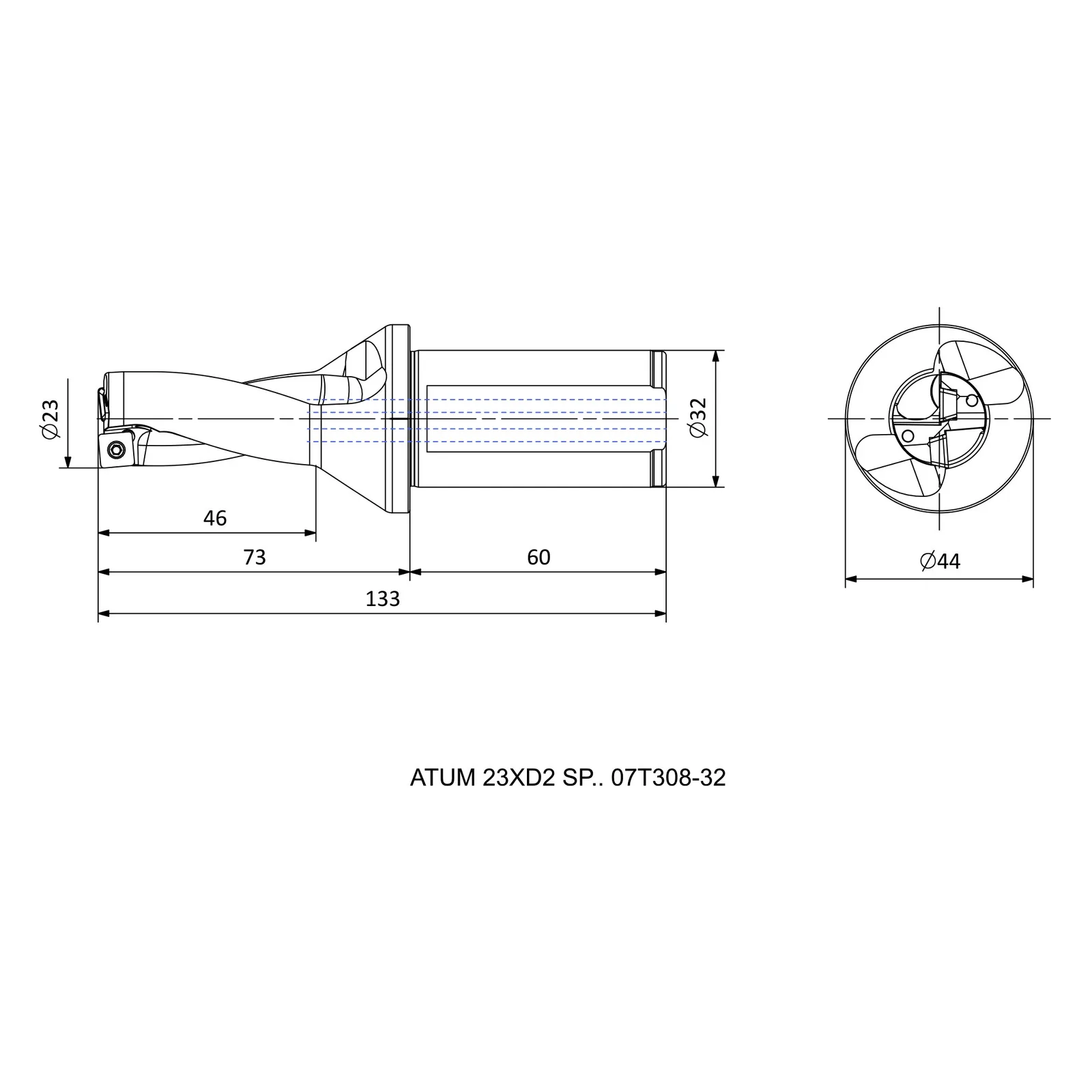

Specifications — ATUM 23XD2 SP.. 07T308-32

Insert Code	Insert designation	SP.. 07T308
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	23
DCON	Connection diameter (mm)	32
DCSFMS	Contact-face diameter, machine side (mm)	44
OAL	Overall length (mm)	133
LU	Usable length (mm)	46
LPR	Protruding / projection length (mm)	73
LS	Shank length (mm)	50
X max [mm]	Adjustment range, max (mm)	0.75
X min [mm]	Adjustment range, min (mm)	24.5

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
