ATUM 35XD2 SP.. 110408

Name: ATUM 35XD2 SP.. 110408
Brand: Axior
SKU: ATUM 35XD2 SP.. 110408

ATUM XD2 SP1 series · see all 28 sizes

This size is built for the insert designation SP.. 110408 (as listed in the catalogue data).

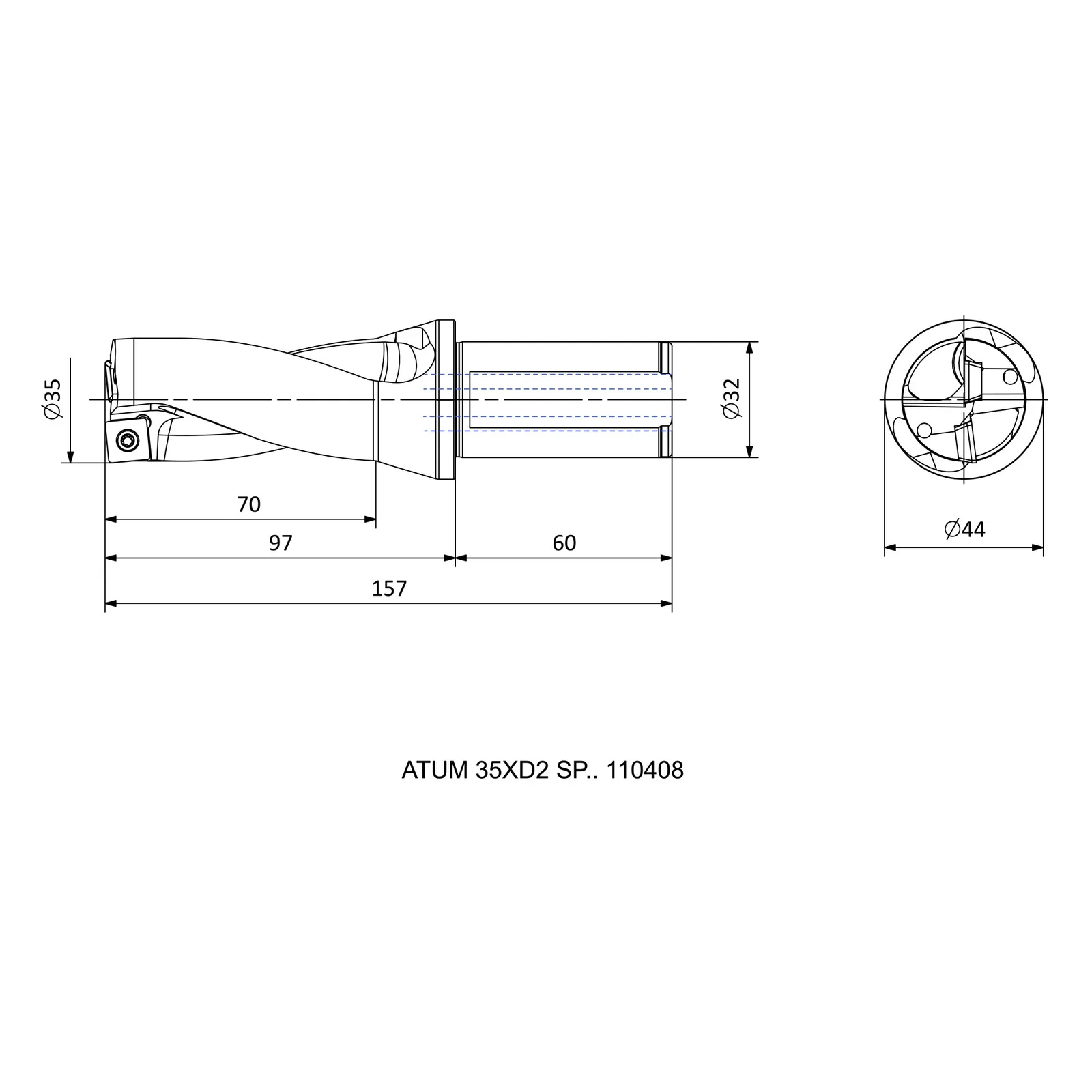

Specifications — ATUM 35XD2 SP.. 110408

Insert Code	Insert designation	SP.. 110408
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	35
DCON	Connection diameter (mm)	32
DCSFMS	Contact-face diameter, machine side (mm)	44
OAL	Overall length (mm)	157
LU	Usable length (mm)	70
LPR	Protruding / projection length (mm)	97
LS	Shank length (mm)	60
X max [mm]	Adjustment range, max (mm)	0.75
X min [mm]	Adjustment range, min (mm)	36.5

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 30.5XD2 SP.. 090408	R	30.5	32	34
ATUM 28XD2 SP.. 090408	R	28	25	34
ATUM 28.5XD2 SP.. 090408	R	28.5	25	34
ATUM 28XD2 SP.. 090408-32	R	28	32	44
ATUM 29XD2 SP.. 090408-32	R	29	32	44
ATUM 29XD2 SP.. 090408	R	29	25	34
ATUM 29.5XD2 SP.. 090408	R	29.5	25	34
ATUM 30XD2 SP.. 090408	R	30	32	44
ATUM 31XD2 SP.. 090408	R	31	25	44
ATUM 32XD2 SP.. 090408	R	32	25	44
ATUM 33XD2 SP.. 090408	R	33	25	44
ATUM 34XD2 SP.. 110408	R	34	32	44
ATUM 35XD2 SP.. 110408	R	35	32	44
ATUM 36XD2 SP.. 110408	R	36	32	44
ATUM 37XD2 SP.. 110408	R	37	32	44
ATUM 38XD2 SP.. 110408	R	38	32	44
ATUM 39XD2 SP.. 110408	R	39	32	44
ATUM 40XD2 SP.. 110408	R	40	32	44
ATUM 41XD2 SP.. 110408	R	41	32	44
ATUM 42XD2 SP.. 140512	R	42	32	44
ATUM 43XD2 SP.. 140512	R	43	32	44
ATUM 44XD2 SP.. 140512	R	44	32	44
ATUM 45XD2 SP.. 140512	R	45	40	54
ATUM 46XD2 SP.. 140512	R	46	40	54
ATUM 47XD2 SP.. 140512	R	47	40	54
ATUM 48XD2 SP.. 140512	R	48	40	54
ATUM 49XD2 SP.. 140512	R	49	40	54
ATUM 50XD2 SP.. 140512	R	50	40	54
