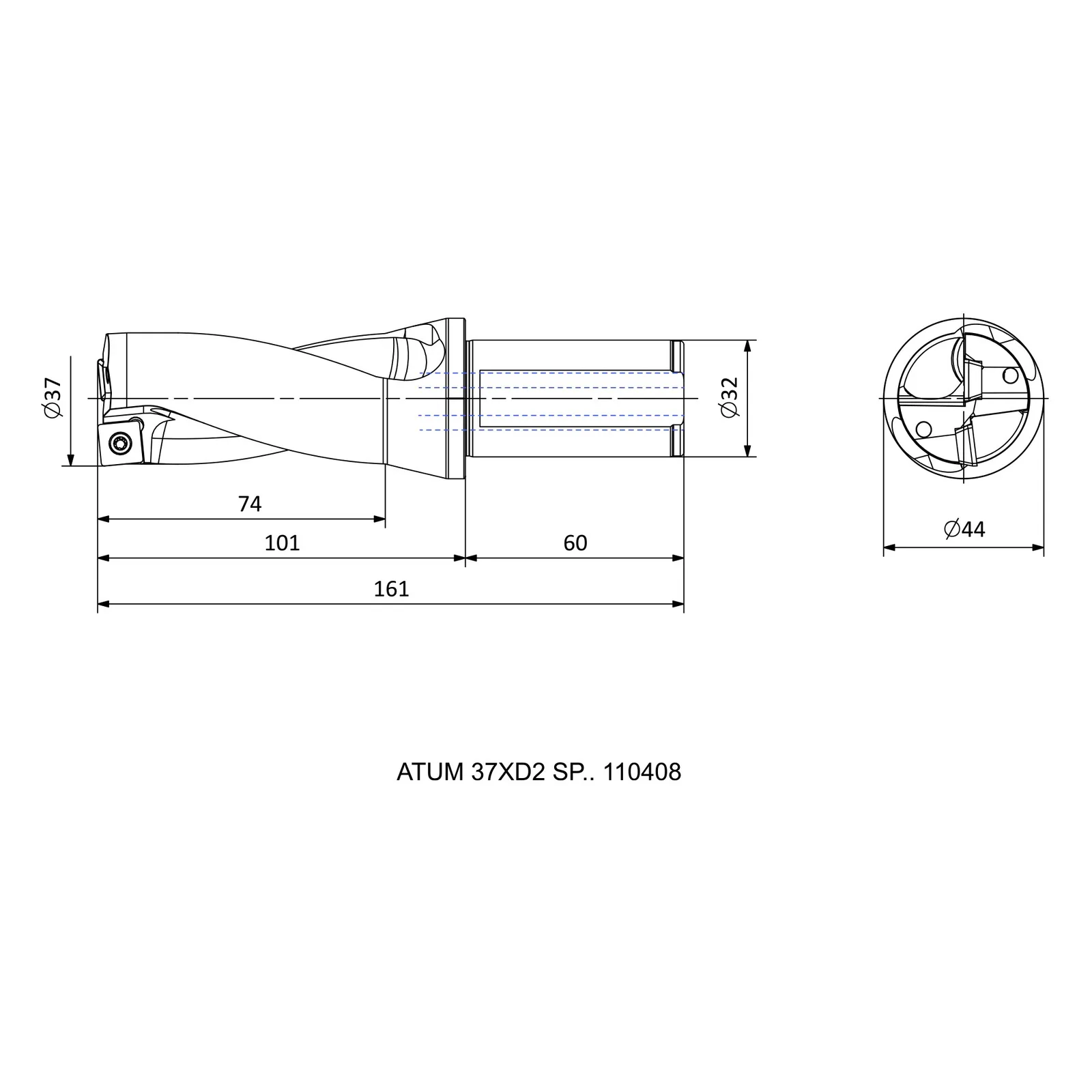

ATUM 37XD2 SP.. 110408

Name: ATUM 37XD2 SP.. 110408
Brand: Axior
SKU: ATUM 37XD2 SP.. 110408

ATUM XD2 SP1 series · see all 28 sizes

This size is built for the insert designation SP.. 110408 (as listed in the catalogue data).

Specifications — ATUM 37XD2 SP.. 110408

Insert Code	Insert designation	SP.. 110408
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	37
DCON	Connection diameter (mm)	32
DCSFMS	Contact-face diameter, machine side (mm)	44
OAL	Overall length (mm)	161
LU	Usable length (mm)	74
LPR	Protruding / projection length (mm)	101
LS	Shank length (mm)	60
X max [mm]	Adjustment range, max (mm)	0.5
X min [mm]	Adjustment range, min (mm)	38

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
