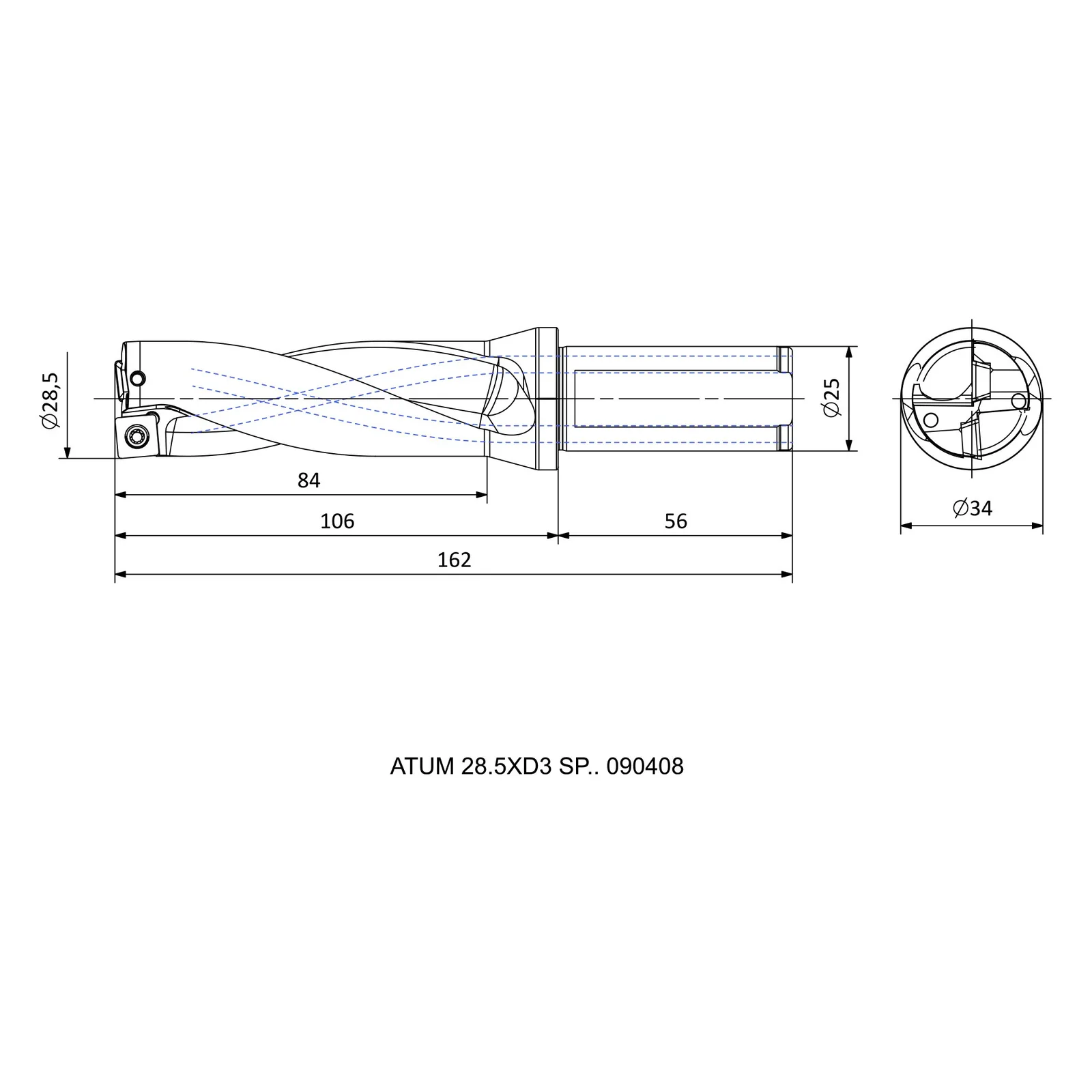

ATUM 28.5XD3 SP.. 090408 — dimensioned drawing
Tool Holders / Atum Drill

ATUM 28.5XD3 SP.. 090408

ATUM XD3 SP series · see all 51 sizes

Insert compatibility

This size is built for the insert designation SP.. 090408 (as listed in the catalogue data).

Ask about this size

Specifications — ATUM 28.5XD3 SP.. 090408

Insert Code Insert designation SP.. 090408
Product Direction Cutting direction (hand) R
DC Cutting diameter (mm) 28.5
DCON Connection diameter (mm) 25
DCSFMS Contact-face diameter, machine side (mm) 34
OAL Overall length (mm) 162
LU Usable length (mm) 84
LPR Protruding / projection length (mm) 106
LS Shank length (mm) 59
X max [mm] Adjustment range, max (mm) 1
X min [mm] Adjustment range, min (mm) 30.5

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 51 sizes in ATUM XD3 SP

Product codeCutting direction (hand)Cutting diameter (mm)Connection diameter (mm)Contact-face diameter, machine side (mm)
ATUM 12.5XD3 SP.. 050204 R12.52025
ATUM 13XD3 SP.. 050204 R132025
ATUM 13.5XD3 SP.. 050204 R13.52025
ATUM 14XD3 SP.. 050204 R142025
ATUM 14.5XD3 SP.. 050204 R14.52025
ATUM 15XD3 SP.. 050204 R152025
ATUM 15.5XD3 SP.. 060204 R15.52025
ATUM 16XD3 SP.. 060204 R162534
ATUM 16.5XD3 SP.. 060204 R16.52534
ATUM 17XD3 SP.. 060204 R172534
ATUM 17.5XD3 SP.. 060204 R17.52534
ATUM 18.5XD3 SP.. 060204 R18.52534
ATUM 18XD3 SP.. 060204 R182534
ATUM 19.5XD3 SP.. 060204 R19.52534
ATUM 20XD3 SP.. 060204 R202534
ATUM 20.5XD3 SP.. 060204 R20.52534
ATUM 21.5XD3 SP.. 060204 R21.52534
ATUM 21XD3 SP.. 060204 R212534
ATUM 22XD3 SP.. 07T308 R222534
ATUM 22.5XD3 SP.. 07T308 R22.52534
ATUM 23XD3 SP.. 07T308 R232534
ATUM 23XD3 SP.. 07T308-32 R233244
ATUM 24.5XD3 SP.. 07T308 R24.52534
ATUM 25XD3 SP.. 07T308 R252534
ATUM 25XD3 SP.. 07T308-32 R253244
ATUM 25.5XD3 SP.. 07T308 R25.52534
ATUM 27XD3 SP.. 07T308-32 R273244
ATUM 27XD3 SP.. 07T308 R272534
ATUM 27.5XD3 SP.. 07T308 R27.52534
ATUM 28.5XD3 SP.. 090408 R28.52534
ATUM 28XD3 SP.. 090408-32 R283244
ATUM 29XD3 SP.. 090408 R292534
ATUM 29XD3 SP.. 090408-32 R293244
ATUM 30XD3 SP.. 090408 R303244
ATUM 30.5XD3 SP.. 090408 R30.53244
ATUM 31XD3 SP.. 090408 R313244
ATUM 32.5XD3 SP.. 090408 R32.53244
ATUM 32XD3 SP.. 090408 R323244
ATUM 33XD3 SP.. 090408 R333244
ATUM 33.5XD3 SP.. 090408 R33.53244
ATUM 28XD3 SP.. 090408 R282534
ATUM 29.5XD3 SP.. 090408 R29.52534
ATUM 19XD3 SP.. 060204 R192534
ATUM 22XD3 SP.. 07T308-32 R223244
ATUM 24XD3 SP.. 07T308 R242534
ATUM 23.5XD3 SP.. 07T308 R23.52534
ATUM 26XD3 SP.. 07T308 R262534
ATUM 24XD3 SP.. 07T308-32 R243244
ATUM 26.5XD3 SP.. 07T308 R26.52534
ATUM 26XD3 SP.. 07T308-32 R263244
ATUM 31.5XD3 SP.. 090408 R31.53244
