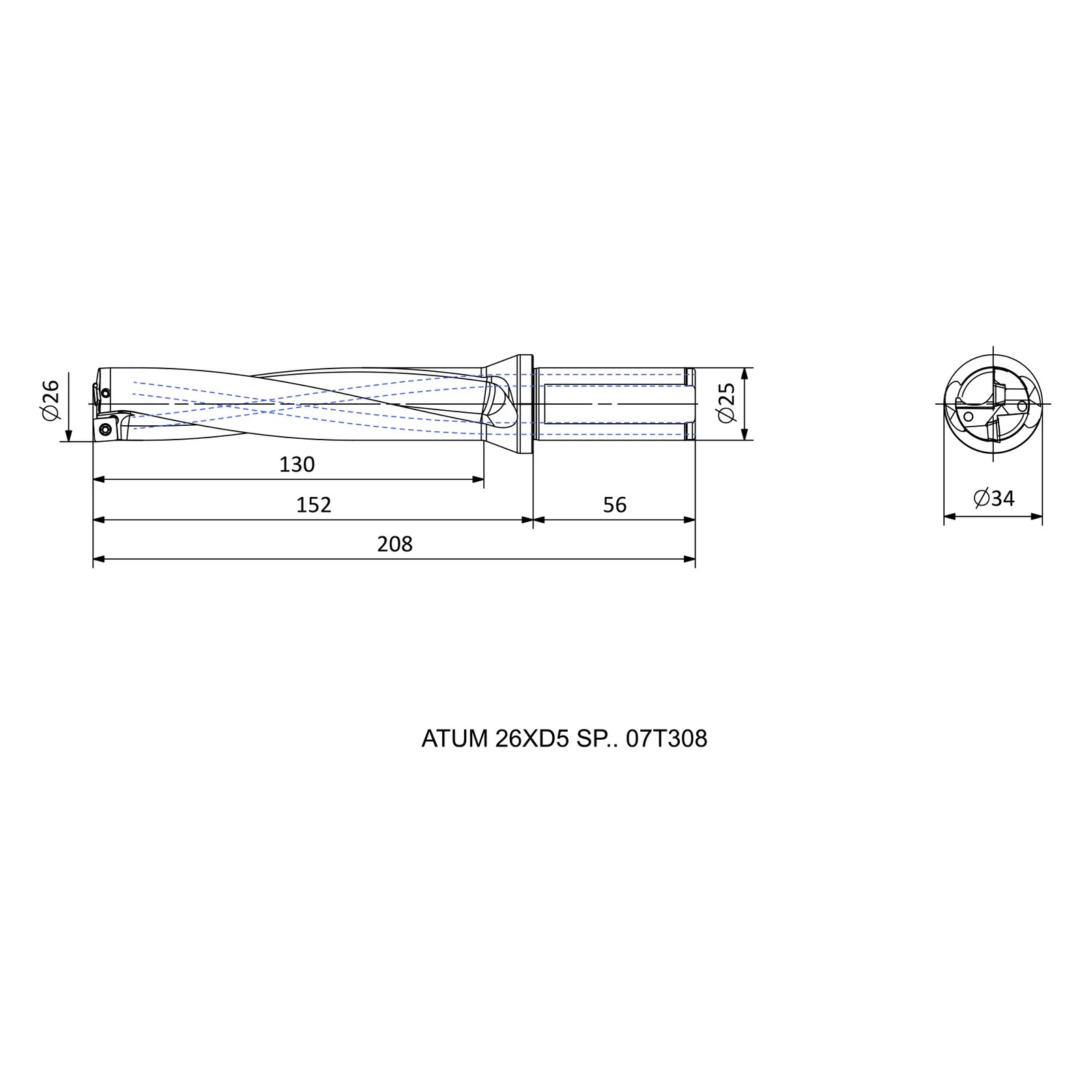

Tool Holders / Atum Drill

ATUM 26XD5 SP.. 07T308

Name: ATUM 26XD5 SP.. 07T308
Brand: Axior
SKU: ATUM 26XD5 SP.. 07T308

ATUM XD5 SP series · see all 37 sizes

This size is built for the insert designation SP.. 07T308 (as listed in the catalogue data).

Specifications — ATUM 26XD5 SP.. 07T308

Insert Code	Insert designation	SP.. 07T308
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	26
DCON	Connection diameter (mm)	25
DCSFMS	Contact-face diameter, machine side (mm)	34
OAL	Overall length (mm)	208
LU	Usable length (mm)	130
LPR	Protruding / projection length (mm)	152
LS	Shank length (mm)	56
X max [mm]	Adjustment range, max (mm)	0
X min [mm]	Adjustment range, min (mm)	26

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
