ATUM 31XD5 SP.. 090408

Name: ATUM 31XD5 SP.. 090408
Brand: Axior
SKU: ATUM 31XD5 SP.. 090408

ATUM XD5 SP series · see all 37 sizes

This size is built for the insert designation SP.. 090408 (as listed in the catalogue data).

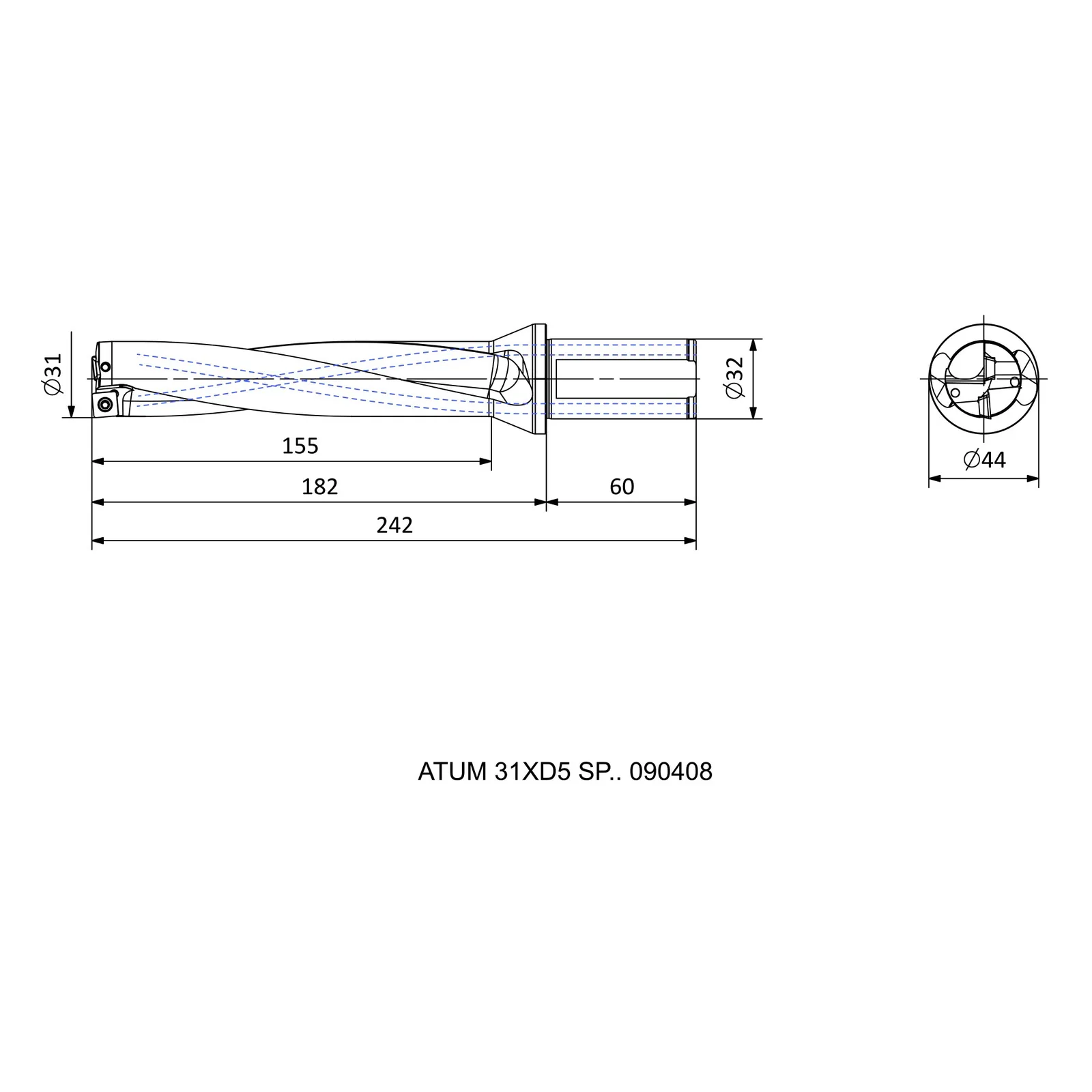

Specifications — ATUM 31XD5 SP.. 090408

Insert Code	Insert designation	SP.. 090408
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	31
DCON	Connection diameter (mm)	32
DCSFMS	Contact-face diameter, machine side (mm)	44
OAL	Overall length (mm)	242
LU	Usable length (mm)	155
LPR	Protruding / projection length (mm)	182
LS	Shank length (mm)	60
X max [mm]	Adjustment range, max (mm)	0.25
X min [mm]	Adjustment range, min (mm)	31.5

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 16.5XD5 SP.. 060204	R	16.5	25	34
ATUM 28XD5 SP.. 090408	R	28	25	34
ATUM 26.5XD5 SP.. 07T308	R	26.5	25	34
ATUM 17.5XD5 SP.. 060204	R	17.5	25	34
ATUM 37XD5 SP.. 110408	R	37	32	44
ATUM 40XD5 SP.. 110408	R	40	32	44
ATUM 42XD5 SP.. 140512	R	42	32	44
ATUM 48XD5 SP.. 140512	R	48	40	54
ATUM 50XD5 SP.. 140512	R	50	40	54
ATUM 13XD5 SP.. 050204	R	13	20	25
ATUM 14XD5 SP.. 050204	R	14	20	25
ATUM 14.5XD5 SP.. 050204	R	14.5	20	25
ATUM 15XD5 SP.. 050204	R	15	20	25
ATUM 16XD5 SP.. 060204	R	16	25	34
ATUM 17XD5 SP.. 060204	R	17	25	34
ATUM 17XD5 SP.. 060204-32	R	17	32	34
ATUM 18XD5 SP.. 060204	R	18	25	34
ATUM 19XD5 SP.. 060204	R	19	25	34
ATUM 20XD5 SP.. 060204	R	20	25	34
ATUM 21XD5 SP.. 060204	R	21	25	34
ATUM 22XD5 SP.. 07T308	R	22	25	34
ATUM 22XD5 SP.. 07T308-32	R	22	32	44
ATUM 23XD5 SP.. 07T308	R	23	25	34
ATUM 23XD5 SP.. 07T308-32	R	23	32	44
ATUM 24XD5 SP.. 07T308-32	R	24	32	44
ATUM 25XD5 SP.. 07T308	R	25	25	34
ATUM 25XD5 SP.. 07T308-32	R	25	32	44
ATUM 26XD5 SP.. 07T308	R	26	25	34
ATUM 26XD5 SP.. 07T308-32	R	26	32	44
ATUM 27XD5 SP.. 07T308	R	27	25	34
ATUM 27XD5 SP.. 07T308-32	R	27	32	44
ATUM 28XD5 SP.. 090408-32	R	28	32	44
ATUM 29XD5 SP.. 090408-32	R	29	32	44
ATUM 30XD5 SP.. 090408	R	30	32	44
ATUM 31XD5 SP.. 090408	R	31	32	44
ATUM 32XD5 SP.. 090408	R	32	32	44
ATUM 33XD5 SP.. 090408	R	33	32	44
