Tool Holders / Ball Nose Mills
APMR-P3210-D10-C12-L130
APMR-P series · see all 8 sizes
Insert compatibility
This size is built for the insert designation P 3210 (as listed in the catalogue data).

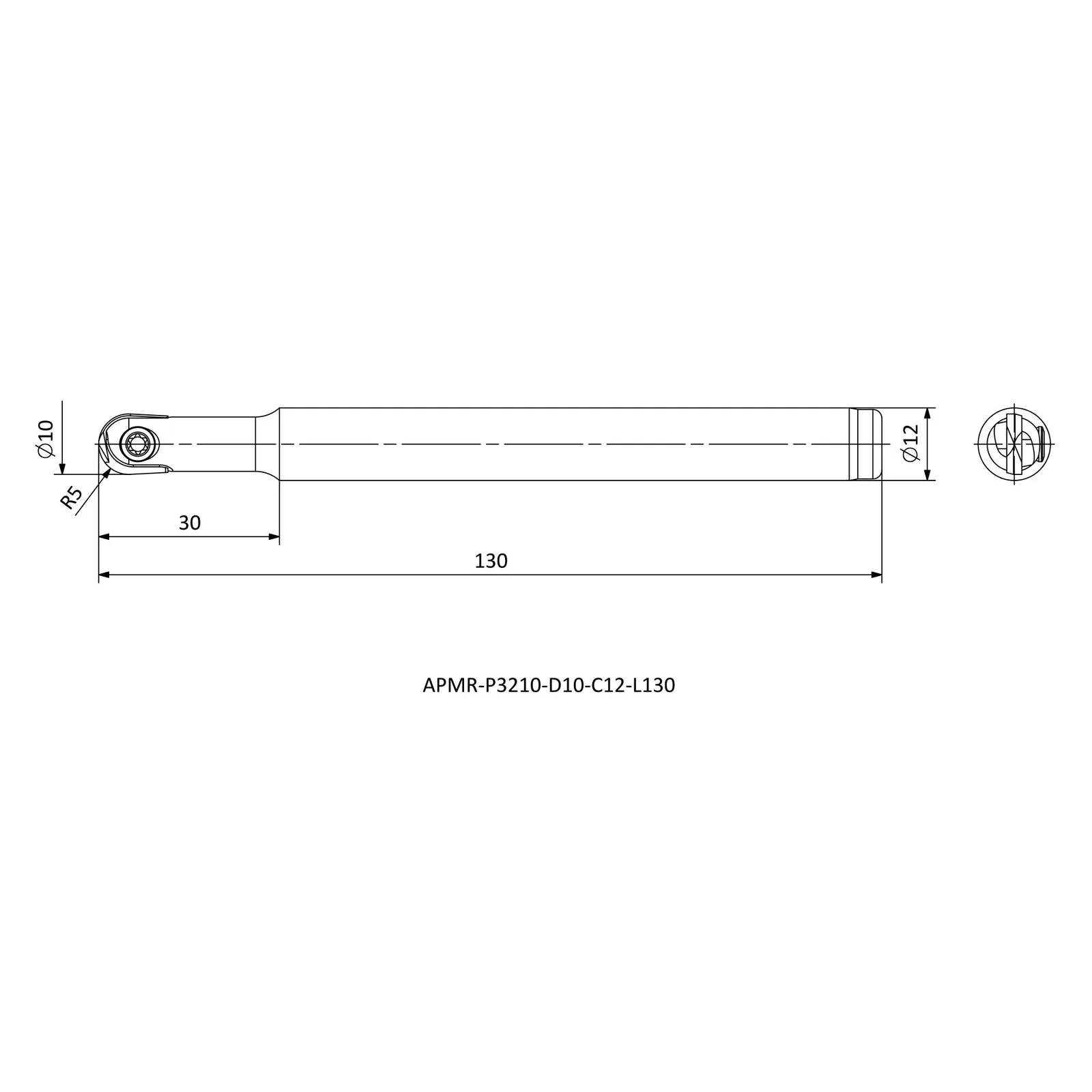

Specifications — APMR-P3210-D10-C12-L130
| Insert Code | Insert designation | P3210 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12 |
| LF | Functional length (mm) | 130 |
| DCX | Maximum diameter (mm) | 10 |
| LH | Head length (mm) | 30 |
| RE | Corner radius (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in APMR-P
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| APMR-P3208-D08-C10-L110 | R | 10 | 110 | 8 |
| APMR-P3210-D10-C10-L130 | R | 10 | 130 | 10 |
| APMR-P3210-D10-C12-L130 | R | 12 | 130 | 10 |
| APMR-P3212-D12-C12-L130 | R | 12 | 130 | 12 |
| APMR-P3216-D16-C16-L175 | R | 16 | 175 | 16 |
| APMR-P3220-D20-C20-L200 | R | 20 | 200 | 20 |
| APMR-P3225-D25-C25-L200 | R | 25 | 200 | 25 |
| APMR-P3232-D32-C32-L200 | R | 32 | 200 | 32 |
