Tool Holders / Ball Nose Mills
APMR-RO12-D12-C16-L160
APMR-RO series · see all 8 sizes
Insert compatibility
This size is built for the insert designation ROHX 1203 (as listed in the catalogue data).

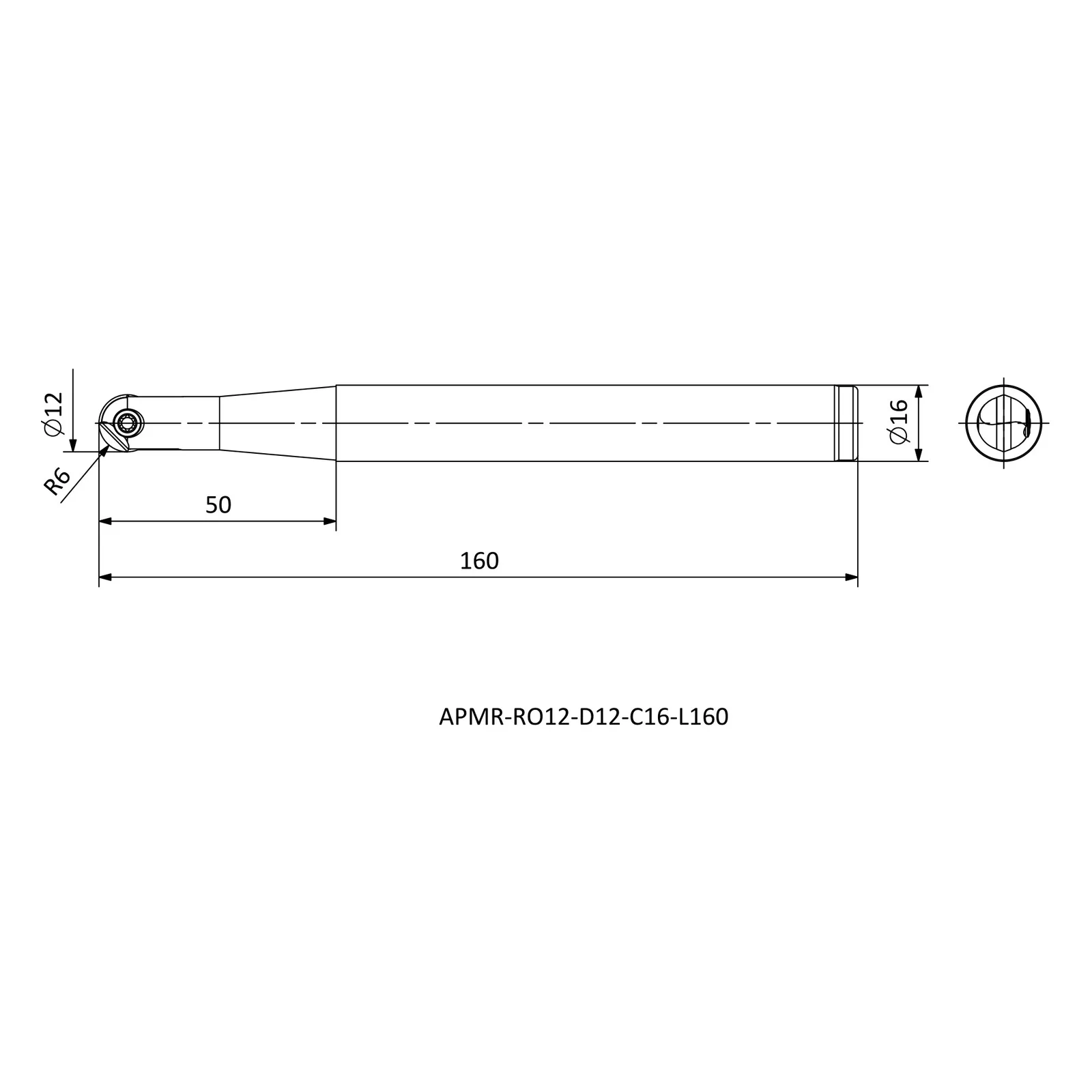

Specifications — APMR-RO12-D12-C16-L160
| Insert Code | Insert designation | ROHX 1203 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 160 |
| DCX | Maximum diameter (mm) | 12 |
| LH | Head length (mm) | 50 |
| RE | Corner radius (mm) | 6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
