Tool Holders / Ball Nose Mills
APMR-RO20-D20-C20-L200
APMR-RO series · see all 8 sizes
Insert compatibility
This size is built for the insert designation ROHX 2005 (as listed in the catalogue data).

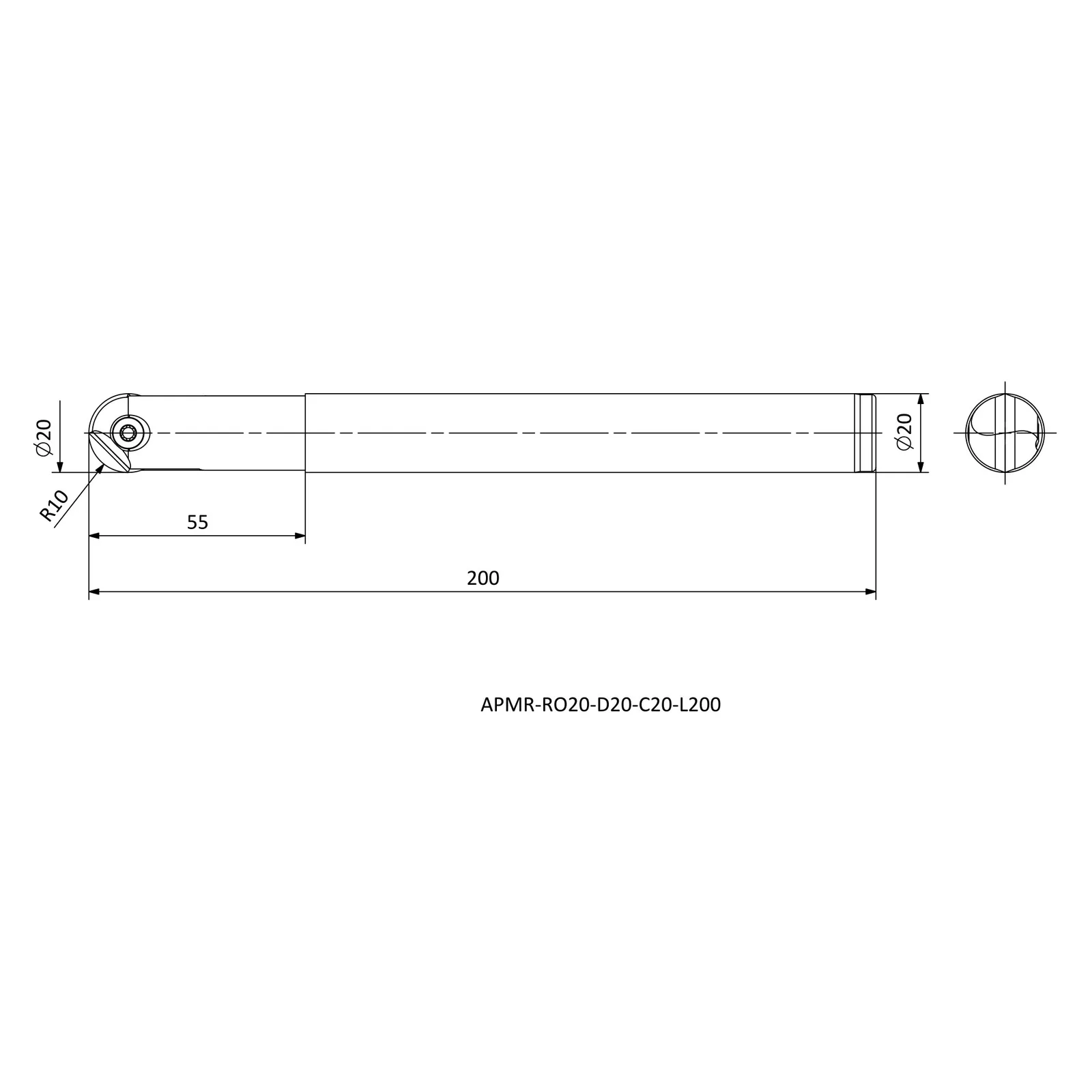

Specifications — APMR-RO20-D20-C20-L200
| Insert Code | Insert designation | ROHX 2005 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 200 |
| DCX | Maximum diameter (mm) | 20 |
| LH | Head length (mm) | 55 |
| RE | Corner radius (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
