Tool Holders / Ball Nose Mills
APMR-XP20-D20-C20-L150
APMR-XP series · see all 3 sizes
Insert compatibility
This size is built for the insert designation XPHT 20R10T3 (as listed in the catalogue data).

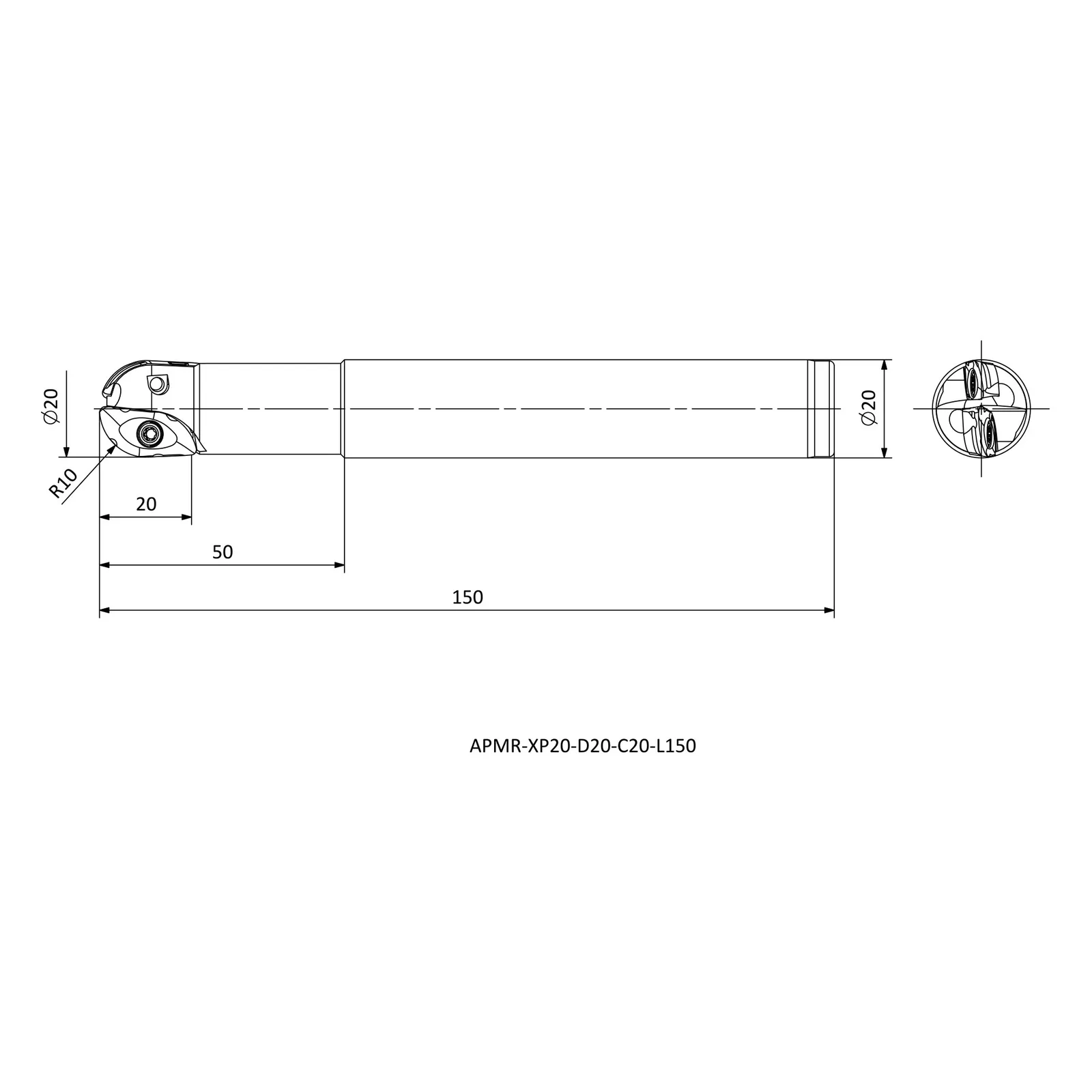

Specifications — APMR-XP20-D20-C20-L150
| Insert Code | Insert designation | XPHT 20R10T3 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 20 |
| LH | Head length (mm) | 50 |
| APMX | Depth of cut, maximum (mm) | 20 |
| RE | Corner radius (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in APMR-XP
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| APMR-XP16-D16-C16-L150 | R | 16 | 150 | 16 |
| APMR-XP20-D20-C20-L150 | R | 20 | 150 | 20 |
| APMR-XP25-D25-C25-L150 | R | 25 | 150 | 25 |
