Tool Holders / Ball Nose Mills
APMR-XP25-D25-C25-L150
APMR-XP series · see all 3 sizes
Insert compatibility
This size is built for the insert designation XPHT 25R1204 (as listed in the catalogue data).

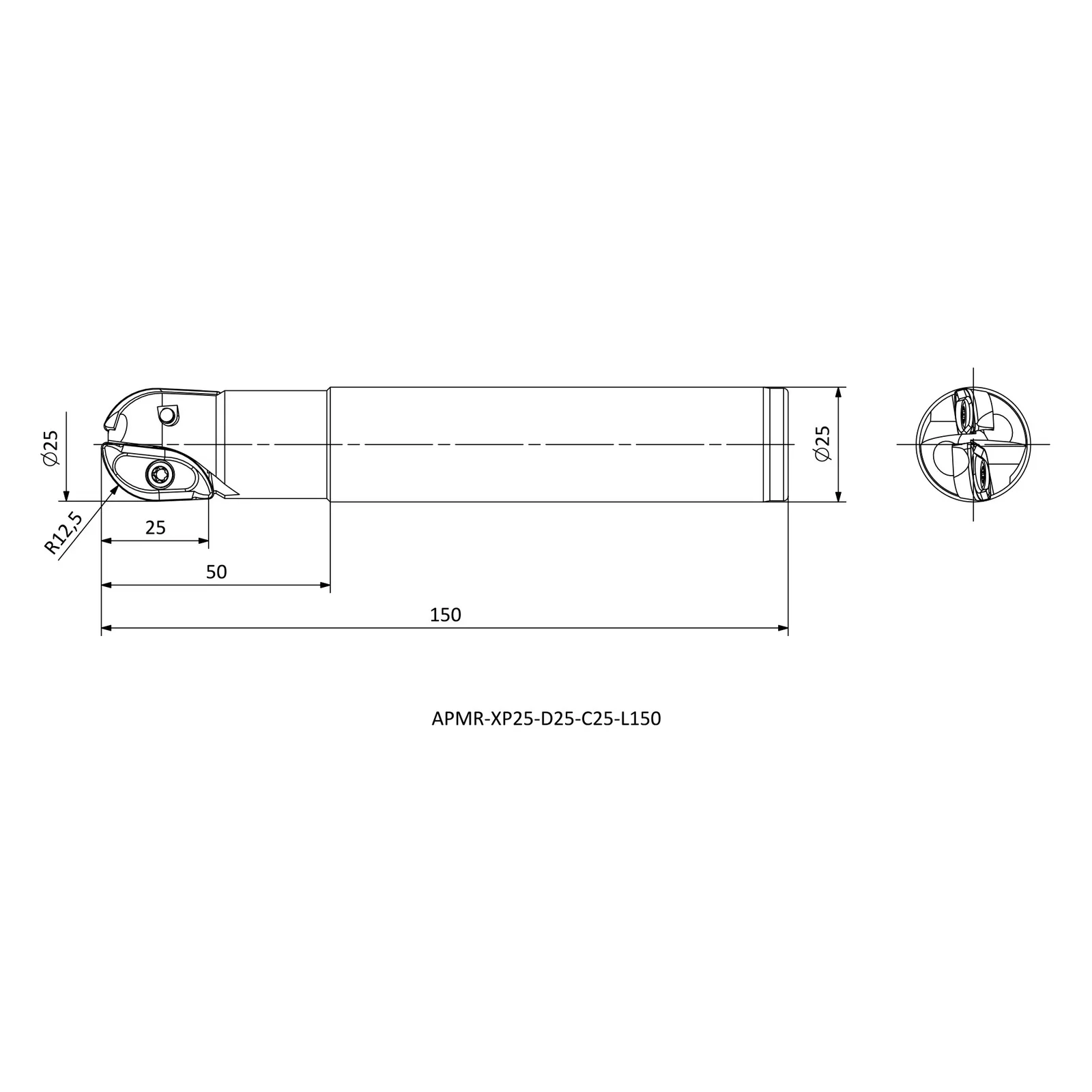

Specifications — APMR-XP25-D25-C25-L150
| Insert Code | Insert designation | XPHT 25R1204 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 25 |
| LH | Head length (mm) | 50 |
| APMX | Depth of cut, maximum (mm) | 25 |
| RE | Corner radius (mm) | 12.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
