Tool Holders / C-System External Turning Toolholders

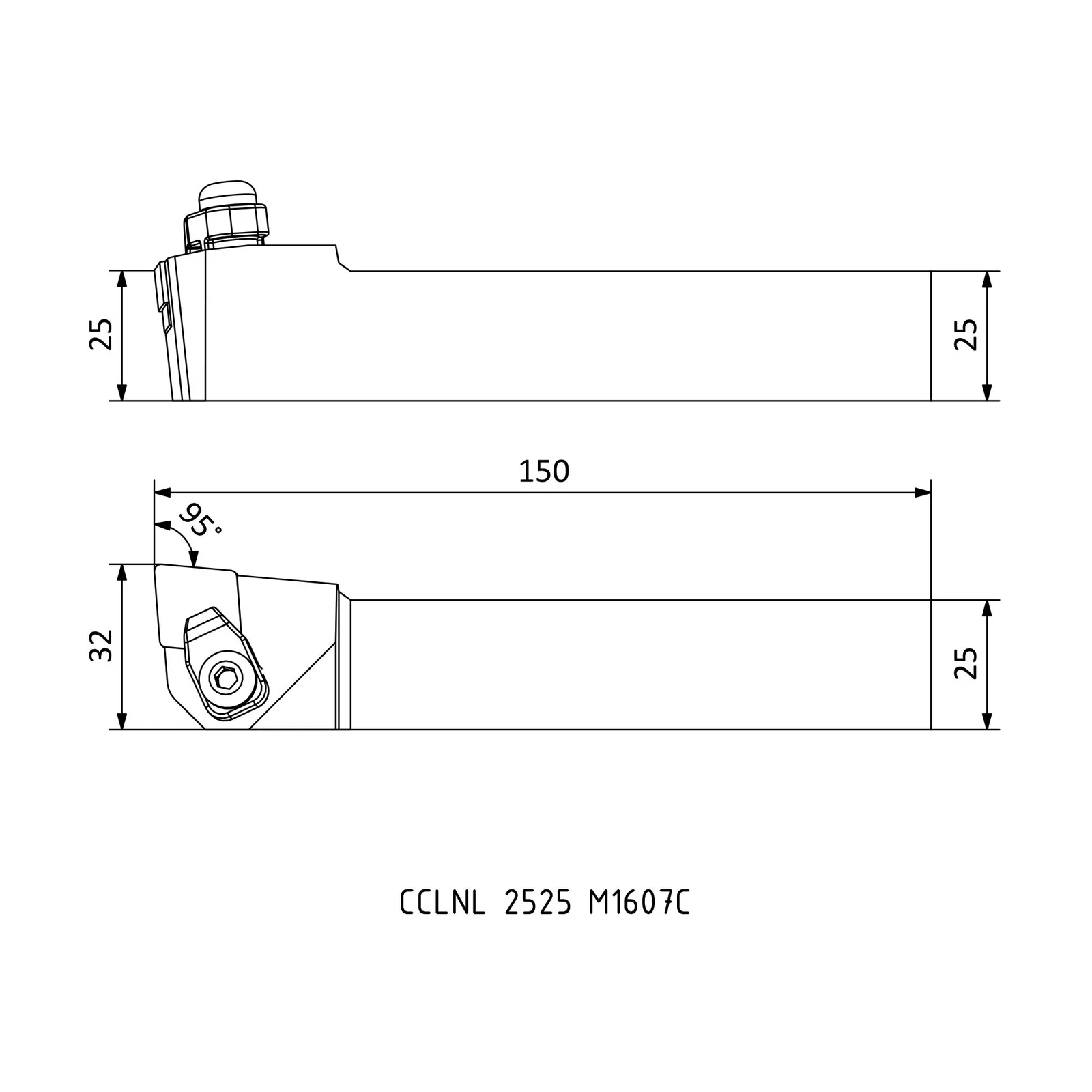

CCLNL 2525 M1607C
CCLNR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation CN.N 1607 (as listed in the catalogue data).
Specifications — CCLNL 2525 M1607C
| Insert Code | Insert designation | CN.N 1607.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in CCLNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| CCLNL 2525 M1207C | L | 150 | 32 | 25 |
| CCLNR 2525 M1207C | R | 150 | 32 | 25 |
| CCLNL 3232 P1207C | L | 150 | 32 | 25 |
| CCLNR 3232 P1207C | R | 150 | 32 | 25 |
| CCLNL 2525 M1607C | L | 170 | 40 | 32 |
| CCLNR 2525 M1607C | R | 170 | 40 | 32 |
