Tool Holders / C-System External Turning Toolholders
CDJNR 3232 P1507C
CDJNR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation DN.N 1507 (as listed in the catalogue data).

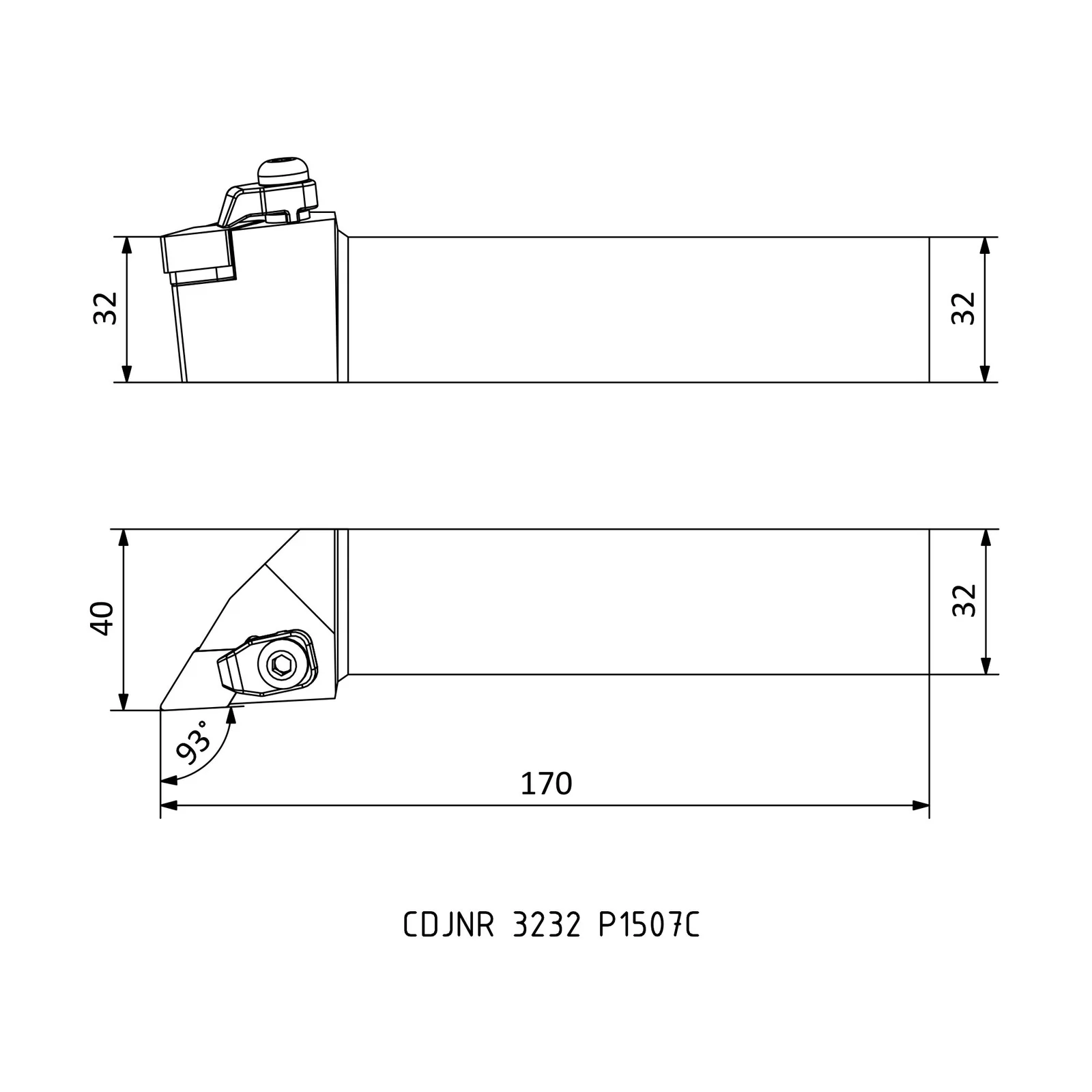

Specifications — CDJNR 3232 P1507C
| Insert Code | Insert designation | DN.N 1507.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| ATUM Ø | ATUM Ø | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in CDJNR/L
| Product code | Cutting direction (hand) | ATUM Ø | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| CDJNL 2525 M1207C | L | 150 | 32 | 25 |
| CDJNR 2525 M1207C | R | 150 | 32 | 25 |
| CDJNL 2525 M1507C | L | 150 | 32 | 25 |
| CDJNR 2525 M1507C | R | 150 | 32 | 25 |
| CDJNL 3232 P1507C | L | 170 | 40 | 32 |
| CDJNR 3232 P1507C | R | 170 | 40 | 32 |
