Tool Holders / C-System Face Milling (ARBOR Type)
AFM90C-TP22-D080-A27-Z06
AFM90C-TP series · see all 13 sizes
Insert compatibility
This size is built for the insert designation TP.. 2204 (as listed in the catalogue data).

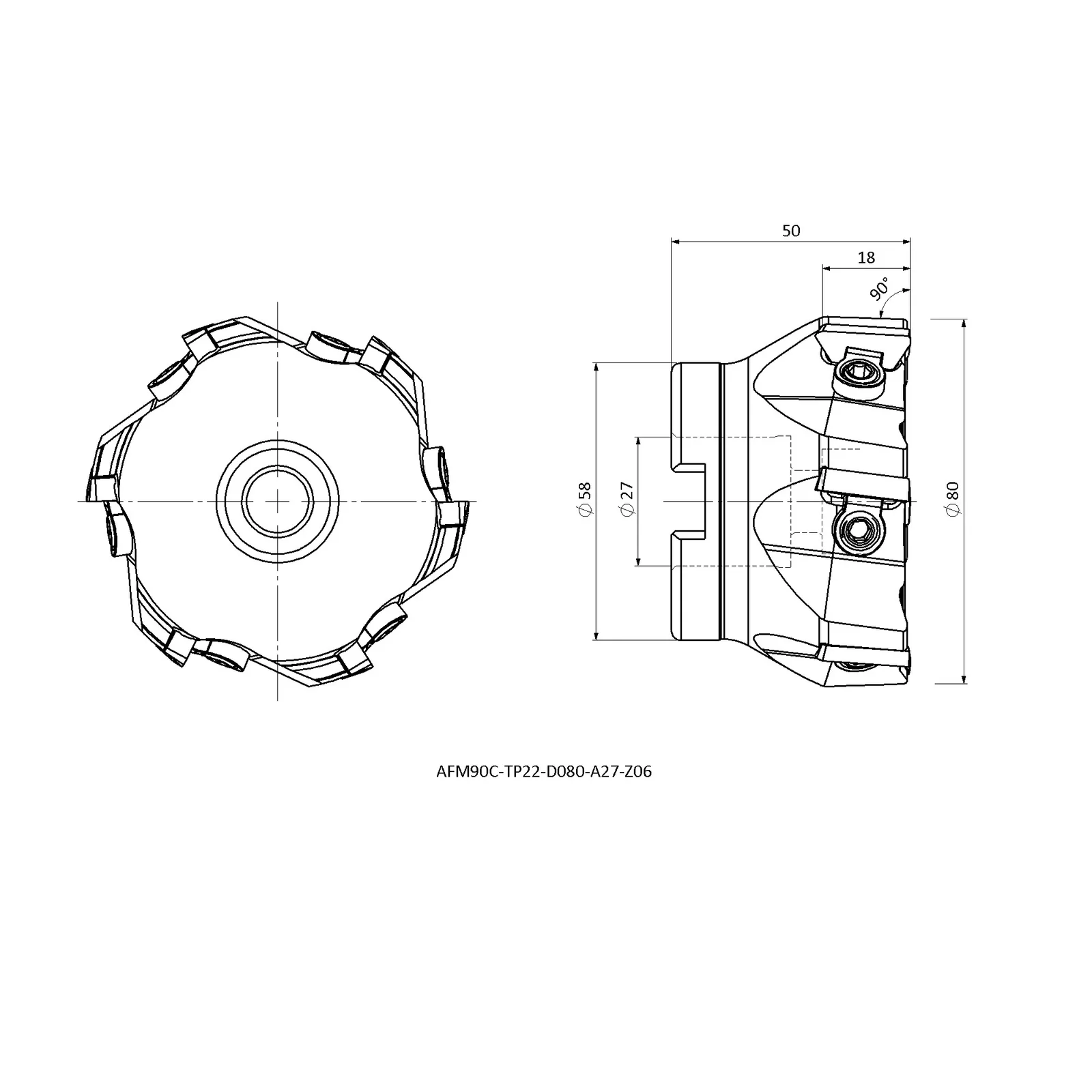

Specifications — AFM90C-TP22-D080-A27-Z06
| Insert Code | Insert designation | TP.. 2204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 80 |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 18 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 13 sizes in AFM90C-TP
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM90C-TP16-D050-A22-Z04 | R | 50 | 22 | 40 |
| AFM90C-TP16-D063-A22-Z06 | R | 63 | 22 | 45 |
| AFM90C-TP16-D080-A27-Z07 | R | 80 | 27 | 50 |
| AFM90C-TP16-D100-A32-Z08 | R | 100 | 32 | 50 |
| AFM90C-TP16-D125-B40-Z08 | R | 125 | 40 | 63 |
| AFM90C-TP22-D063-A22-Z05 | R | 63 | 22 | 45 |
| AFM90C-TP22-D080-A27-Z06 | R | 80 | 27 | 50 |
| AFM90C-TP22-D100-A32-Z07 | R | 100 | 32 | 50 |
| AFM90C-TP22-D125-B40-Z08 | R | 125 | 40 | 63 |
| AFM90C-TP22-D160-C40-Z09 | R | 160 | 40 | 63 |
| AFM90C-TP22-D200-C60-Z12 | R | 200 | 60 | 63 |
| AFM90C-TP22-D250-C60-Z15 | R | 250 | 60 | 63 |
| AFM90C-TP22-D315-D60-Z18 | R | 315 | 60 | 63 |
