Tool Holders / C-System Face Milling (ARBOR Type)
AFM90C-TP22-D160-C40-Z09
AFM90C-TP series · see all 13 sizes
Insert compatibility
This size is built for the insert designation TP.. 2204 (as listed in the catalogue data).

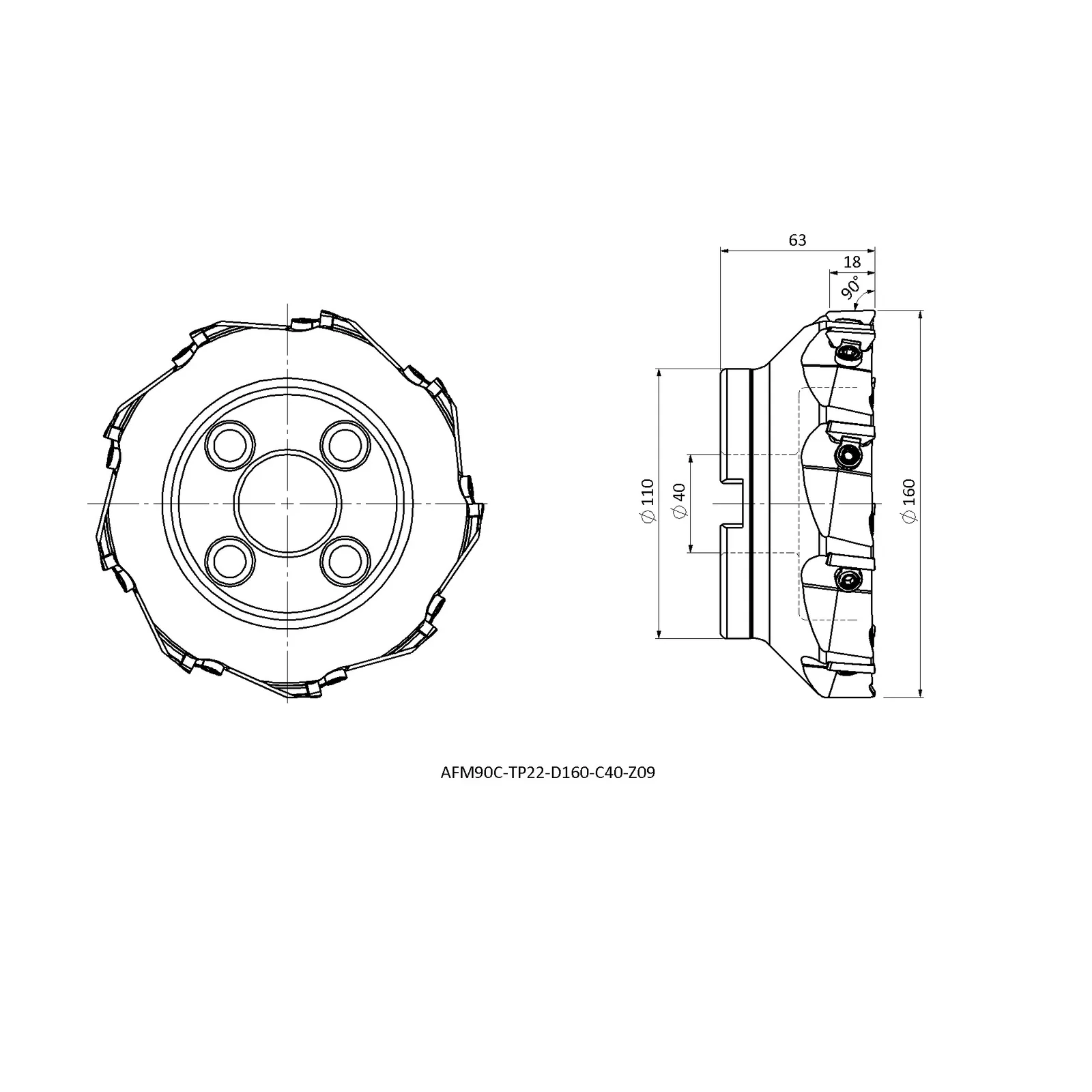

Specifications — AFM90C-TP22-D160-C40-Z09
| Insert Code | Insert designation | TP.. 2204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 160 |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 9 |
| APMX | Depth of cut, maximum (mm) | 18 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
