Tool Holders / Disc Milling
ASDM-SPGT05-D160x6-d40-Z18
ASDM-SPGT series · see all 11 sizes
Insert compatibility
This size is built for the insert designation SPGT 050204 (as listed in the catalogue data).

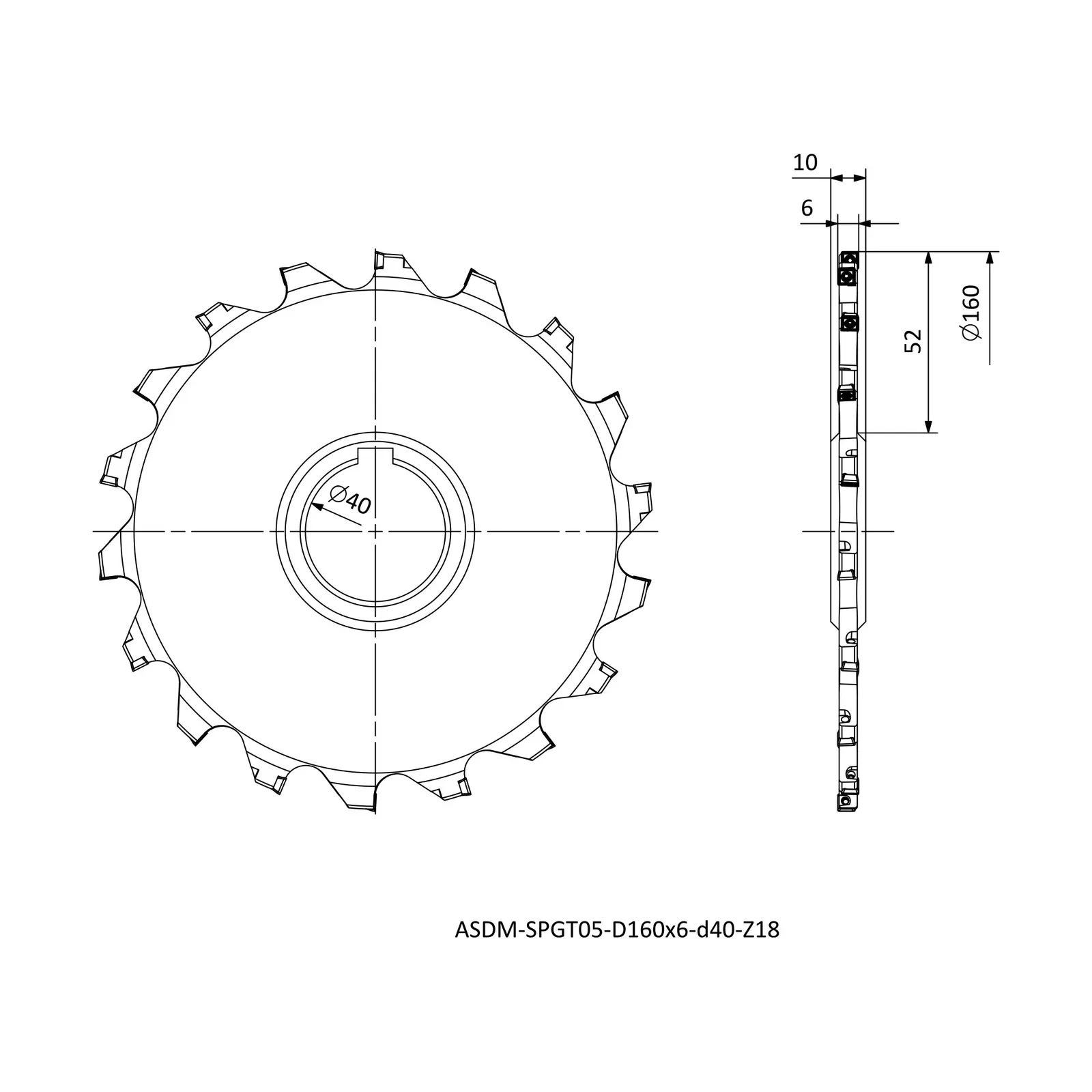

Specifications — ASDM-SPGT05-D160x6-d40-Z18
| Insert Code | Insert designation | SPGT 050204 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 160 |
| DCON | Connection diameter (mm) | 40 |
| ZEFP ETKILI | Effective cutting edges | 9 |
| CW | Cutting width (mm) | 6 |
| ZEFP Toplam | Total cutting edges | 18 |
| CDX | Cutting depth, maximum (mm) | 52 |
| THUB | Thread — 'UB' dim (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
