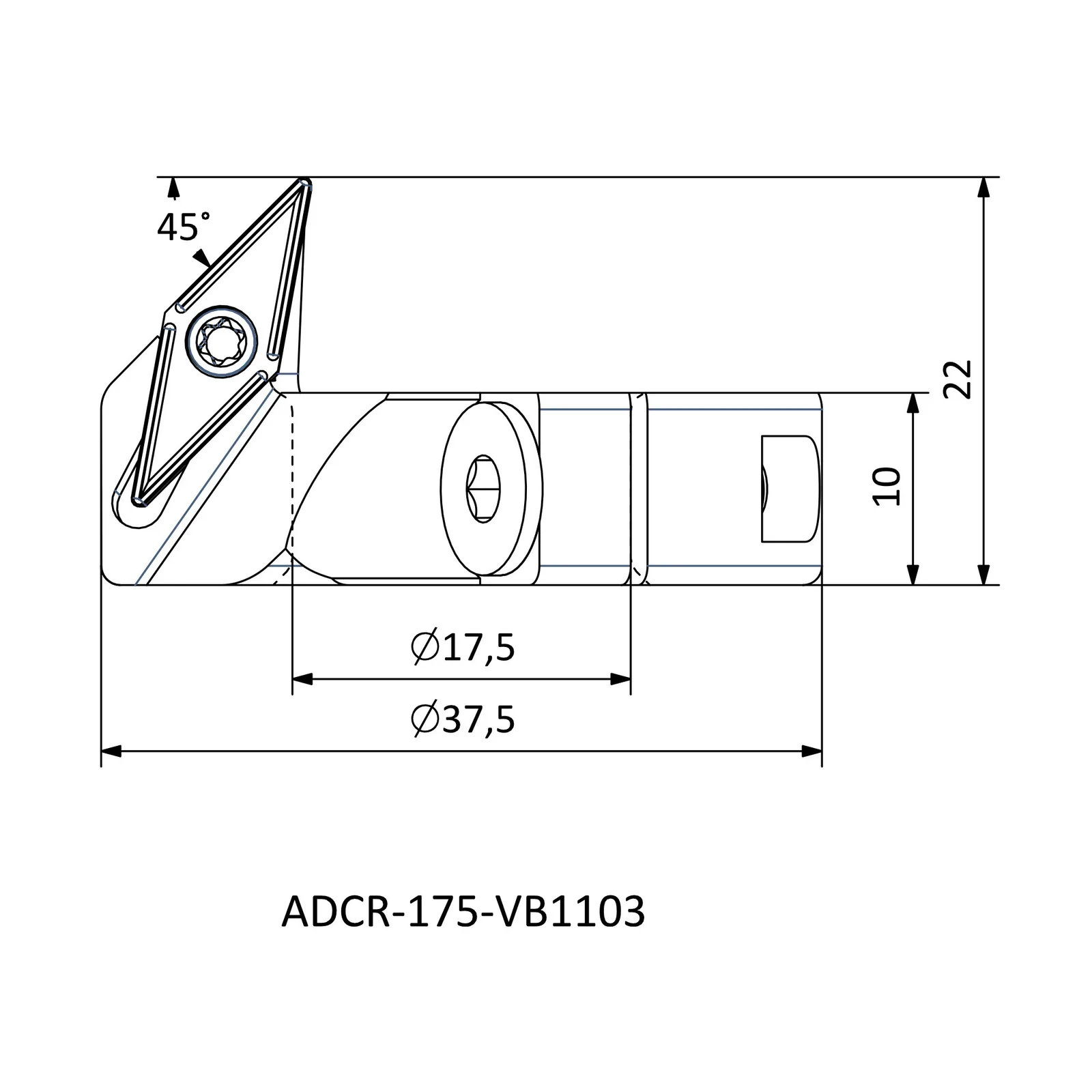

ADCR-175-VB1103

Name: ADCR-175-VB1103
Brand: Axior
SKU: ADCR-175-VB1103

ADCR series · see all 37 sizes

This size is built for the insert designation VB.T 1103 (as listed in the catalogue data).

Specifications — ADCR-175-VB1103

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Connection diameter (mm)	Bore diameter (mm)	Body length (mm)
ADCR-120-VB1103	R	12	32	10
ADCR-125-VB1103	R	12.5	32.5	10
ADCR-130-VB1103	R	13	33	10
ADCR-135-VB1103	R	13.5	33.5	10
ADCR-140-VB1103	R	14	34	10
ADCR-145-VB1103	R	14.5	34.5	10
ADCR-150-VB1103	R	15	35	10
ADCR-155-VB1103	R	15.5	35.5	10
ADCR-160-VB1103	R	16	36	10
ADCR-165-VB1103	R	16.5	36.5	10
ADCR-170-VB1103	R	17	37	10
ADCR-175-VB1103	R	17.5	37.5	10
ADCR-180-VB1103	R	18	38	10
ADCR-185-VB1103	R	18.5	38.5	10
ADCR-190-VB1103	R	19	39	10
ADCR-195-VB1103	R	19.5	39.5	10
ADCR-200-VB1103	R	20	40	10
ADCR-205-VB1103	R	20.5	40.5	10
ADCR-210-VB1103	R	21	41	10
ADCR-215-VB1103	R	21.5	41.5	10
ADCR-220-VB1103	R	22	42	10
ADCR-225-VB1103	R	22.5	42.5	10
ADCR-230-VB1103	R	23	43	10
ADCR-235-VB1103	R	23.5	43.5	10
ADCR-240-VB1103	R	24	44	10
ADCR-245-VB1103	R	24.5	44.5	10
ADCR-250-VB1103	R	25	45	10
ADCR-255-VB1103	R	25.5	45.5	10
ADCR-260-VB1103	R	26	46	10
ADCR-265-VB1103	R	26.5	46.5	10
ADCR-270-VB1103	R	27	47	10
ADCR-275-VB1103	R	27.5	47.5	10
ADCR-280-VB1103	R	28	48	10
ADCR-285-VB1103	R	28.5	48.5	10
ADCR-290-VB1103	R	29	49	10
ADCR-295-VB1103	R	29.5	49.5	10
ADCR-300-VB1103	R	30	50	10
