Tool Holders / External Grooving Toolholders
ADKT-K-R-2525-5-T25-H
ADKT-K-R/L-H series · see all 16 sizes
Insert compatibility
This size is built for the insert designation MGM. - 5 (as listed in the catalogue data).

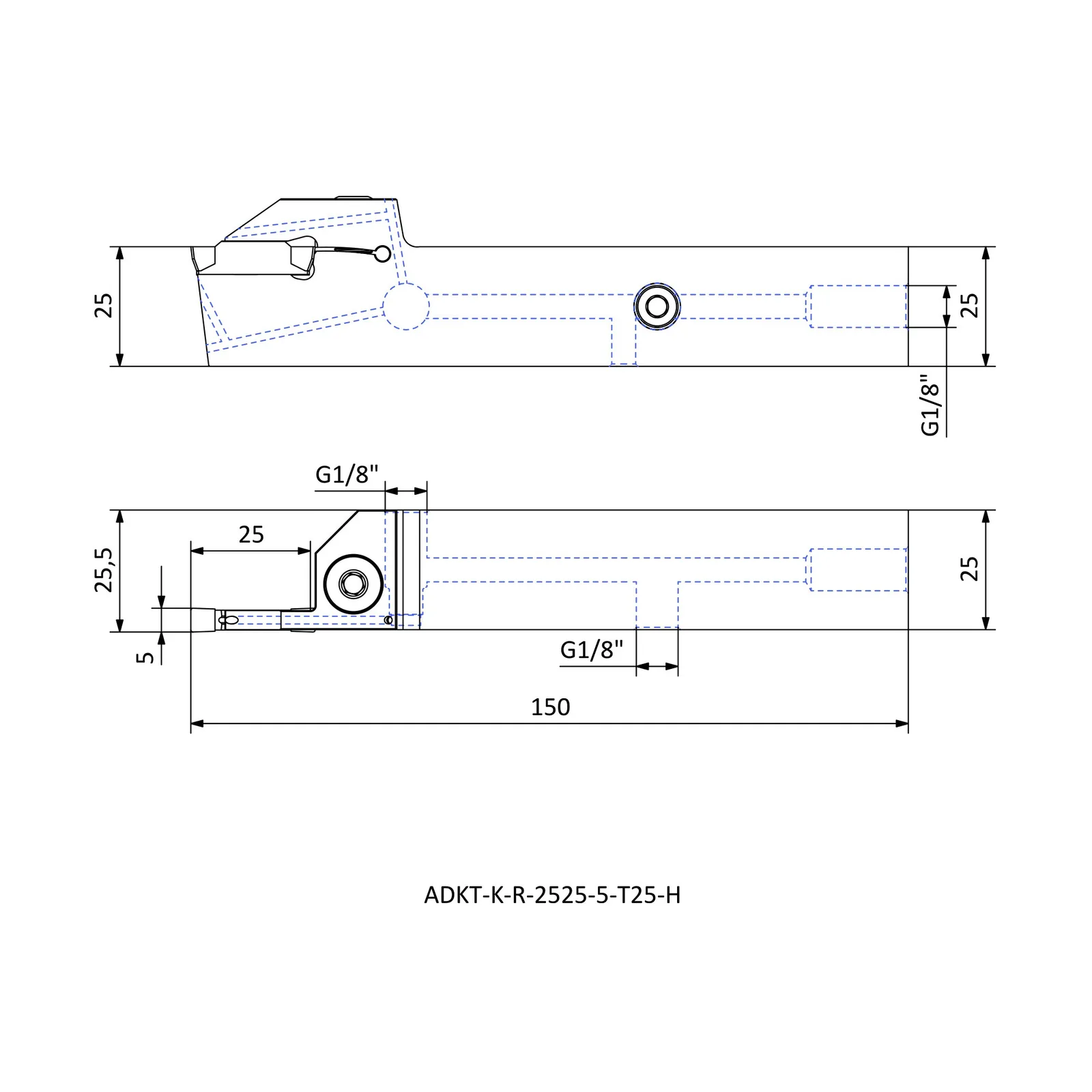

Specifications — ADKT-K-R-2525-5-T25-H
| Insert Code | Insert designation | MGM. - 5 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 25.5 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
| CDX | Cutting depth, maximum (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 16 sizes in ADKT-K-R/L-H
