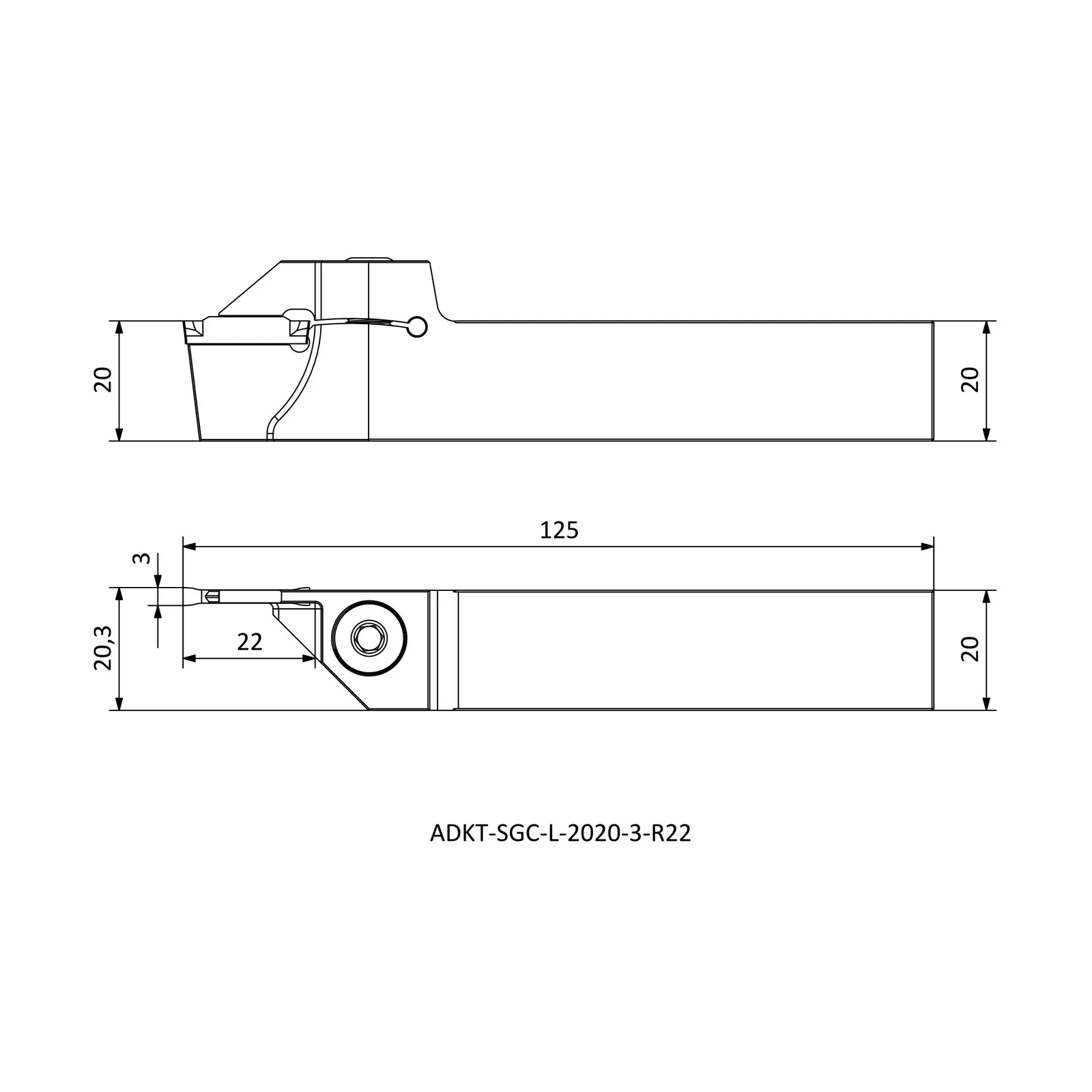

ADKT-SGC-L-2020-3-R22 — dimensioned drawing
Tool Holders / External Grooving Toolholders

ADKT-SGC-L-2020-3-R22

ADKT-SGC-T-R/L series · see all 30 sizes

Insert compatibility

This size is built for the insert designation GCM N 30 (as listed in the catalogue data).

Ask about this size

Specifications — ADKT-SGC-L-2020-3-R22

Insert Code Insert designation GCM N30
Product Direction Cutting direction (hand) L
LF Functional length (mm) 125
WF Functional width (mm) 20.3
HF=H Functional height (mm) 20
B Shank width (mm) 20
CDX Cutting depth, maximum (mm) 22

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 30 sizes in ADKT-SGC-T-R/L

Product codeCutting direction (hand)Functional length (mm)Functional width (mm)Functional height (mm)
ADKT-SGC-L-2525-3-T10 L15025.325
ADKT-SGC-R-2525-3-T10 R15025.325
ADKT-SGC-L-2525-4-T10 L15025.425
ADKT-SGC-R-2525-4-T10 R15025.425
ADKT-SGC-L-2525-4-T15 L15025.425
ADKT-SGC-R-2525-4-T15 R15025.425
ADKT-SGC-L-2525-4-T20 L15025.425
ADKT-SGC-R-2525-4-T20 R15025.425
ADKT-SGC-L-1212-2-R15 L10016.212
ADKT-SGC-R-1212-2-R15 R10016.212
ADKT-SGC-L-1616-2-R15 L12516.216
ADKT-SGC-R-1616-2-R15 R12516.216
ADKT-SGC-L-2020-2-R20 L12520.220
ADKT-SGC-R-2020-2-R20 R12520.220
ADKT-SGC-L-2525-2-R20 L15025.225
ADKT-SGC-R-2525-2-R20 R15025.225
ADKT-SGC-L-1212-3-R15 L10016.312
ADKT-SGC-R-1212-3-R15 R10016.312
ADKT-SGC-L-1616-3-T12 L12516.316
ADKT-SGC-R-1616-3-T12 R12516.316
ADKT-SGC-L-1616-3-R15 L12516.316
ADKT-SGC-R-1616-3-R15 R12516.316
ADKT-SGC-L-2020-3-R22 L12520.320
ADKT-SGC-R-2020-3-R22 R12520.320
ADKT-SGC-L-2525-3-R15 L15025.325
ADKT-SGC-R-2525-3-R15 R15025.325
ADKT-SGC-L-2525-3-R22 L15025.325
ADKT-SGC-R-2525-3-R22 R15025.325
ADKT-SGC-L-2525-4-R25 L15025.425
ADKT-SGC-R-2525-4-R25 R15025.425
