Tool Holders / External Grooving Toolholders

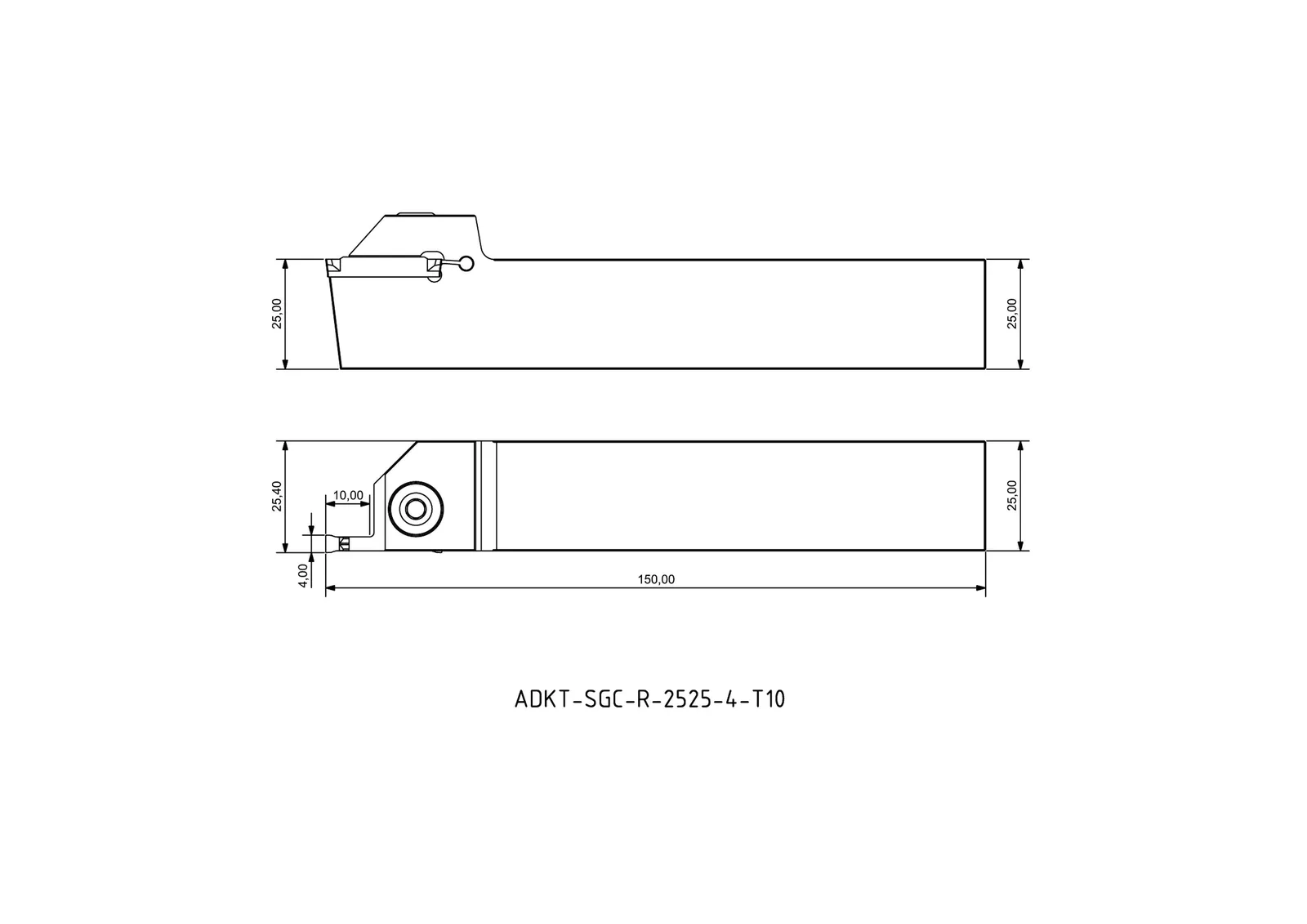

ADKT-SGC-R-2525-4-T10

Name: ADKT-SGC-R-2525-4-T10
Brand: Axior
SKU: ADKT-SGC-R-2525-4-T10

ADKT-SGC-T-R/L series · see all 30 sizes

This size is built for the insert designation GCM N 40 (as listed in the catalogue data).

Specifications — ADKT-SGC-R-2525-4-T10

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Functional length (mm)	Functional width (mm)	Functional height (mm)
ADKT-SGC-L-2525-3-T10	L	150	25.3	25
ADKT-SGC-R-2525-3-T10	R	150	25.3	25
ADKT-SGC-L-2525-4-T10	L	150	25.4	25
ADKT-SGC-R-2525-4-T10	R	150	25.4	25
ADKT-SGC-L-2525-4-T15	L	150	25.4	25
ADKT-SGC-R-2525-4-T15	R	150	25.4	25
ADKT-SGC-L-2525-4-T20	L	150	25.4	25
ADKT-SGC-R-2525-4-T20	R	150	25.4	25
ADKT-SGC-L-1212-2-R15	L	100	16.2	12
ADKT-SGC-R-1212-2-R15	R	100	16.2	12
ADKT-SGC-L-1616-2-R15	L	125	16.2	16
ADKT-SGC-R-1616-2-R15	R	125	16.2	16
ADKT-SGC-L-2020-2-R20	L	125	20.2	20
ADKT-SGC-R-2020-2-R20	R	125	20.2	20
ADKT-SGC-L-2525-2-R20	L	150	25.2	25
ADKT-SGC-R-2525-2-R20	R	150	25.2	25
ADKT-SGC-L-1212-3-R15	L	100	16.3	12
ADKT-SGC-R-1212-3-R15	R	100	16.3	12
ADKT-SGC-L-1616-3-T12	L	125	16.3	16
ADKT-SGC-R-1616-3-T12	R	125	16.3	16
ADKT-SGC-L-1616-3-R15	L	125	16.3	16
ADKT-SGC-R-1616-3-R15	R	125	16.3	16
ADKT-SGC-L-2020-3-R22	L	125	20.3	20
ADKT-SGC-R-2020-3-R22	R	125	20.3	20
ADKT-SGC-L-2525-3-R15	L	150	25.3	25
ADKT-SGC-R-2525-3-R15	R	150	25.3	25
ADKT-SGC-L-2525-3-R22	L	150	25.3	25
ADKT-SGC-R-2525-3-R22	R	150	25.3	25
ADKT-SGC-L-2525-4-R25	L	150	25.4	25
ADKT-SGC-R-2525-4-R25	R	150	25.4	25
