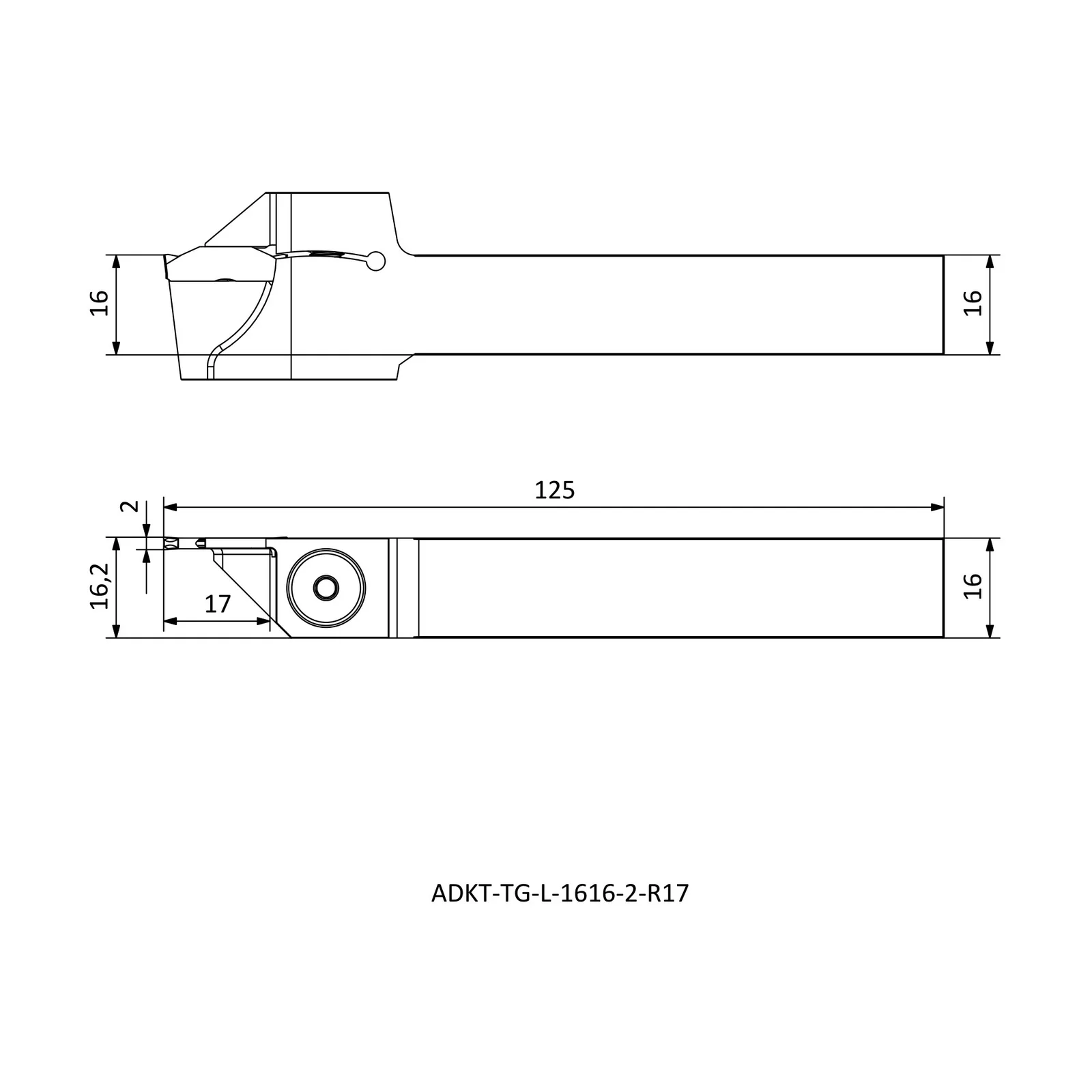

ADKT-TG-L-1616-2-R17

Name: ADKT-TG-L-1616-2-R17
Brand: Axior
SKU: ADKT-TG-L-1616-2-R17

ADKT-TG-R/L series · see all 38 sizes

This size is built for the insert designation DGM 2 (as listed in the catalogue data).

Specifications — ADKT-TG-L-1616-2-R17

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Functional length (mm)	Functional width (mm)	Functional height (mm)
ADKT-TG-R-2525-2-T12	R	150	25.2	25
ADKT-TG-L-2525-2-T12	L	150	25.2	25
ADKT-TG-L-1616-2-R17	L	125	16.2	16
ADKT-TG-R-1616-2-R17	R	125	16.2	16
ADKT-TG-L-2020-2-T8	L	125	20.2	20
ADKT-TG-R-2020-2-T8	R	125	20.2	20
ADKT-TG-L-2020-2-R12	L	125	20.2	20
ADKT-TG-R-2020-2-R12	R	125	20.2	20
ADKT-TG-L-2020-2-R17	L	125	20.2	20
ADKT-TG-R-2020-2-R17	R	125	20.2	20
ADKT-TG-L-2525-2-R12	L	150	25.2	25
ADKT-TG-R-2525-2-R12	R	150	25.2	25
ADKT-TG-L-2525-2-R17	L	150	25.2	25
ADKT-TG-R-2525-2-R17	R	150	25.2	25
ADKT-TG-L-1616-3-T20	L	125	16.3	16
ADKT-TG-R-1616-3-T20	R	125	16.3	16
ADKT-TG-L-2020-3-T12	L	125	20.3	20
ADKT-TG-R-2020-3-T12	R	125	20.3	20
ADKT-TG-L-2020-3-T20	L	125	20.3	20
ADKT-TG-R-2020-3-T20	R	125	20.3	20
ADKT-TG-L-2525-3-T9	L	150	25.3	25
ADKT-TG-R-2525-3-T9	R	150	25.3	25
ADKT-TG-L-2525-3-T20	L	150	25.3	25
ADKT-TG-R-2525-3-T20	R	150	25.3	25
ADKT-TG-L-2525-3-R25	L	150	25.3	25
ADKT-TG-R-2525-3-R25	R	150	25.3	25
ADKT-TG-L-2525-4-T15	L	150	25.5	25
ADKT-TG-R-2525-4-T15	R	150	25.5	25
ADKT-TG-L-2525-4-T20	L	150	15.5	25
ADKT-TG-R-2525-4-T20	R	150	15.5	25
ADKT-TG-L-2525-4-T25	L	150	25.5	25
ADKT-TG-R-2525-4-T25	R	150	25.5	25
ADKT-TG-L-2525-5-T12	L	150	25.5	25
ADKT-TG-R-2525-5-T12	R	150	25.5	25
ADKT-TG-L-2525-5-T25	L	150	25.5	25
ADKT-TG-R-2525-5-T25	R	150	25.5	25
ADKT-TG-L-2525-5-T32	L	150	25.5	25
ADKT-TG-R-2525-5-T32	R	150	25.5	25
