Tool Holders / External Grooving Toolholders
ADKT-TG-L-2525-3-T9
ADKT-TG-R/L series · see all 38 sizes
Insert compatibility
This size is built for the insert designation DGM 3 (as listed in the catalogue data).

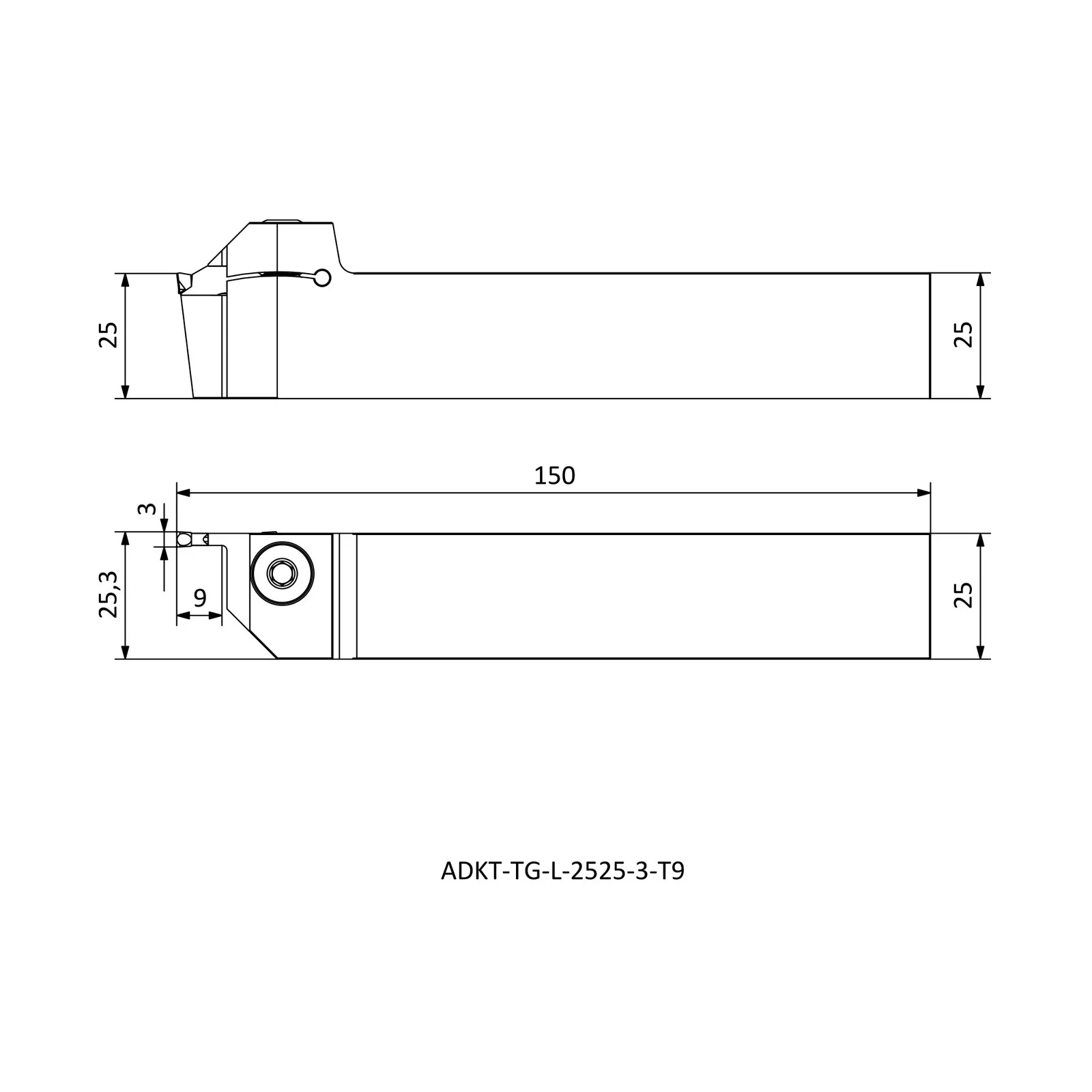

Specifications — ADKT-TG-L-2525-3-T9
| Insert Code | Insert designation | DGM3-020 |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 25.3 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
| CDX | Cutting depth, maximum (mm) | 9 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
