Tool Holders / Face Milling (ARBOR Type)
AFM45-ON0806-D100-A32-Z07-H
AFM45-ON-ISO series · see all 18 sizes
Insert compatibility
This size is built for the insert designation ON.. 0806 (as listed in the catalogue data).

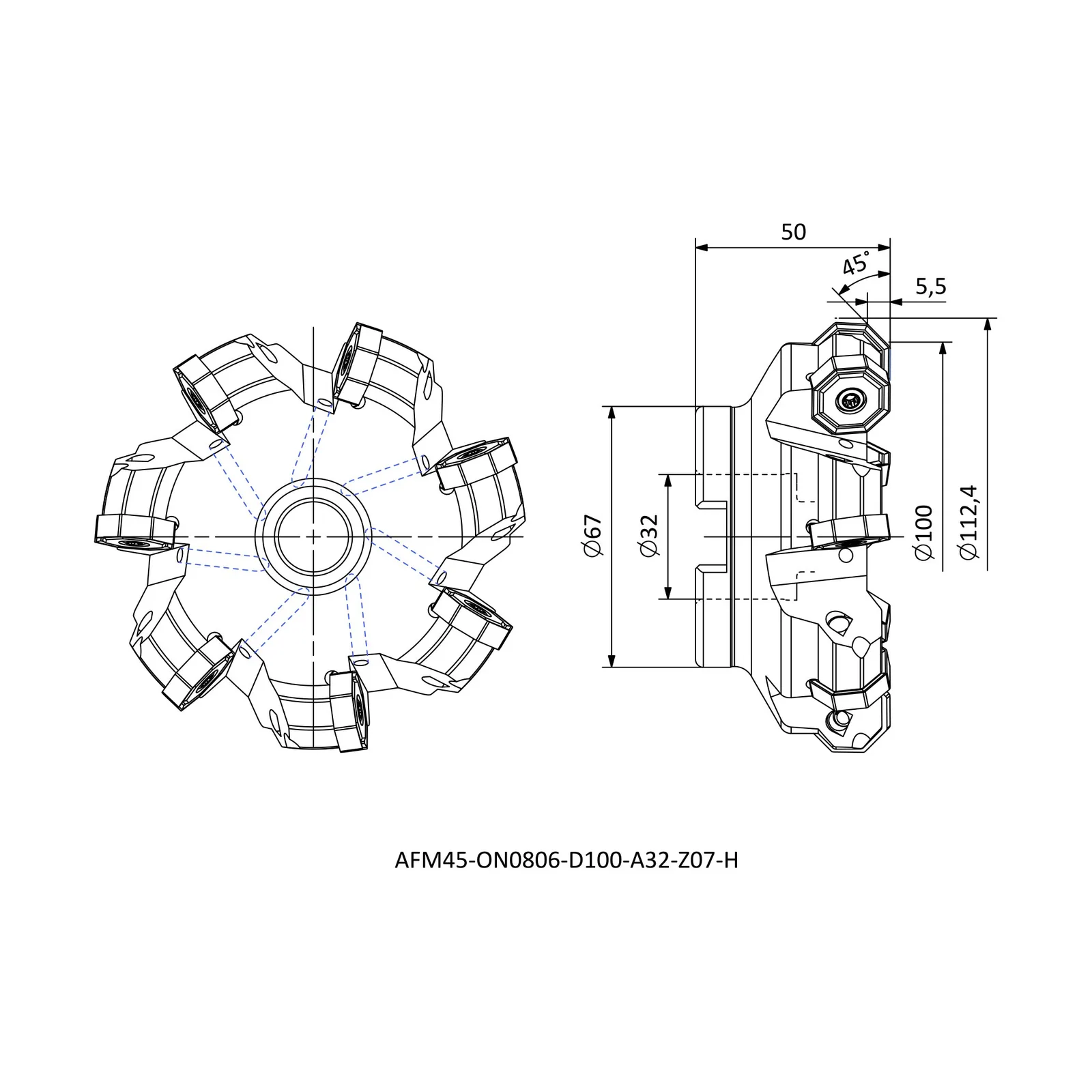

Specifications — AFM45-ON0806-D100-A32-Z07-H
| Insert Code | Insert designation | ON.. 0806.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 100 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 5.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in AFM45-ON-ISO
