Tool Holders / Face Milling (ARBOR Type)
AFM45-ON0806-D200-C60-Z12
AFM45-ON-ISO series · see all 18 sizes
Insert compatibility
This size is built for the insert designation ON.. 0806 (as listed in the catalogue data).

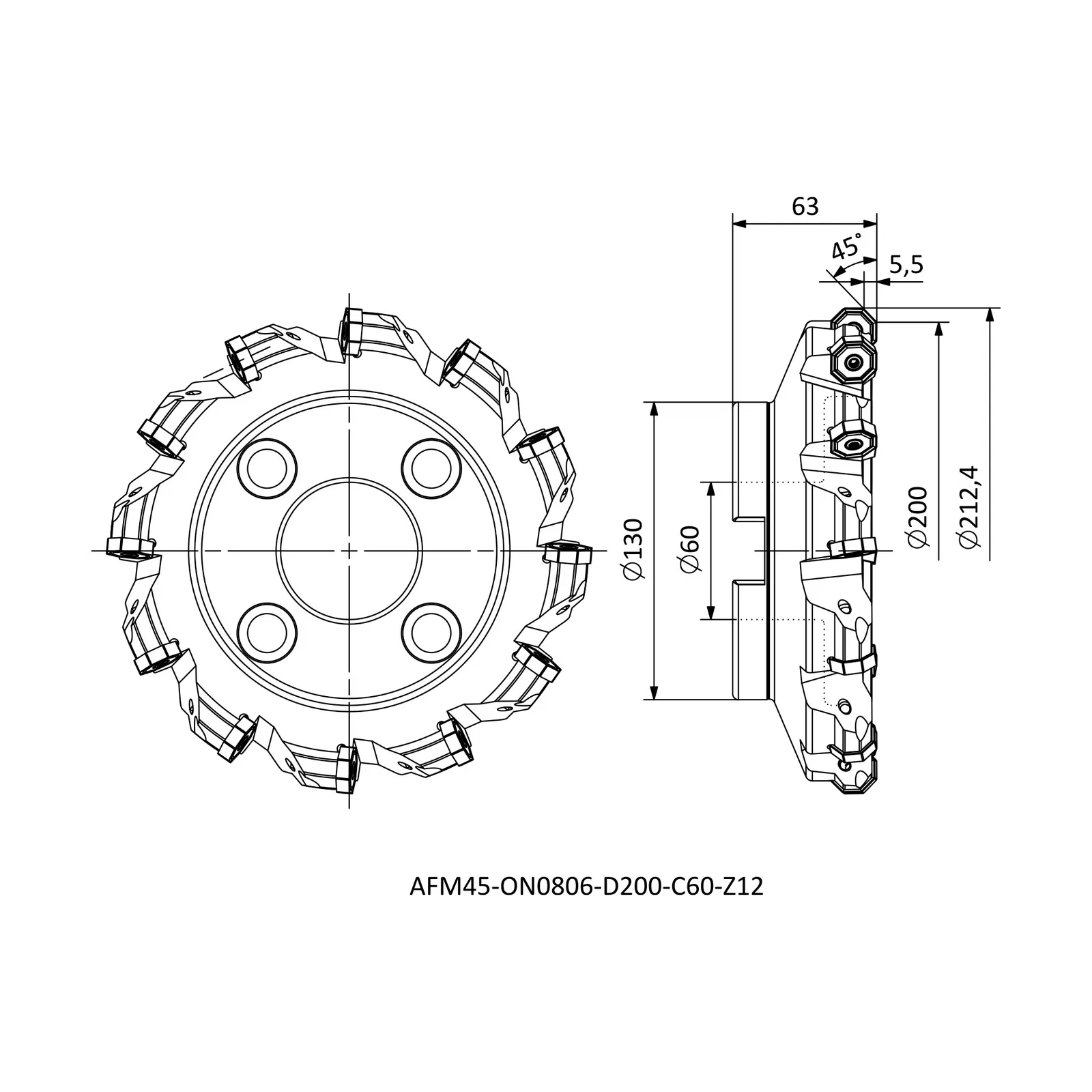

Specifications — AFM45-ON0806-D200-C60-Z12
| Insert Code | Insert designation | ON.. 0806.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 200 |
| DCON | Connection diameter (mm) | 60 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 12 |
| APMX | Depth of cut, maximum (mm) | 5.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in AFM45-ON-ISO
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM45-ON0806-D050-A22-Z04-H | R | 50 | 22 | 40 |
| AFM45-ON0806-D063-A22-Z05-H | R | 63 | 22 | 40 |
| AFM45-ON0806-D063-A22-Z06-H | R | 63 | 22 | 40 |
| AFM45-ON0806-D063-A22-Z07-H | R | 63 | 22 | 50 |
| AFM45-ON0806-D080-A27-Z06-H | R | 80 | 27 | 50 |
| AFM45-ON0806-D080-A27-Z08-H | R | 80 | 27 | 50 |
| AFM45-ON0806-D100-A32-Z10-H | R | 100 | 32 | 50 |
| AFM45-ON0806-D100-A32-Z10 | R | 100 | 32 | 50 |
| AFM45-ON0806-D100-A32-Z07-H | R | 100 | 32 | 50 |
| AFM45L-ON0806-D100-A32-Z10-H | R | 100 | 32 | 50 |
| AFM45-ON0806-D125-B40-Z08 | R | 125 | 40 | 63 |
| AFM45L-ON0806-D125-B40-Z08 | R | 125 | 40 | 63 |
| AFM45-ON0806-D125-B40-Z12 | R | 125 | 40 | 63 |
| AFM45-ON0806-D160-C40-Z10 | R | 160 | 40 | 63 |
| AFM45-ON0806-D160-C40-Z14 | R | 160 | 40 | 63 |
| AFM45-ON0806-D200-C60-Z12 | R | 200 | 60 | 63 |
| AFM45-ON0806-D250-C60-Z14 | R | 250 | 60 | 63 |
| AFM45-ON0806-D315-D60-Z16 | R | 315 | 60 | 63 |
