Tool Holders / Face Milling (ARBOR Type)

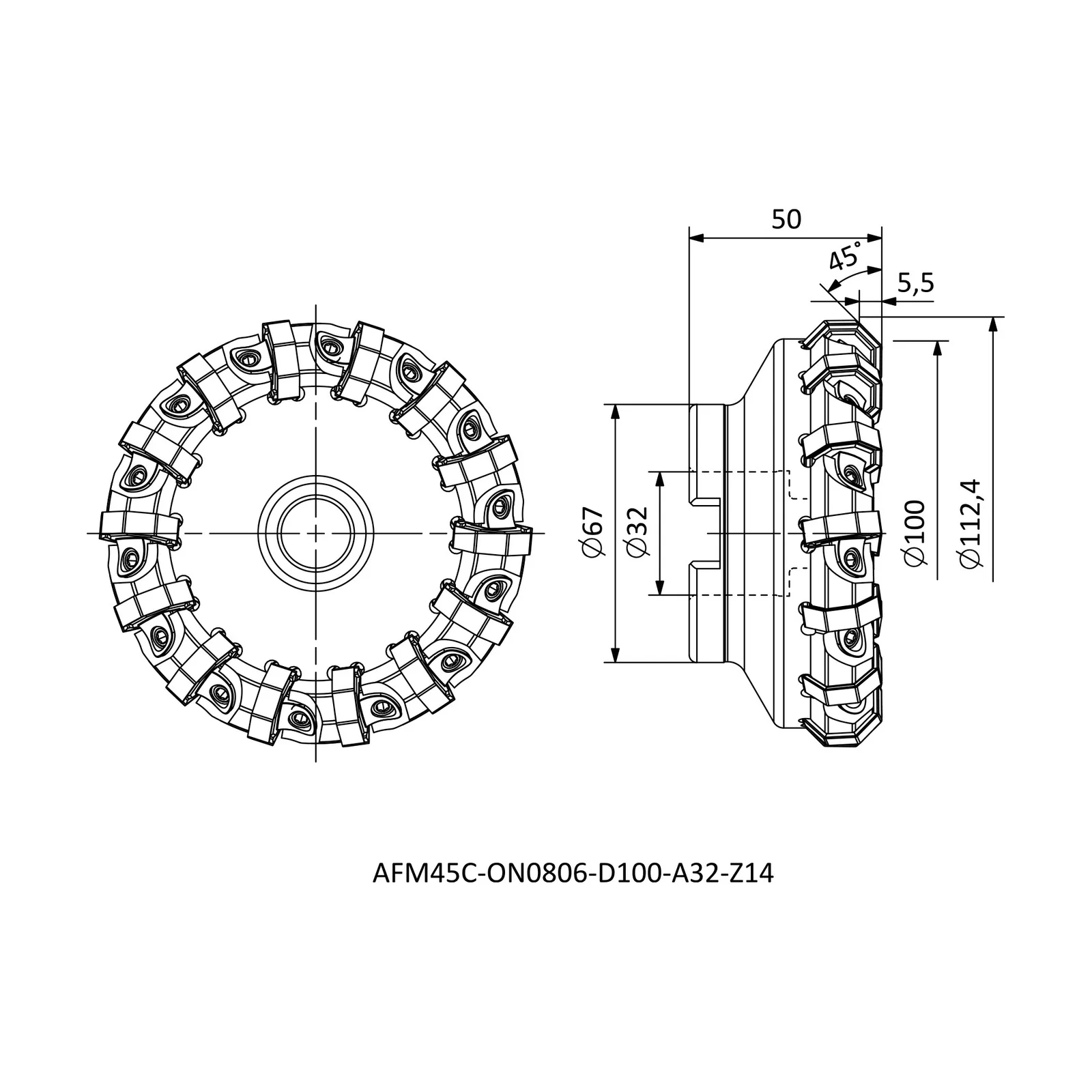

AFM45C-ON0806-D100-A32-Z14
AFM45C-ON series · see all 5 sizes
Insert compatibility
This size is built for the insert designation ON.. 0806 (as listed in the catalogue data).
Specifications — AFM45C-ON0806-D100-A32-Z14
| Insert Code | Insert designation | ON.. 0806.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 100 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 14 |
| APMX | Depth of cut, maximum (mm) | 5.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AFM45C-ON
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM45C-ON0806-D063-A22-Z08 | R | 63 | 22 | 50 |
| AFM45C-ON0806-D080-A27-Z10 | R | 80 | 27 | 50 |
| AFM45C-ON0806-D100-A32-Z14 | R | 100 | 32 | 50 |
| AFM45C-ON0806-D125-B40-Z18 | R | 125 | 40 | 63 |
| AFM45C-ON0806-D160-C40-Z22 | R | 160 | 40 | 63 |
