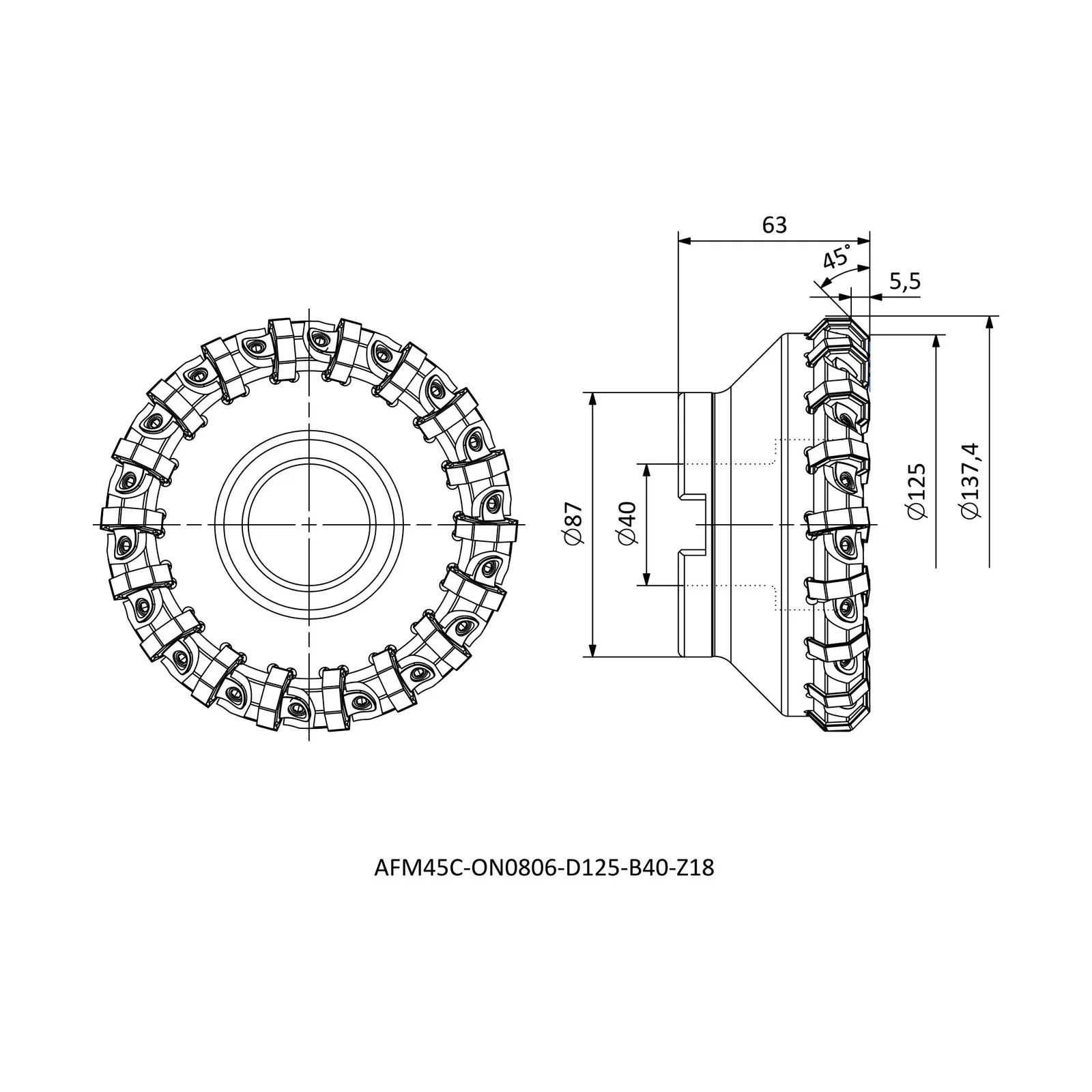

Drag to rotate — real 3D model from the CAD file
Tool Holders / Face Milling (ARBOR Type)
AFM45C-ON0806-D125-B40-Z18
AFM45C-ON series · see all 5 sizes
Insert compatibility
This size is built for the insert designation ON.. 0806 (as listed in the catalogue data).
Specifications — AFM45C-ON0806-D125-B40-Z18
| Insert Code | Insert designation | ON.. 0806.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 125 |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 18 |
| APMX | Depth of cut, maximum (mm) | 5.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
