Tool Holders / Face Milling (ARBOR Type)
AFM90-BD11T3-D040-A16-Z05-H
AFM90-BD series · see all 11 sizes
Insert compatibility
This size is built for the insert designation BDMT 11T3 (as listed in the catalogue data).

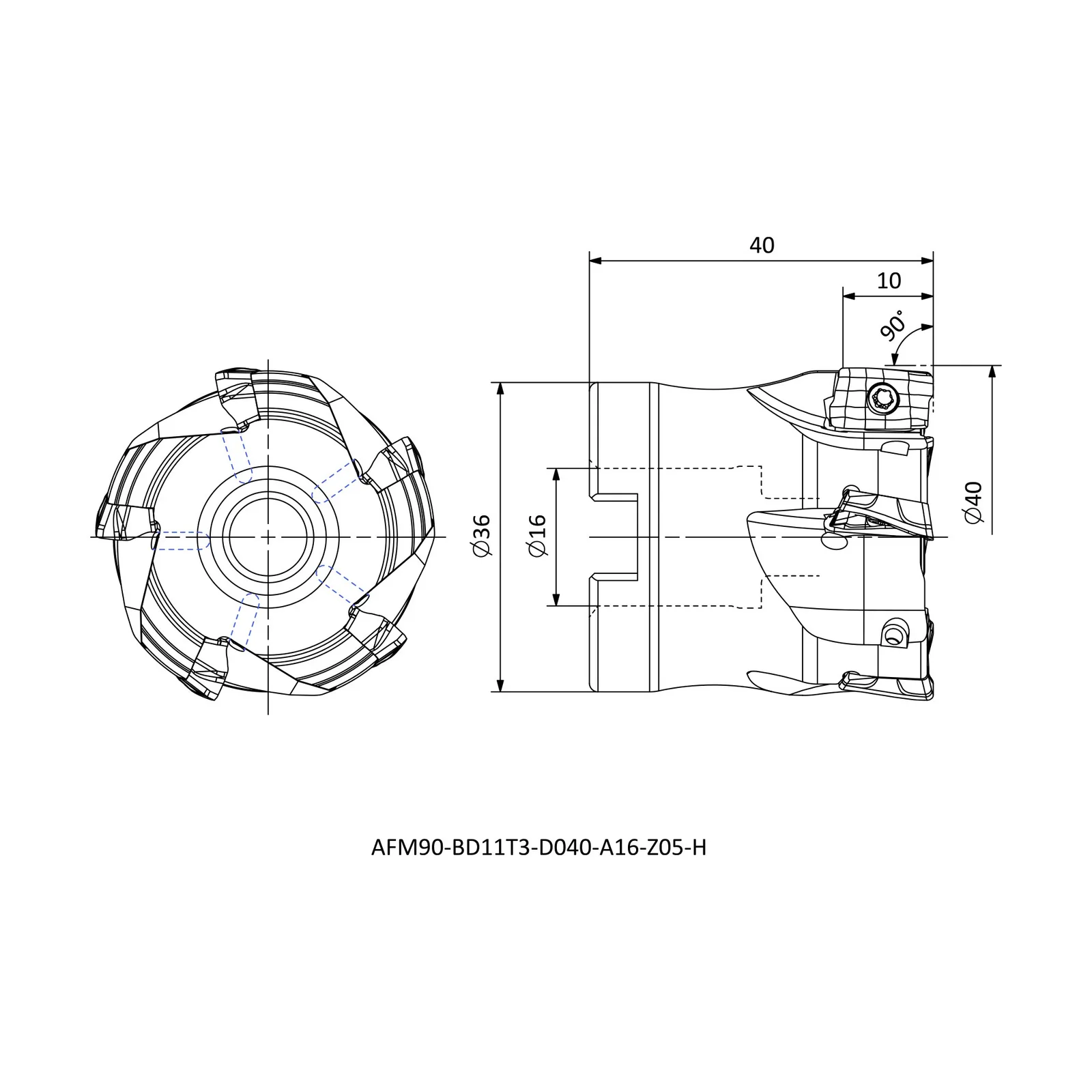

Specifications — AFM90-BD11T3-D040-A16-Z05-H
| Insert Code | Insert designation | BDMT 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 40 |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 11 sizes in AFM90-BD
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM90-BD11T3-D080-A27-Z09-H | R | 80 | 27 | 50 |
| AFM90-BD11T3-D040-A16-Z04-H | R | 40 | 16 | 40 |
| AFM90-BD11T3-D040-A16-Z05-H | R | 40 | 16 | 40 |
| AFM90-BD1704-D050-A22-Z05-H | R | 50 | 22 | 40 |
| AFM90-BD11T3-D063-A22-Z06-H | R | 63 | 22 | 40 |
| AFM90-BD1704-D050-A22-Z04-H | R | 50 | 22 | 40 |
| AFM90-BD11T3-D050-A22-Z05-H | R | 50 | 22 | 40 |
| AFM90-BD1704-D063-A22-Z06-H | R | 63 | 22 | 40 |
| AFM90-BD1704-D080-A27-Z06-H | R | 80 | 27 | 50 |
| AFM90-BD1704-D080-A27-Z07-H | R | 80 | 27 | 50 |
| AFM90-BD1704-D100-A32-Z07-H | R | 100 | 32 | 50 |
