Tool Holders / Face Milling (ARBOR Type)

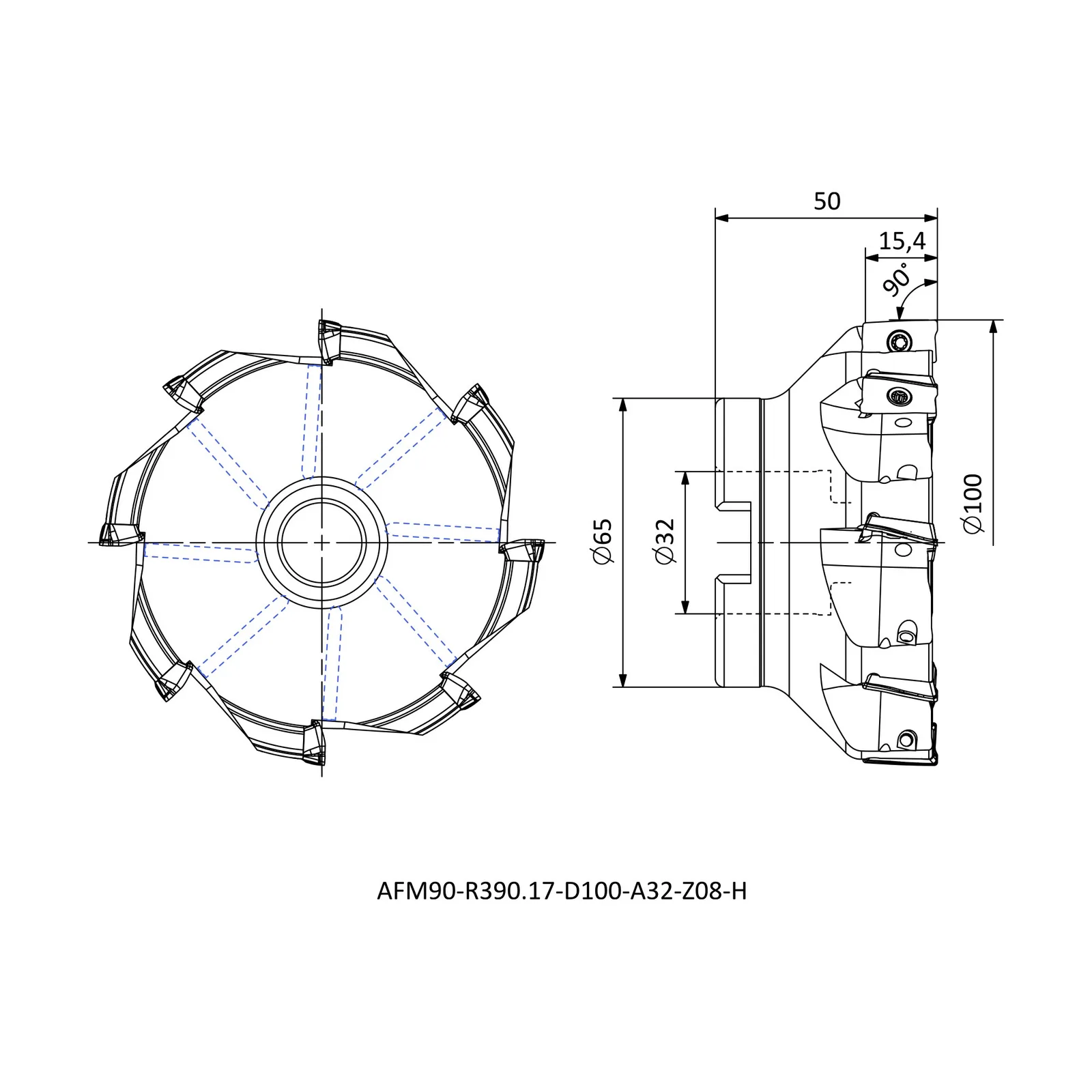

AFM90-R390.17-D100-A32-Z08-H
AFM90-R390 series · see all 15 sizes
Insert compatibility
This size is built for the insert designation R 390 (as listed in the catalogue data).
Specifications — AFM90-R390.17-D100-A32-Z08-H
| Insert Code | Insert designation | R390-1704.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 100 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 8 |
| APMX | Depth of cut, maximum (mm) | 15.4 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 15 sizes in AFM90-R390
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM90-R390.11-D040-A16-Z05-H | R | 40 | 16 | 40 |
| AFM90-R390.11-D050-A22-Z06-H | R | 50 | 22 | 40 |
| AFM90-R390.11-D063-A22-Z07-H | R | 63 | 22 | 40 |
| AFM90-R390.11-D080-A27-Z09-H | R | 80 | 27 | 40 |
| AFM90-R390.17-D040-A16-Z04-H | R | 40 | 16 | 40 |
| AFM90-R390.17-D050-A22-Z05-H | R | 50 | 22 | 40 |
| AFM90-R390.17-D063-A22-Z06-H | R | 63 | 22 | 40 |
| AFM90-R390.17-D080-A27-Z07-H | R | 80 | 27 | 50 |
| AFM90-R390.17-D100-A32-Z08-H | R | 100 | 32 | 50 |
| AFM90-R390.17-D125-B40-Z09 | R | 125 | 40 | 63 |
| AFM90-R390.18-D050-A22-Z04-H | R | 50 | 22 | 40 |
| AFM90-R390.18-D063-A22-Z05-H | R | 63 | 27 | 40 |
| AFM90-R390.18-D080-A27-Z06-H | R | 80 | 27 | 50 |
| AFM90-R390.18-D100-A32-Z07-H | R | 100 | 32 | 50 |
| AFM90-R390.18-D125-B40-Z08 | R | 125 | 40 | 63 |
