Tool Holders / Face Milling (ARBOR Type)
AFM90-R390.18-D063-A22-Z05-H
AFM90-R390 series · see all 15 sizes
Insert compatibility
This size is built for the insert designation R 390 (as listed in the catalogue data).

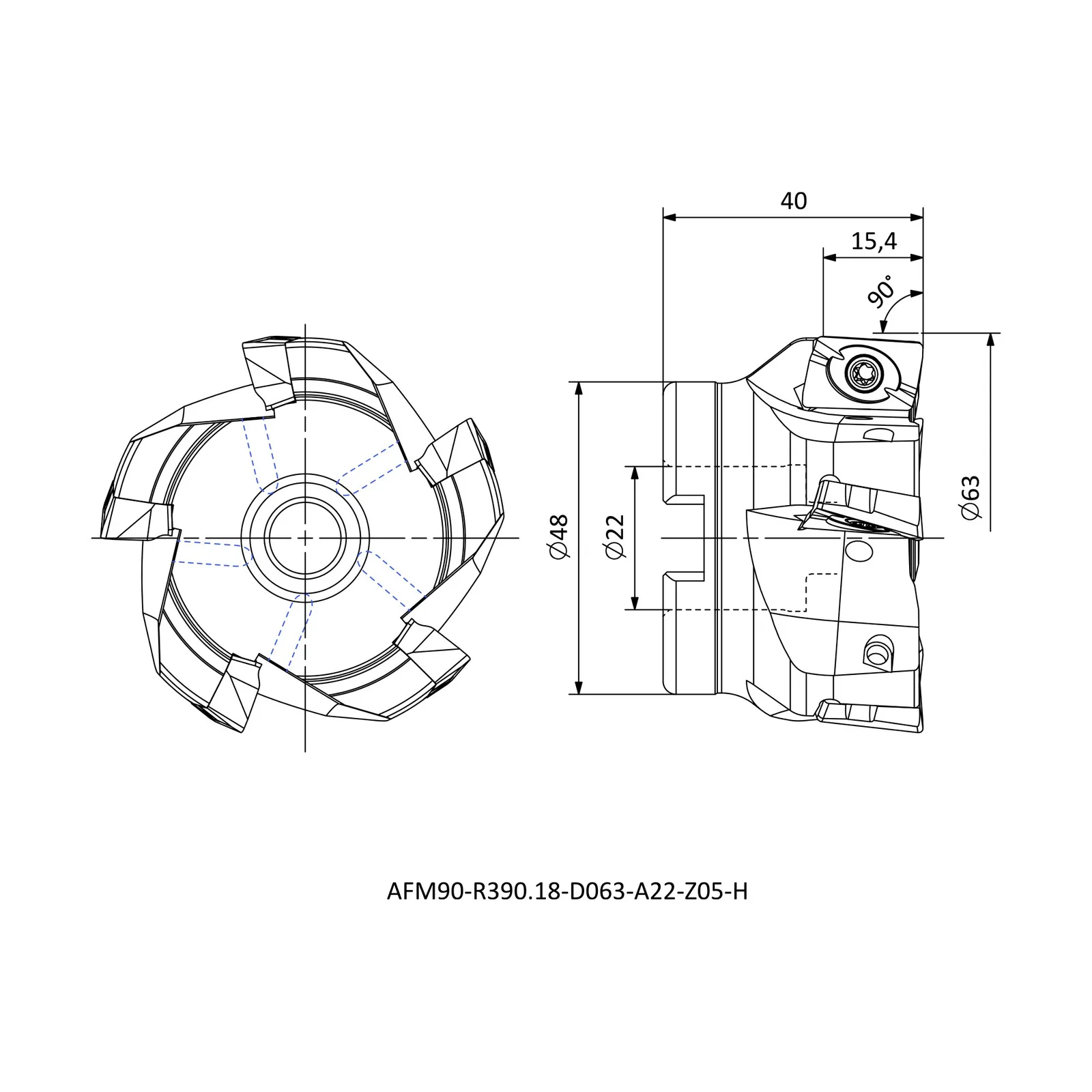

Specifications — AFM90-R390.18-D063-A22-Z05-H
| Insert Code | Insert designation | R390-1806.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 63 |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 15.4 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
