Tool Holders / Face Milling (ARBOR Type)
AFM90-TNG10-D063-A22-Z06-H
AFM90-TNG series · see all 23 sizes
Insert compatibility
This size is built for the insert designation TNG 10 (as listed in the catalogue data).

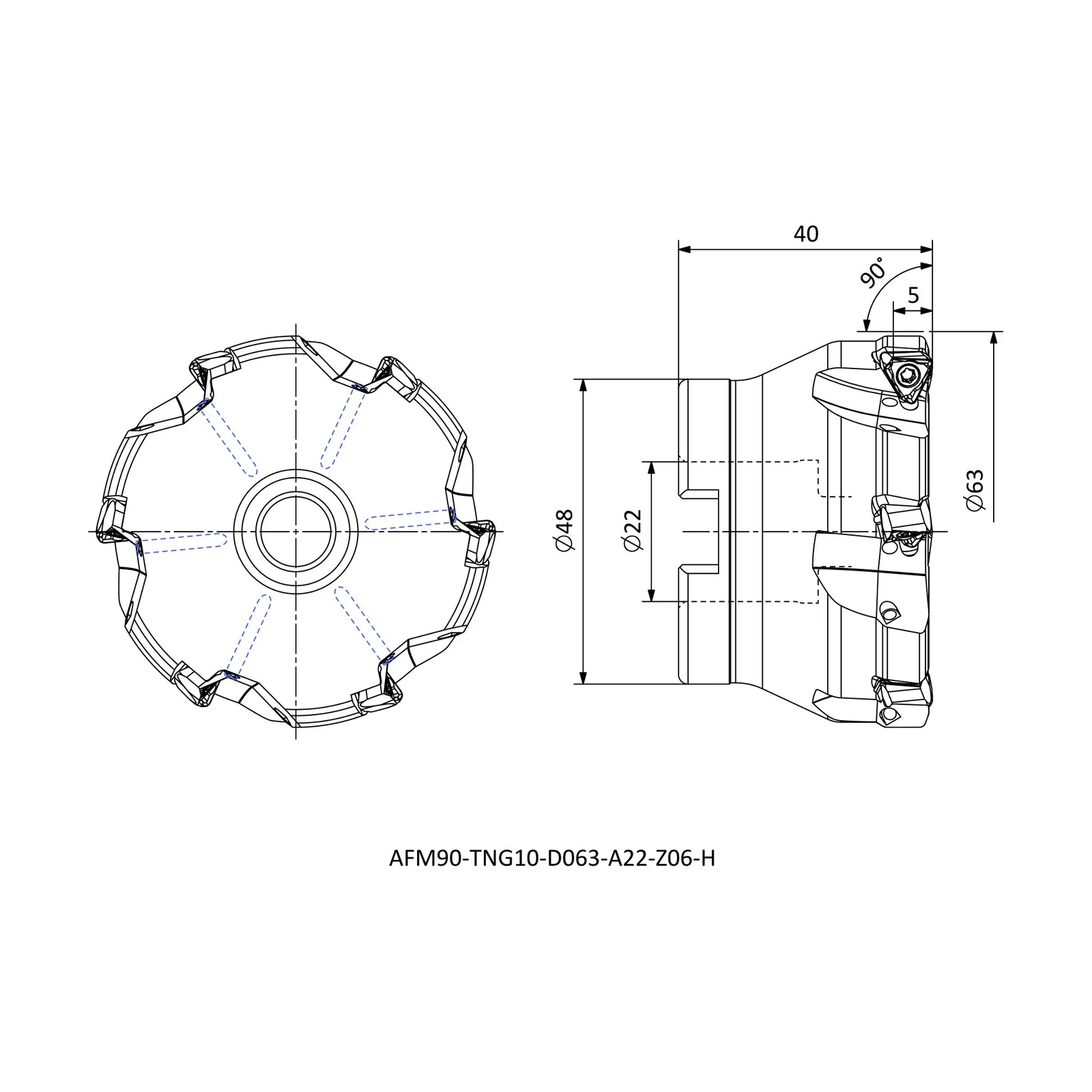

Specifications — AFM90-TNG10-D063-A22-Z06-H
| Insert Code | Insert designation | TNG10 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 63 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 23 sizes in AFM90-TNG
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM90-TNG10-D040-A16-Z04-H | R | 40 | 16 | 40 |
| AFM90-TNG10-D040-A16-Z06-H | R | 40 | 16 | 40 |
| AFM90-TNG10-D050-A22-Z05-H | R | 50 | 22 | 40 |
| AFM90-TNG10-D050-A22-Z07-H | R | 50 | 22 | 40 |
| AFM90-TNG10-D063-A22-Z06-H | R | 63 | 22 | 40 |
| AFM90-TNG10-D063-A22-Z09-H | R | 63 | 22 | 40 |
| AFM90-TNG10-D080-A27-Z10-H | R | 80 | 27 | 50 |
| AFM90-TNG16-D040-A16-Z03-H | R | 40 | 16 | 40 |
| AFM90-TNG16-D040-A16-Z04-H | R | 40 | 16 | 40 |
| AFM90-TNG16-D050-A22-Z04-H | R | 50 | 22 | 40 |
| AFM90-TNG16-D050-A22-Z05-H | R | 50 | 22 | 40 |
| AFM90-TNG16-D063-A22-Z04-H | R | 63 | 22 | 40 |
| AFM90-TNG16-D063-A22-Z06-H | R | 63 | 22 | 40 |
| AFM90-TNG16-D080-A27-Z05-H | R | 80 | 27 | 50 |
| AFM90-TNG16-D080-A27-Z07-H | R | 80 | 27 | 50 |
| AFM90-TNG16-D100-A32-Z06-H | R | 100 | 32 | 50 |
| AFM90-TNG16-D100-A32-Z08-H | R | 100 | 32 | 50 |
| AFM90-TNG16-D115-A32-Z06-H | R | 115 | 32 | 50 |
| AFM90-TNG16-D125-A40-Z07-H | R | 125 | 40 | 63 |
| AFM90-TNG16-D125-A40-Z09-H | R | 125 | 40 | 63 |
| AFM90-TNG16-D140-B40-Z08-H | R | 140 | 40 | 63 |
| AFM90-TNG16-D160-C40-Z10-H | R | 160 | 40 | 63 |
| AFM90-TNG16-D175-C40-Z10-H | R | 175 | 40 | 63 |
