Tool Holders / Helix Chamfer Milling Tools
AHM75-AP16-D35x50-A22-Z0306-H
AHM series · see all 5 sizes
Insert compatibility
This size is built for the insert designation AP.. 1604 (as listed in the catalogue data).

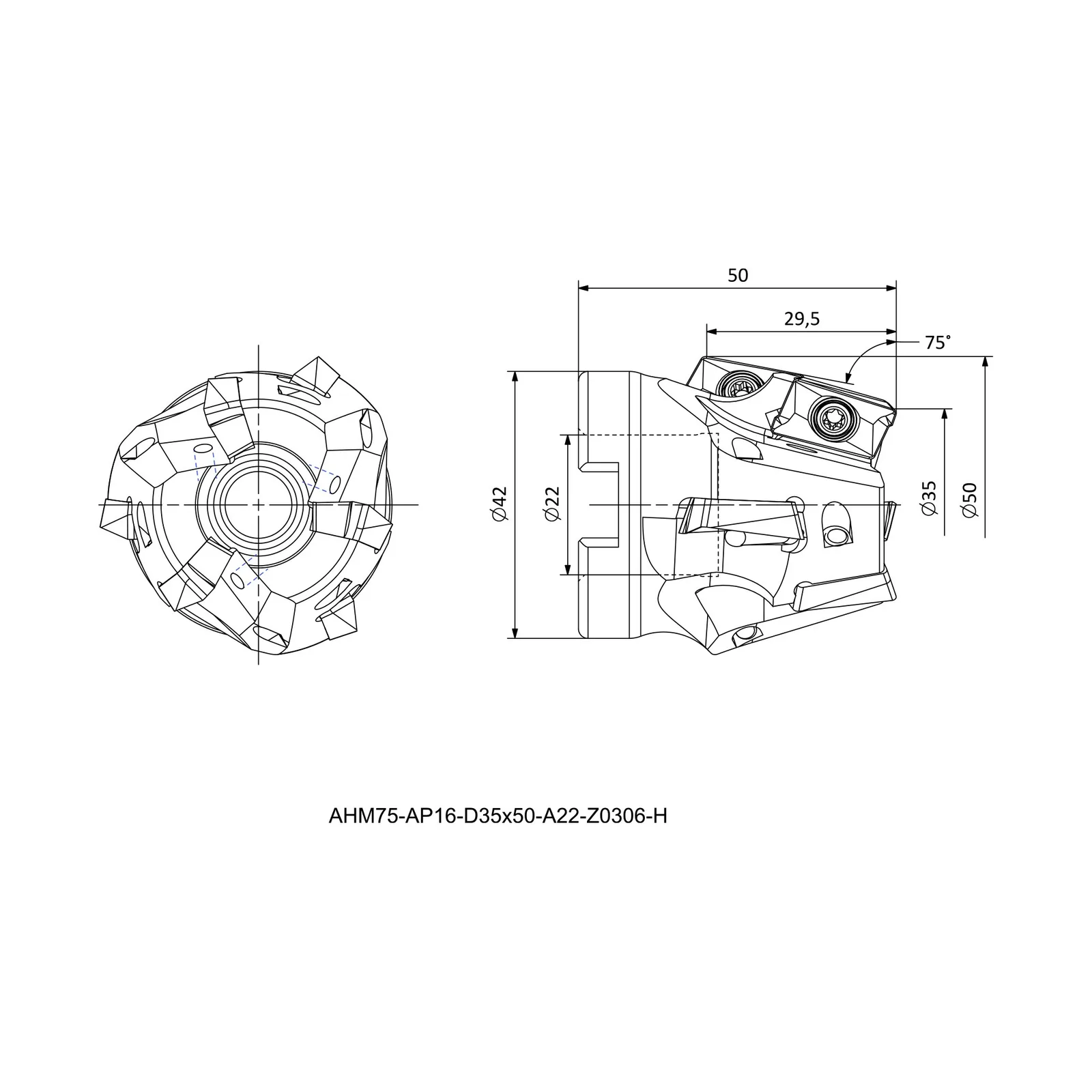

Specifications — AHM75-AP16-D35x50-A22-Z0306-H
| Insert Code | Insert designation | AP.. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 35 |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 50 |
| KAPR | Tool cutting edge angle (deg) | 75 |
| DCX | Maximum diameter (mm) | 50 |
| APMX | Depth of cut, maximum (mm) | 29.5 |
| ZEFP ETKILI | Effective cutting edges | 3 |
| ZEFP Toplam | Total cutting edges | 6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AHM
